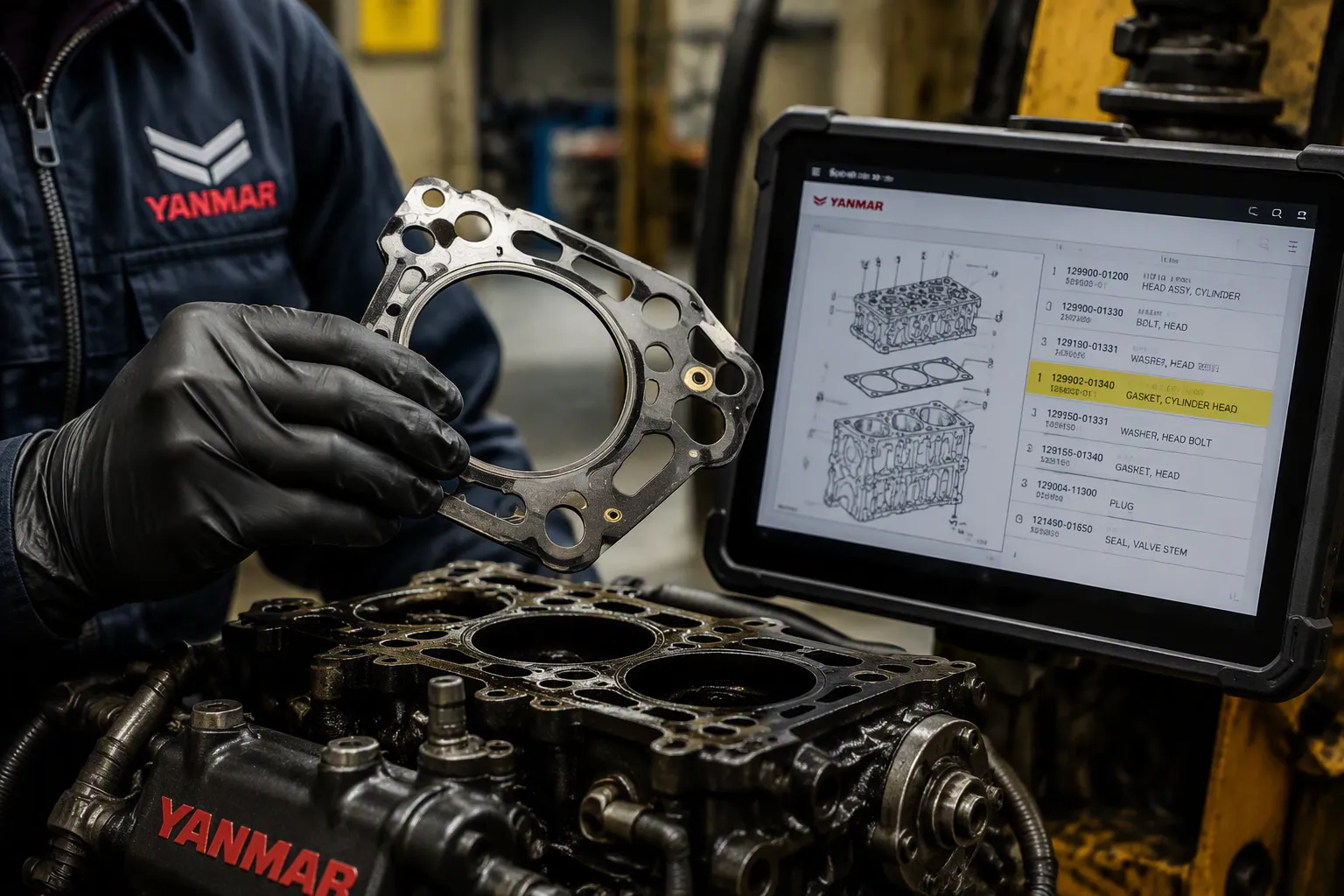

A broken part stops your excavator right away. The downtime upsets you, and the repair bill can grow quickly. Finding the right yanmar excavator engine parts does not have to be a problem. You just need to follow a clear process.
First, find your machine model. Next, locate the engine serial number. Then, use parts catalogs to match the correct component. Finally, check fitment with a supplier before you buy.
Being accurate at each step saves you time and money. A wrong part means more waiting and another shipping cost. The right part keeps your machine running reliably for years.
Key Takeaways
Start by finding your machine model and engine serial number. These numbers help you order the right part.
Know your engine model code. It tells you the cylinder count, series, and displacement.
Look up your numbers in Yanmar parts catalogs to find the correct part. Make sure the part number matches your serial number range.
Talk to authorized dealers or trustworthy aftermarket suppliers. They can check that the parts will fit before you buy.
Always make sure the part works with your exact engine. Give the seller your model, serial number, and old part number.
Locating Model and Serial Numbers
You cannot order the right part without the right numbers. The model and serial numbers tell you exactly which yanmar excavator engine parts fit your machine. Start by finding two key pieces of information: the machine ID plate and the engine serial number.
Finding the Machine ID Plate
The machine ID plate sits close to the cab or on the frame. On Yanmar mini excavators, including the ViO series, you will find this plate on the right or left side of the front face of the machine, below the operator’s compartment. For 2014 and newer models, the plate is on the left side (highway) of the knuckle boom. The plate may be a metal tag or a foil label. This location applies to all listed models, including the ViO20, ViO35, ViO55, and others such as the B2, B5, SV08, B3, ViO17, ViO27, ViO45, ViO80, SV100, ViO20-3, ViO25-6, ViO27-5B, ViO35-6, ViO45-6A, ViO55-6A, ViO80-1, SV08-1A, and SV100-2. No model-specific variations exist for this plate location. Write down both the model number and the serial number from this plate. You will need them for every parts search.
Locating the Engine Serial Number
The engine serial number is essential for identifying the correct component. You can find this number stamped on the engine block if the tag on the valve cover is missing or unreadable. Yanmar stamps or plates these numbers directly on the engine block, not on the machine frame. Here is where to look:
On TNV and TNE series engines, the plate is typically on the left or right side of the block facing the flywheel end.
On 3TNV and 4TNV engines specifically, look to the upper-left.
Some production runs have the serial number stamped directly into the casting rather than on a separate tag.
Clean the area around the block before you look. Dirt and grease can hide the stamping. Use a flashlight and a wire brush to reveal the numbers. Take a photo of the stamping with your phone. This photo helps you double-check the number later. The engine serial number confirms the exact production run of your engine. Yanmar builds different part variants for different runs. A part that fits one 3TNV88 engine may not fit another. The serial number removes that guesswork. You now have both numbers ready. The next step is to decode what they mean.
Decoding Yanmar Engine Model Numbers
Understanding Engine Nomenclature
Yanmar engine model numbers use a clear naming system. You can read them just like a code. Let’s look at the model 3TNV88 as an example. The first number shows the cylinder count. Here, the engine has three cylinders. The letters TNV tell you the engine series. The last number, 88, shows the engine displacement and generation within that series.
Now check out 4TNV98C. The 4 means four cylinders. The TNV series is still the same. The 98 shows a bigger displacement than the 88. The letter C at the end marks a certain variant or emission tier. Another example is 4TNE106. The TNE series is different from TNV. The 106 points to a different displacement class. These small differences matter when you order yanmar excavator engine parts. A part for a 3TNV88 will not fit a 4TNV98C. The cylinder count and series change the block, head, and internal components.
Why Serial Numbers Matter
The engine model gives you the general family. The serial number narrows it down to your exact build. Yanmar makes different part variants within the same model family. A part that fits one 3TNV88 engine may not fit another. The serial number takes away that guesswork.
To find the correct replacement parts for a Yanmar diesel engine, you’ll need the engine model number (such as 3TNV88, 4TNV98C, or 4TNE106), the engine serial number located on the engine data plate, and the part number from the failed or worn component if one is available. The engine model will tell you the cylinder count and general series, while the serial number allows for more precise part matching within a model family.
Suppliers also use your machine model and serial number to check compatibility. Each request is reviewed using machine model details, serial numbers and OEM cross-referenced data to confirm compatibility before sourcing. Giving the machine model and serial number helps verify compatibility and makes sure the correct component is matched to your equipment. This step protects you from ordering a part that looks right but fits wrong.
Using Parts Catalogs and Manuals
You now have your model and serial numbers. It is time to match them to the right parts. Yanmar parts catalogs have detailed diagrams and full part lists. These documents link your numbers to the actual components.
Navigating Online Diagrams
Yanmar offers free parts catalogs on its official website. The Europe page gives genuine parts data. The Global page has downloadable catalogs and manuals for construction equipment worldwide. Both sources give you accurate diagrams.
To find the right catalog, follow these steps:
Pick “Construction Equipment” from the dropdown menu.
Type your machine model number in the search field.
Look over the list of documents available for your model.
Pick the parts catalog entry that matches your model and serial number range.
Click the download link to save the PDF file.
When you open the catalog, you see exploded-view diagrams sorted by system. Each section covers a certain area like the engine, hydraulics, or undercarriage. Every diagram has a figure number and a revision date. Each numbered callout links a component to its official part number in the listing.
Reading Part Numbers
Start by collecting the right information. You need your machine or engine model number, the Yanmar serial number, and the old OEM part number from the failed component. Photos of the machine, engine, or part help confirm what you see. Identification tags and casting numbers give extra confirmation.
Open the catalog section for the system you are working on. For a cylinder head gasket, go to the engine assembly section. Find the part in the diagram and note its callout number. Look up that number in the parts listing below the diagram. The listing gives you the official Yanmar part number, the description, and the quantity. If you do not have the old part number, use the diagram to spot the component by sight.
Check the part number against your engine serial number range. Catalogs note which serial number ranges use which version of a part. This step stops you from ordering the wrong component. Older or gray-market equipment may need dealer help to confirm compatibility.
This process helps you find the right yanmar excavator engine parts for your machine. A few minutes with the catalog saves hours of dealing with a wrong shipment.
Consulting Dealers and Specialists
You have your model number, serial number, and catalog diagrams. Now you need a trusted place to buy the part. There are two main choices: authorized dealers and aftermarket suppliers. Each option has good points and bad points.
Contacting Authorized Dealers
Genuine Yanmar parts are made with high precision. This product line includes service kits, lubricants, grease, paint, pins and bushings, engine parts, seals and seal kits, and filters. Authorized dealers keep these items in stock and give full technical help.
You can find genuine Yanmar parts for mini excavators from authorized dealers and online groups. Start by checking online directories that list certified dealers with good reputations. Read reviews and user experiences to see how reliable and helpful a dealer is. Look for certification marks on parts and paperwork from trusted suppliers to check if they are real. Check supplier credentials and pick those with a proven record. Gather reviews from industry experts to judge parts quality and avoid fake parts.
Only buy Yanmar Genuine parts from a local authorized Yanmar dealer. Use Yanmar’s official Network Page to find the nearest local dealer. Know that Yanmar can only confirm that authorized dealers are trained and set up for Yanmar engine repairs. Authorized Yanmar dealers use Genuine Yanmar Parts, which other dealers cannot get. Using a non-Yanmar dealer and non-Yanmar parts might void part or all of your warranty.
Working with Aftermarket Suppliers
Reliable aftermarket parts come from specialized suppliers and online forums. These options often cost less at first. But quality and fit can be different.
Attribute | Genuine Yanmar (OEM) Parts | Non-OEM Aftermarket Parts |
|---|---|---|
Manufacturer | Yanmar (OEM) | Third-party companies |
Quality / Fit | Made to original standards; exact fit | Not consistent; may need changes and might not fit |
Warranty Coverage | Full OEM support (usually 12+ months) | Limited or none; can void the OEM warranty |
Price | Highest | Lower upfront cost |
Support / Service | Full dealer and tech support | Depends on supplier; often little tech support |
Best Use Case | Critical parts, new/high-value machines, warranty protection | Non-critical fixes, older/budget equipment, cost-sensitive jobs |
For critical engine and drive parts, the small extra cost of genuine Yanmar parts often outweighs the risk of costly downtime or warranty loss. These parts are made to work perfectly with Yanmar systems, saving you hidden costs and trouble later.
Warranty risk is a big deal for fleets. Professional and business users always stress that staying with OEM rules saves money on high-value gear, especially when resale or service records matter. Quality concerns separate buyers into groups. Many one-off buyers in rural or DIY markets only buy aftermarket parts after checking fit and reading technical guides. A common complaint is inconsistent specs that need extra machining or adaptation.
Verifying Yanmar Excavator Engine Parts Fitment
You have the model number and serial number. Now you need to confirm fitment before you place the order. This final step protects you from receiving a component that looks correct but does not fit your engine. Parts specialists use several methods to cross-reference your information. Your job is to give them the right details and ask the right questions. Investing time in verification prevents costly ordering mistakes.
Cross-Referencing OEM and Aftermarket
Parts specialists follow a structured process to verify that a replacement component matches your engine. When you supply an existing part number, they decode it to confirm the assembly category. Here is the typical workflow:
Decode the part number structure. The prefix shows the part group, like fuel or cooling. The middle part tells the engine model group. The suffix letter or dash marks a change or region. For 129900-52100, the first digits 1299 point to fuel parts for many TNV models. The last digits show the exact pump type.
Find the engine series code on the engine data plate. Use the code 4TNV98, not just the machine brand. Many machines use Yanmar engines inside. The brand alone does not guarantee the right part.
Avoid common errors. Do not order by machine brand only. Do not think part numbers work between different engine series, like TNE to TNV. Do not ignore suffix letters that tell apart items like a 12V or 24V alternator.
For large orders, ask suppliers for size inspection reports and cross-reference documents. This step lowers fitment risk when you buy many parts at once.
You can apply this same logic on your own. Take the old part number from the failed component. Look at the prefix to understand the system. Compare the engine series code against your engine data plate. A matching suffix letter signals a good fit. When you work with a supplier, provide the engine model, serial number, and old part number together. This gives the specialist the full picture. For yanmar excavator engine parts, this approach prevents the most common ordering errors.
Confirming Compatibility Before Purchase
The final check happens right before you pay. Third-party parts dealers emphasize that the engine serial number is essential for correct fitment. While the old part number often works when ordering a new part, only the serial number provides complete certainty that the new parts match your specific engine.
Before you finalize the order, double-check these details:
Engine serial number: Yanmar manages parts by serial number. This gives full accuracy for fitment. Always confirm the listing matches your serial number range.
Old part number: Having the old part number helps. But without the serial number, it may not guarantee perfect fit. Use both numbers together for the best result.
Engine model: Confirm the listing shows the correct engine series, such as 3TNV88 or 4TNV98C.
Variant details: Check for suffix letters or special marks that show a specific version. A small letter change can mean a different alternator voltage or injector type.
Ask the supplier directly if the part matches your serial number. Many suppliers have internal systems that check this for you. If you receive a vague answer, ask for clarification before you pay. A few extra minutes of verification save you the cost of return shipping and the lost time from waiting for a replacement. By following this process, you ensure every yanmar excavator engine parts order matches your machine exactly.
You now know the important steps for finding the right part. Find your model and serial numbers. Figure out what the engine code means. Look through the parts catalogs. Check the fit with a specialist. Each step builds on the one before it.
Take time to confirm your model and serial number. This one habit stops costly ordering mistakes. A wrong part means more downtime and another shipping bill. Being accurate pays off.
When you are not sure, ask a professional parts specialist for help. YNF Machinery offers reliable yanmar excavator engine parts and expert guidance. Their team checks your numbers against OEM data. You get the right part for the job.
FAQ
Where can I find the engine serial number on my Yanmar excavator?
Look on the engine block itself. Yanmar stamps the number on the block, not on the machine frame. On TNV and TNE engines, check the left or right side near the flywheel end. Clean the area first, then use a flashlight.
What should I do if the engine data plate is missing or unreadable?
You can still find the serial number stamped into the engine block casting. Use a wire brush to clean off dirt and grease. Take a photo of the stamping for your records. If the number is still unclear, contact an authorized dealer for help.
Are aftermarket Yanmar excavator engine parts safe to use?
Aftermarket parts cost less upfront. Quality and fit vary by supplier. For critical engine and drive parts, genuine Yanmar parts offer an exact fit and full warranty support. Aftermarket options work well for non-critical fixes on older or budget equipment. Always check fitment before buying.
How do I confirm a part fits my specific engine?
Give your supplier the engine model, serial number, and old part number together. The serial number gives the most accurate fit. Ask the supplier directly if the part matches your serial number range. Ask for more details before paying if the answer seems unclear.
What information should I have ready when contacting a parts supplier?
Gather your machine model number, engine model, engine serial number, and the old part number from the broken part. Photos of the machine, engine, and part help confirm details. Identification tags and casting numbers give extra proof. This information speeds up the ordering process.
