Major fluid leaks in your hitachi zx450lc-3 ruin machine performance. You must check your hitachi zx450lc-3 right away to stop losing pressure. Replacing seals on time protects important hitachi zx450lc-3 inner parts. You fix your hitachi zx450lc-3 faster by inspecting cylinder seals directly. Main pressure in your hitachi zx450lc-3 stays strong with quick problem-solving. Buying top zx450lc excavator parts from YNF Machinery ensures good quality for your machines. High-grade hitachi zx450lc-3 parts last a very long time. You get less downtime because these pieces resist wear and tear. Proper care keeps your hitachi zx450lc-3 working hard. Prevent sudden breakdowns by installing strong hydraulic parts today. Your excavator stays busy on every job site.
Key Takeaways
Inspect your excavator every day to find oil leaks and catch inner cylinder movement quickly.
Pick top-grade seal kits made from tough materials like NBR, FKM, and PTFE to fight strong damage.
Let out all fluid pressure in the system before taking parts apart to stay safe during repairs.
Release trapped air from system cylinders after putting in new seals to bring back full digging power.
Signs of Hydraulic Seal Failure in Hitachi ZX450LC-3
Identifying Leaks and Drift in Cylinder Excavator Parts
You check your hitachi zx450lc-3 every day to spot fluid leaks on major mechanical parts. Damaged rubber rings let oil seep past the boom arm, stick cylinder, and bucket linkage. You might also spot oil film near swing motor parts and travel motor drives. Bad seal faces let hydraulic oil leak around sliding components.
A pressure gauge helps you easily find the exact reason for machine drift.
Cylinder drift shows that fluid is leaking internally inside your hitachi zx450lc-3 arm system. Hydraulic oil slips past piston rings inside the cylinder tube without any operator input. You can track this drift by following these basic testing steps:
Position the Ram: Move the boom and bucket parts right to the height where drift happens.
Isolate the Ram: Unhook and cap every hydraulic line using safe work habits.
Observe: Check the boom cylinder shaft carefully to confirm inner fluid leaks across the piston.
When the arm falls during this test, bad rod seals are causing your pressure loss.
Detecting Hydraulic Pressure Drop and Contamination
A damaged seal makes your hitachi zx450lc-3 system lose hydraulic power very quickly. The main hydraulic pump loses operating force as oil leaks past inner piston rings. You will see slow boom responses even while running the engine at full speed. Low digging power at your bucket teeth points directly to bad internal leaks.
Cause of Drift | How it Relates to Measurement/Diagnosis |
|---|---|
Internal leak (fluid bypassing piston) | Causes pressure loss; found using a simple hydraulic drift test. |
Contaminated fluid (dirt, water, air) | Ruins seals and creates leaks; found with fluid tests and seal checks. |
Excessive heat | Makes seals brittle and fail; found by checking temps and seal wear. |
Research shows that around 70% of hydraulic actuator issues come from dirty hydraulic oil. Small dirt specs scratch the surfaces inside your hitachi zx450lc-3 hydraulic parts. These pollutants wear down key hydraulic pumps, main control valves, and final drive motors. Clean fluid shields internal gears and metal parts from fast mechanical wear. Checking your hitachi zx450lc-3 parts often stops sudden machine breakdowns on the job. Swapping out old hitachi zx450lc-3 excavator parts keeps full operating power for all hitachi zx450lc-3 functions. Keeping these hitachi zx450lc-3 parts safe helps your whole machine run well. You also save key frame parts, drive shaft parts, and heavy metal frames from dangerous stress.

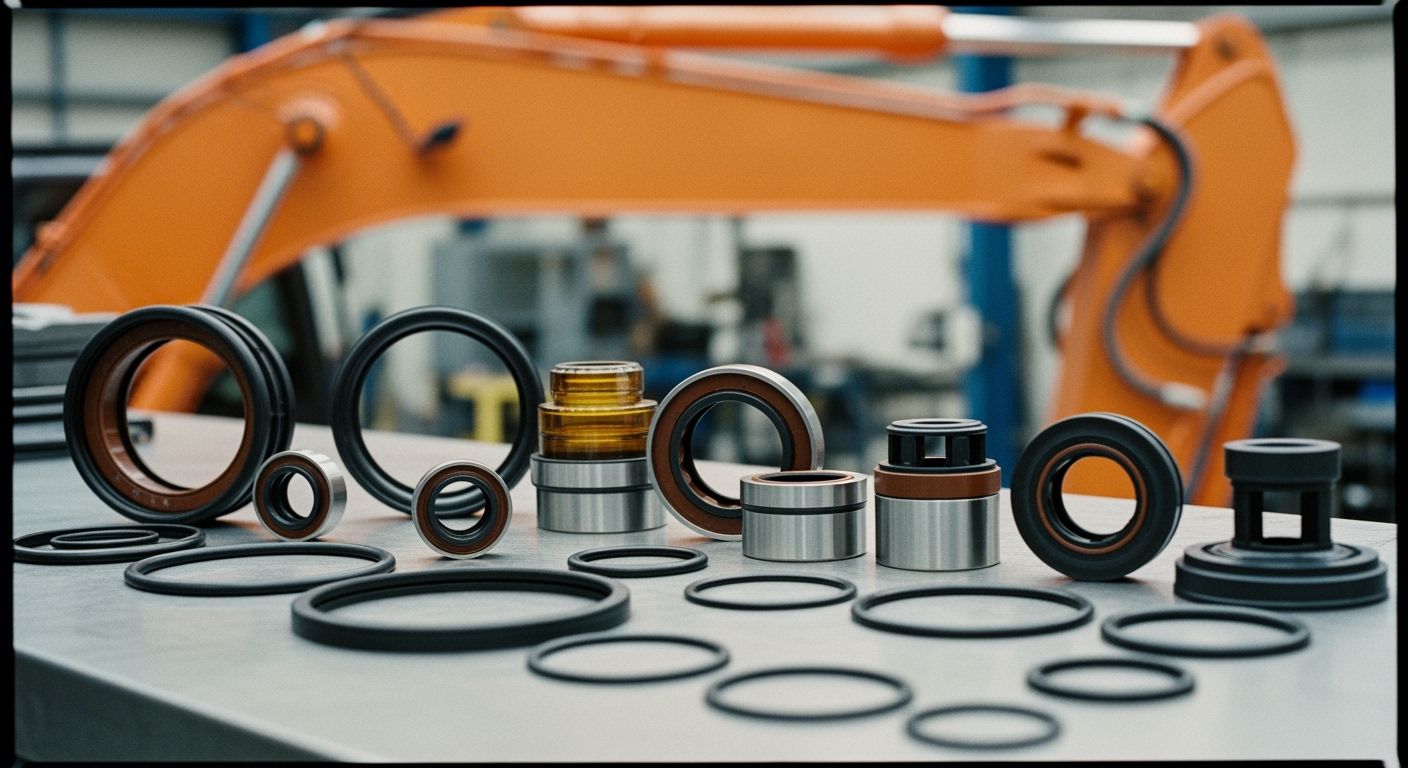

Selecting Hydraulic Cylinder Seal Kits from YNF Machinery
Material Specs for Heavy-Duty Excavator Seal Kits
YNF Machinery offers 35 years of experience with heavy equipment parts. Every kit uses special materials to help your machine run great. Standard NBR rubber handles normal mineral oil setups well. FKM material stands up to high heat near the engine. Low-friction PTFE makes movement extra smooth during tough jobs. This smart mix of materials protects your hitachi zx450lc-3 hydraulic components from heavy wear. You can easily safeguard your main hydraulic pump and internal components while digging.
Correct seal sizes ensure a snug fit that stops leaks. Proper measurements help absorb strong shocks during heavy lifting tasks. These seal components soak up sudden vibrations throughout your hitachi zx450lc-3 arm system. Strong seals keep dirty water away from vital internal components. High material standards help parts last much longer in rough places. Your hitachi zx450lc-3 bucket attachment keeps working smoothly under constant pressure.
Cost-Effective Solutions for ZX450LC Excavator Parts
Performance Aspect | YNF Machinery Kits | OEM Parts |
|---|---|---|
Fit and Compatibility | Precise fit for heavy applications | Engineered for hitachi zx450lc-3 |
Material Quality | Durable NBR, FKM, and PTFE components | Withstands intense conditions |
Operational Efficiency | Minimizes friction and prevents misalignment | Boosts overall productivity |
Impact on Downtime | Addresses leaks to cut maintenance downtime | Minimizes equipment downtime |
You can manage job costs well without sacrificing good quality. Buying great zx450lc excavator parts lowers regular repair bills over time. Exact seal sizes improve power and stability for your hitachi zx450lc-3 setup. Good seals stop sliding metal cylinder parts from shifting out of place. Better seal choices mean you need fewer total repairs over time.
Choosing trustworthy zx450lc excavator parts stops sudden machine breakdowns. Using cheap seals leads to unexpected delays on busy work sites. Good replacement components hold steady pressure in your hitachi zx450lc-3 bucket linkage. High quality seals give your hitachi zx450lc-3 fleet the best value. Simple, timely repairs keep your hitachi zx450lc-3 working hard every day.
Step-by-Step Hydraulic Seal Replacement Guide
Depressurizing and Disassembling Excavator Hydraulic Cylinders
Before working on your hitachi zx450lc-3, you must follow basic safety rules. Park the machine on level ground and drop the boom down. Set the bucket linkage flat on the dirt, then shut off the motor. Move the control levers around to bleed off leftover fluid power. Carefully open the air cap on top of the oil tank. Let all trapped power out so nobody gets hurt during repairs. Taking off pressurized hoses can cause severe accidents on the job site.
Always release residual fluid force completely before loosening hose fittings or removing pin retainers.
Next, get ready to take the cylinder assembly off your hitachi zx450lc-3. Hook up a strong hoist to hold the heavy parts securely. Unhook every metal line carefully, then cap the open ends. This keeps dirt from getting into small inner passages. Knock out the main pins and carry the unit to your workbench. Unbolt the head gland with proper tools and pull the shaft out straight. Do not hit smooth metal against sharp edges, and look for deep scratches inside the tube.
Cleaning, Oil Coating, and Seal Kit Installation
Clean all internal parts completely with solvent.
Look over surfaces for wear, rough spots, or scratches.
Put fresh hydraulic oil on all new seals.
Fit flexible rubber rings smoothly into inner grooves.
Push the cylinder shaft straight into the main housing.
Good cleaning is the most important part of rebuilding hitachi zx450lc-3 parts. Wash all taken-apart metal pieces with clean solvent to remove dirt, sludge, and old rubber bits. Use clean, lint-free towels to dry every steel part. Dirt will ruin fresh rubber rings very fast. You need to put clean oil over inner surfaces while putting parts together. Spread oil on shiny piston rods and metal housing holes. This oil protects parts when you start the machine up again. Putting parts together dry creates hot friction and ruins new rubber edges right away.
You must swap out every single rubber ring when fixing this hitachi zx450lc-3 part. Always put in a new seal kit with fresh O-rings, backup rings, and wear strips. Never use old, stretched-out seals again. Worn parts let oil leak inside and drop system power. Put soft rubber rings into clean grooves without twisting them. Use smooth plastic tools so you do not cut the fresh rubber. Make sure directional seals and wipers face the right way. Fresh seals stop oil from leaking out during tough work.
To finish rebuilding your hitachi zx450lc-3 unit, tighten down the head gland assembly. Center the shaft inside the main outer tube correctly. Slide the head gland home without snagging any soft rubber edges. Tighten the bolts evenly using correct torque settings. Put the hydraulic unit back on your hitachi zx450lc-3 frame safely. Hook the lines back to the main control valve tightly. Fill the oil tank up to the right mark. Run the controls slowly to push trapped air out. Changing worn parts brings back full digging power to your hitachi zx450lc-3 excavator. Regular checks keep hitachi zx450lc-3 components from breaking early. Replacing old seals keeps heavy machines running well every day. Sealed parts last longer during tough jobs, and good care protects steel pieces. Straight parts prevent bad wear, while replacing weak seals saves your machine. Checking all taken-apart pieces guarantees a long working life, so proper care keeps your excavator running smoothly.
Post-Installation Testing and System Maintenance
Bleeding Air and Verifying Excavator Hydraulic Pressure
You must bleed trapped air out of your hitachi zx450lc-3 system right after finishing cylinder repairs. First, turn on the engine and let it run at a low speed. Move all cylinder controls very slowly, but do not push them all the way out yet. Trapped air inside new excavator components causes rough shaking and sudden power drops. Moving the cylinders back and forth several times clears out air pockets before heavy work starts.
Push each piston rod all the way out to release leftover air through the main valve. Next, check the system pressure near the main hydraulic pump using an accurate gauge. Proper oil flow shields new internal replacement parts from friction heat and heavy thermal stress. Setting the correct pressure stops unexpected downtime during normal work with your hitachi zx450lc-3 unit. Accurate pressure levels give you full power during tough digging jobs.
Routine Inspection Schedules for Peak Machine Longevity
Regular maintenance prevents sudden mechanical breakdowns on your hitachi zx450lc-3 machine. You should create simple daily habits to check all important working parts. Look at oil levels near extra hydraulic pumps and side lines every morning. Inspect outer rubber seals around the final drive unit to catch early oil leaks. Fixing tiny fluid leaks right away prevents expensive oil loss across your jobsite.
Complete all greasing and service tasks based on the total hours your machine runs. Clean dirty outer surfaces around all metal linkages before adding fresh grease. Plan regular oil checks to catch tiny metal flakes as early as possible. Clean fluid protects key hydraulic components from rough wear on the inside. Proper oil care keeps extra system parts working smoothly during long work shifts.
Replacing worn parts quickly keeps your hitachi zx450lc-3 fleet busy and making money. Good service records help machine managers lower wasted time on the jobsite. Daily care stops internal components from breaking down way too early. Keep track of new parts on every hitachi zx450lc-3 excavator in your shop. Careful visual checks protect your big hitachi zx450lc-3 equipment investment. Good maintenance keeps your hitachi zx450lc-3 working strong during tough jobs on your hitachi zx450lc-3 machine.
Finding fluid leaks early keeps your hitachi zx450lc-3 running safely. Buying strong replacement pieces prevents sudden machine breakdowns on the job. Swapping out worn seals carefully brings full power back to your hitachi zx450lc-3 components. Simple daily care shields all internal hydraulic hardware from costly damages.
Getting top zx450lc excavator parts from YNF Machinery helps lower your total repair bills. These strong pieces cut down on machine wear and stop costly delays at work. You get great customer support along with long-lasting performance from every dependable part.
Make your heavy equipment completely reliable starting right now. Reach out to YNF Machinery today to check fitment and order new parts for your hitachi zx450lc-3 fleet!
FAQ
How do you know when your machine needs a seal replacement?
Oil drips near the cylinders, swing motor, or travel motor show bad seals on your hitachi zx450lc-3. Arm drift also shows that inside seals are failing. Slow bucket moves and low digging power mean you are losing pressure. Swapping old seals early stops big breakages and brings back strong power.
What seal materials deliver the best performance for heavy digging jobs?
Top seal kits use NBR, FKM, and PTFE materials for tough jobs. NBR works very well with normal mineral oils. FKM handles high engine heat without getting hard or brittle. Smooth PTFE lets the shaft glide easily under heavy loads. Picking these good materials shields your zx450lc excavator parts during hard work.
Why must you depressurize hydraulic cylinders before starting repairs?
Trapped fluid pressure is very dangerous for anyone working on the machine. You stop sudden oil sprays by moving the control levers after turning off your hitachi zx450lc-3. Bleeding all pressure keeps you safe while taking parts apart. Following basic safety rules prevents bad accidents during normal cylinder repairs.
How often should you inspect cylinder seals on your excavator?
Look over your hitachi zx450lc-3 every morning before starting any work. You need to check shafts, hoses, and travel drives for fresh oil leaks. Checking parts regularly helps you spot broken pieces right away. Daily care keeps your oil clean and helps your hitachi zx450lc-3 run strong.
