Spider Assembly Description
The YNF16413 spider ass’y, equivalent to Komatsu part 56B-20-11910, is a vital universal joint component in the driveline of WA500-6 wheel loaders. It connects propeller shaft ends and enables the transmission of rotational torque between misaligned shafts. Constructed from heat-treated alloy steel, this spider is engineered to withstand the harsh loads, vibrhttp://spinder ass’yations, and torsion found in quarry, mining, and construction environments. The component includes precision-fitted needle bearings and greasing points for extended wear life. A critical spare for B2B parts suppliers, fleet managers, and equipment repair providers working on Komatsu loaders.
Spider Ass’y Technical Sheet
| Parameter |
Description |
| Machine Model |
Komatsu WA500-6 |
| OEM Part Number |
56B-20-11910 |
| YNF Part Number |
YNF16413 |
| Product Category |
Driveline / Propeller Shaft Components |
| Component Type |
Universal Joint Spider Ass’y |
| Material |
Forged alloy steel |
| Surface Treatment |
Heat-treated + Anti-corrosion coating |
| Greasing Mechanism |
Greaseable bearings included |
| Function |
Torque transfer with rotational alignment |
| MOQ |
2 Sets |
| Brand |
YNF |
| Origin |
China |
| Shipping Method |
Express, Air, Sea |
| Payment Terms |
T/T, L/C, Western Union |
Spider Ass’y 56B-20-11910 Applications
| Industry |
Application Description |
| Wheel Loader Maintenance |
Replacing worn u-joint spider assemblies |
| Construction Machinery |
Driveline repairs for torque stability |
| Quarry Equipment Service |
Replacing spider ass’ys under load stress |
| Spare Parts Resellers |
Stock item for Komatsu WA500-6 maintenance |

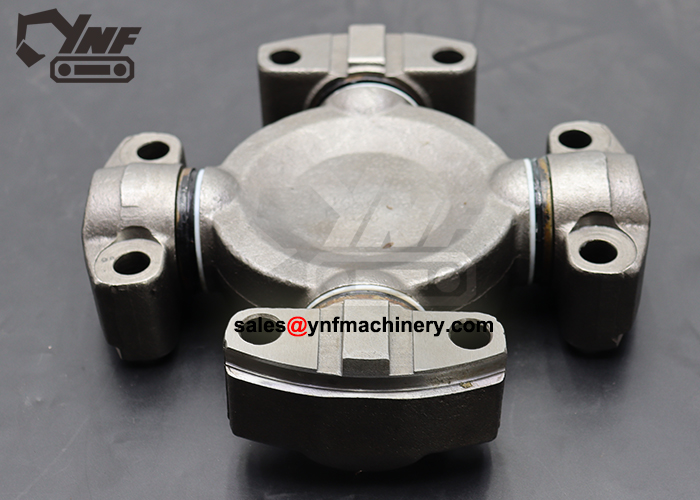

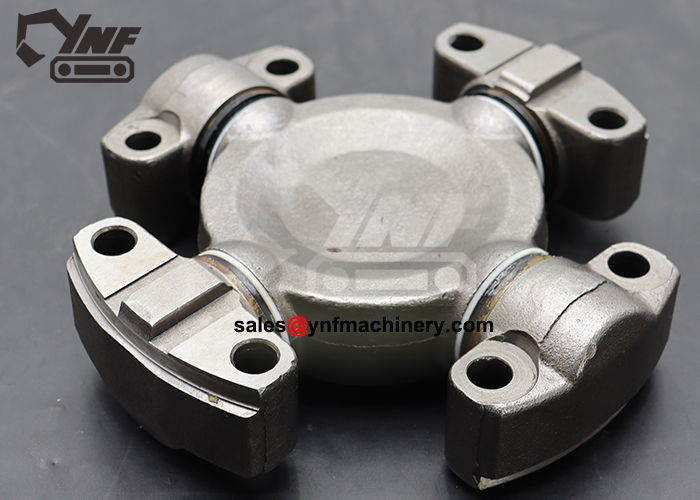

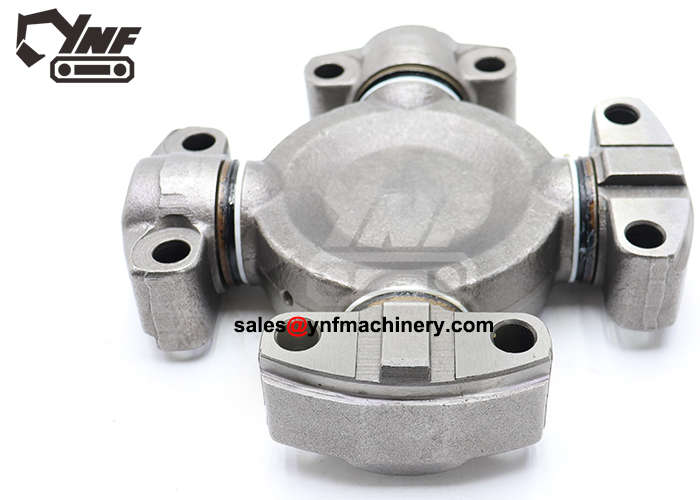

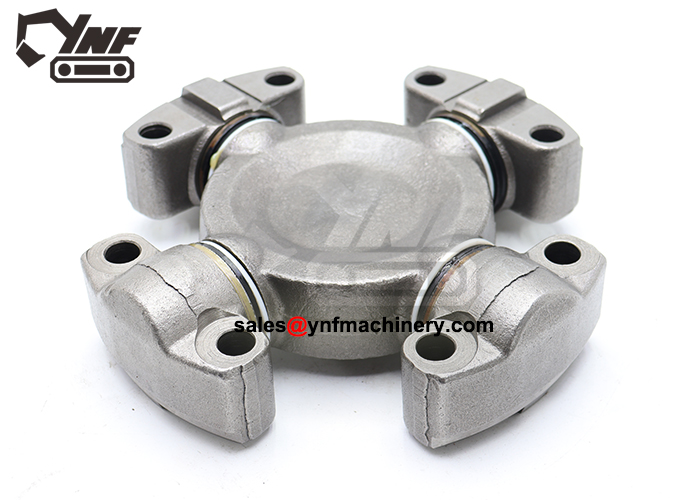

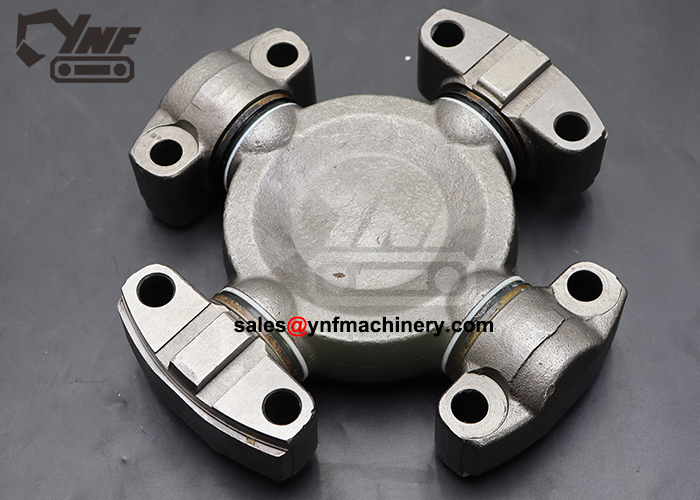

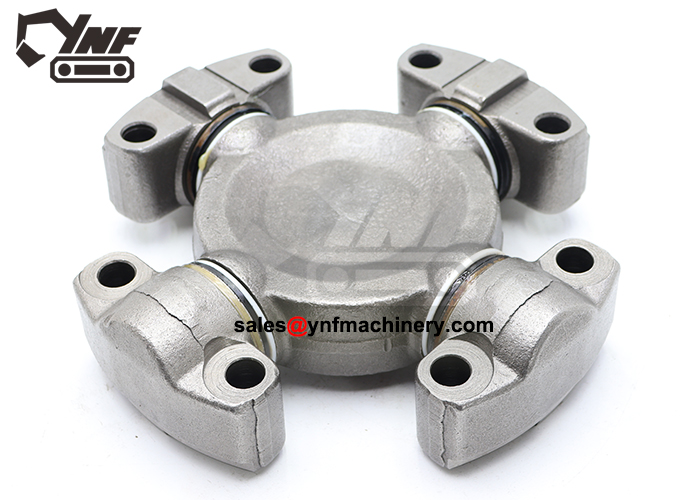

Spider Assembly YNF16413 Detail Display
Related Knowledge:
Related Products:
-
Propeller shaft for WA500 series
-
Driveline center bearing for Komatsu loaders
-
Rear axle differential gear set for WA500
FAQs:
-
Is this spider greasable?
Yes, includes lubrication channels and fittings.
-
How often should I replace the spider assembly?
Every 2,000–3,000 hours under heavy use, or as per wear condition.
