How to install an excavator oil dipstick elbow joint?
Installing an oil dipstick elbow joint in a Komatsu PC200-8 excavator involves several important steps to ensure proper alignment, sealing, and system integrity:
-
Preparation: Ensure the engine is off and cool. Clean the surrounding area of the oil tank inlet to prevent contamination.
-
Remove Old Elbow: If replacing an old elbow, carefully unscrew and remove it. Inspect the threads and sealing area for wear or residue.
-
Apply Sealant: Use thread seal tape or hydraulic-grade thread sealant on the male threads of the new elbow joint (YNF16752) to prevent leakage.
-

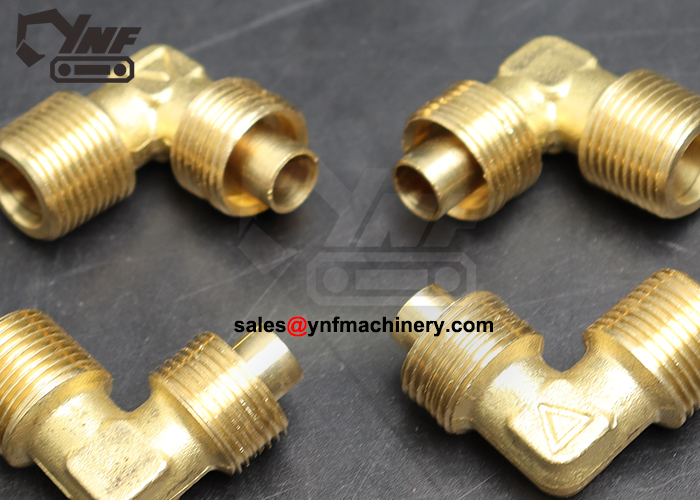

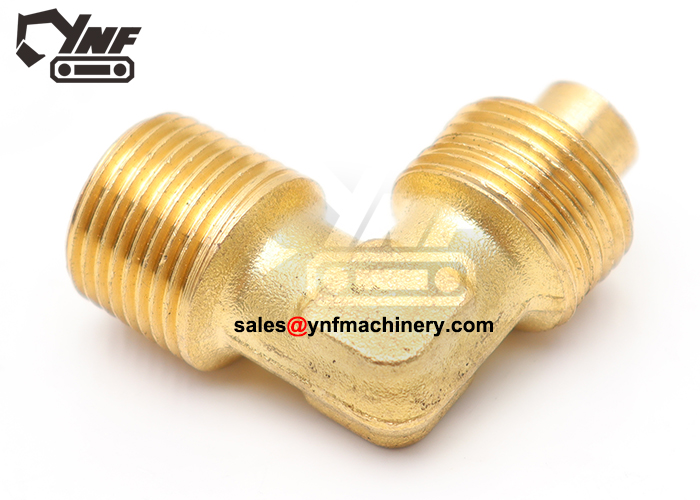

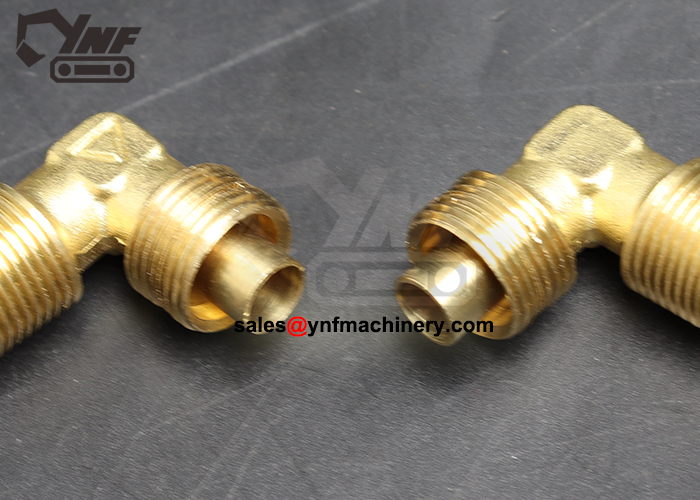

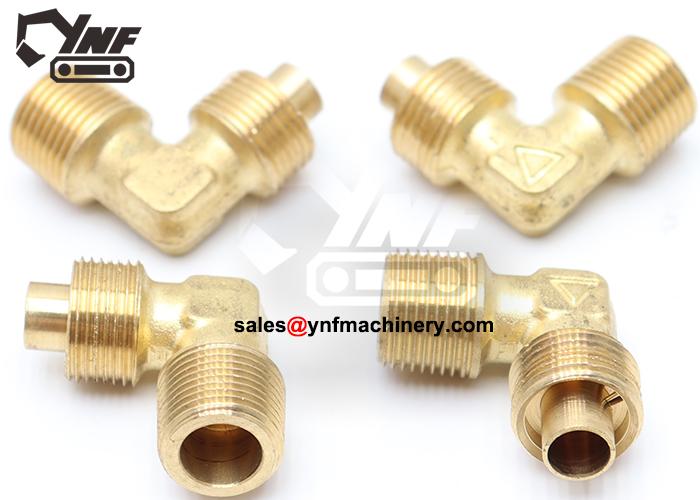

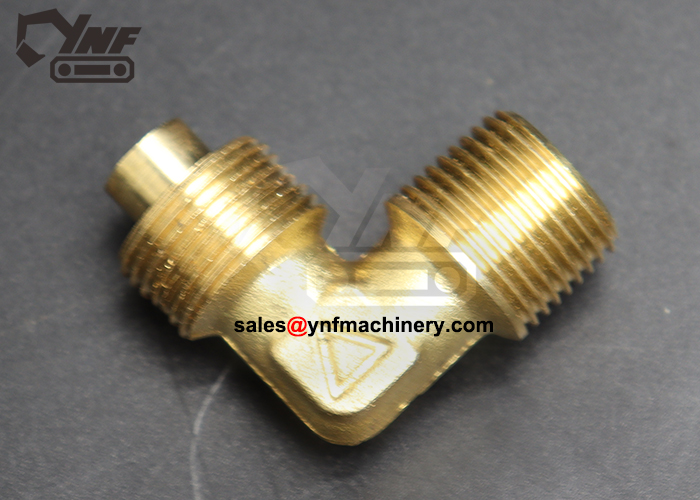

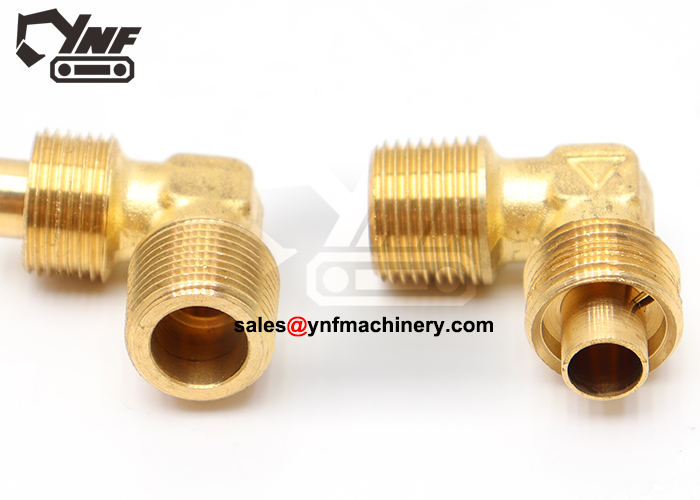

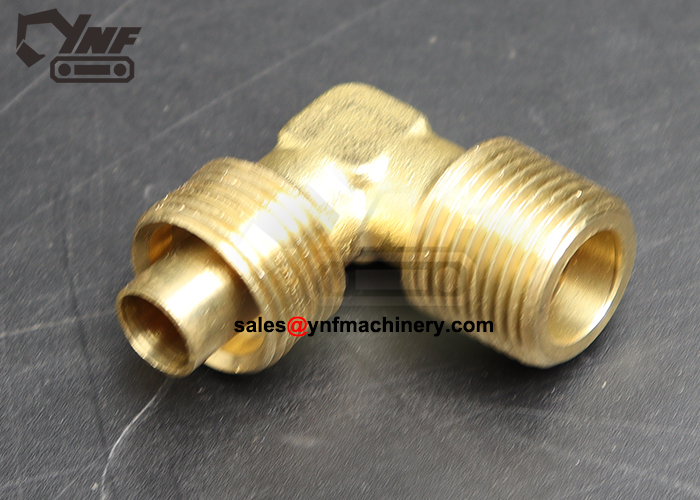

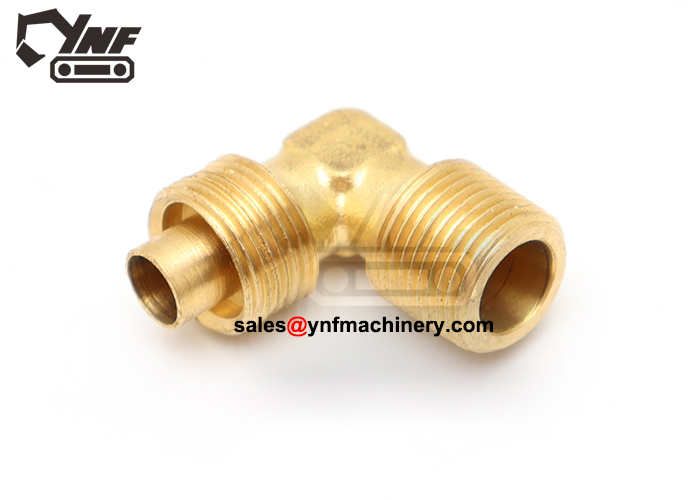

Install New Elbow: Align the new 203-60-31100 elbow joint with the tube and reservoir inlet. Hand-tighten initially, then use the appropriate tool to secure it snugly, avoiding over-tightening which may cause damage.
-
Connect Dipstick Tube: Attach the oil dipstick tube (e.g., YNF16751 / 203-60-31160) to the elbow outlet and tighten clamps or fittings as required.
-
Test for Leaks: Start the machine briefly and observe for oil leaks. Tighten further if necessary and verify oil levels for safety.
Proper installation ensures optimal oil monitoring and prevents operational downtime, making it crucial for equipment managers and maintenance teams in rental fleets or repair workshops.
Related Products
To complete the oil level monitoring and fluid management system on Komatsu PC200-8 excavators, YNF Machinery also recommends:
-
PC200-8 Oil Dipstick Tube (203-60-31160) – Ensures accurate oil measurement
-
PC200-8 Oil Tank Plug – Seals the tank and prevents contamination
-
PC200-8 Return Hose – Returns hydraulic oil efficiently to the reservoir
These products are fully compatible and often purchased together by B2B buyers for inventory stocking or full maintenance kits.
FAQs: Does this elbow fit all PC200-8 variants?
Q: Is the 203-60-31100 elbow compatible with all PC200-8 versions?
A: Yes, the YNF16752 elbow joint has been engineered to match the standard configurations of all Komatsu PC200-8 models, including sub-variants with minor layout changes. However, for customized or region-specific configurations, we recommend verifying the part number with your equipment’s service manual or contacting our support team for a fitment check.
Q: Can it be used with other Komatsu models?
A: This elbow is optimized for PC200-8. Compatibility with other models may vary and is not guaranteed unless cross-referenced.
