Flange Gear Hub Description
The YNF18405 flange coupling gear hub is a precision-engineered drivetrain component used in excavator and heavy machinery transmission systems. It functions as a coupling interface, transmitting torque between connected shafts while maintaining alignment stability.
Manufactured from high-strength forged steel, the hub is processed through CNC machining to achieve accurate dimensions including ID50-57, OD175.5, and height 75mm. The integrated 48×17 tooth structure ensures stable engagement and efficient torque distribution under load conditions.
A controlled heat treatment process increases surface hardness and fatigue resistance, allowing the component to withstand continuous vibration, impact load, and high torque environments. It is widely applied in construction machinery and industrial power transmission systems requiring reliable coupling performance.
Flange Coupling Gear Hub YNF18405 Technical Data Sheet
| Item |
Specification |
| Product Name |
Flange Coupling Gear Hub |
| YNF Number |
YNF18405 |
| Gear Structure |
48T × 17T |
| Inner Diameter (ID) |
50–57 mm |
| Outer Diameter (OD) |
175.5 mm |
| Height (H) |
75 mm |
| Material |
Forged Alloy Steel |
| Hardness |
HRC 45–55 |
| Processing |
CNC Precision Machining |
| Function |
Torque Transmission Coupling Hub |
| Application System |
Excavator / Industrial Drivetrain |
| Brand |
YNF |
| MOQ |
1 Piece |
| Origin |
China |
| Shipping Method |
Air / Sea / Express |
| Payment Terms |
T/T, Western Union, PayPal |
Flange Coupling Gear Hub Applications
| Industry |
Application Scenario |
| Construction |
Excavator drivetrain coupling system |
| Mining |
Heavy-duty equipment power transmission |
| Quarry |
Continuous material handling machinery |
| Industrial Machinery |
Shaft coupling and torque transfer systems |
| Repair Workshop |
Transmission system rebuilding |

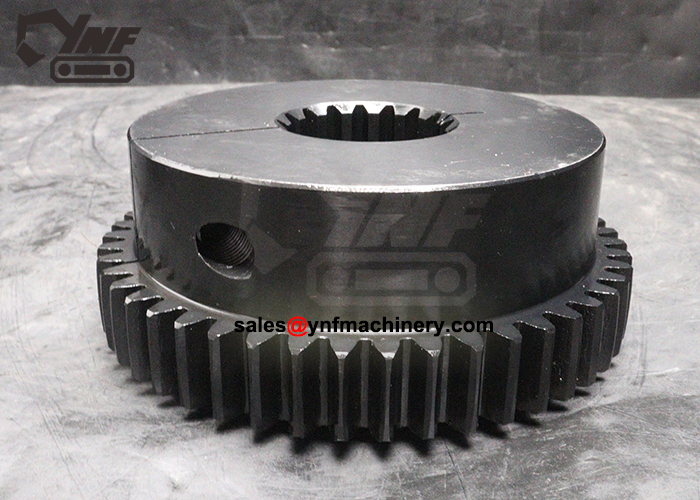

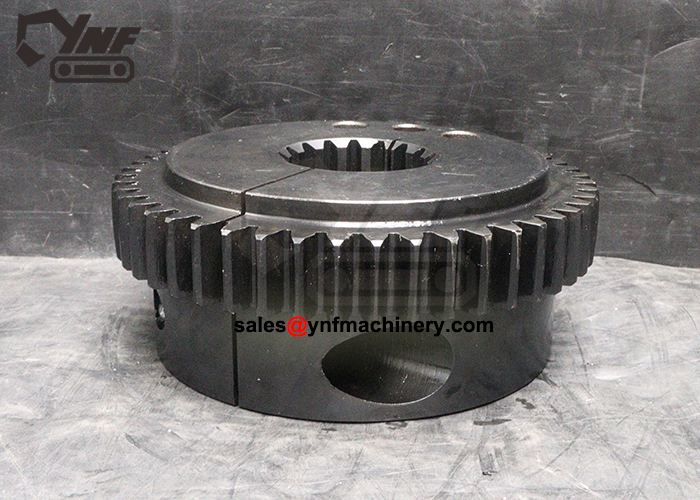

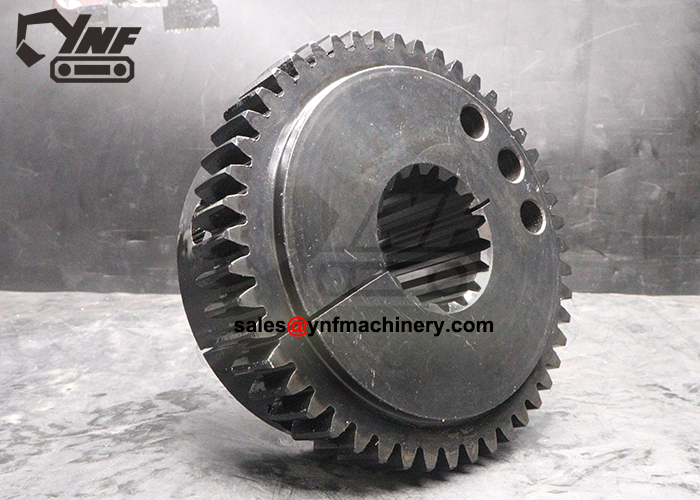

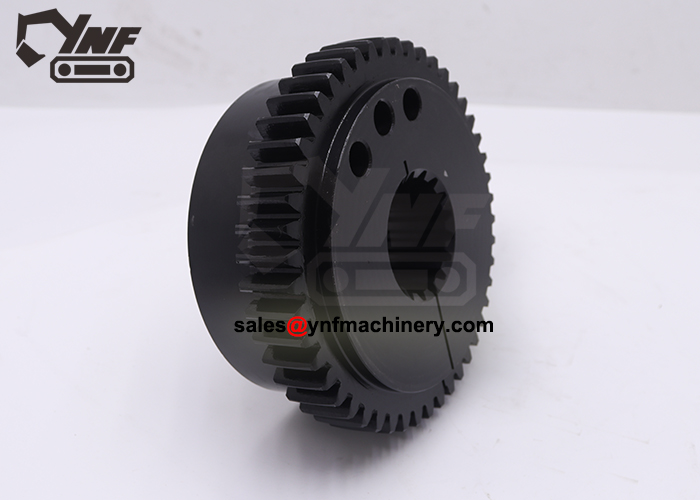

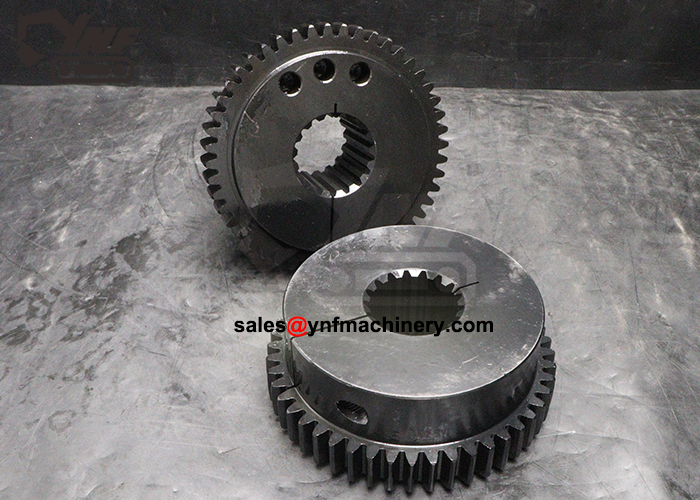

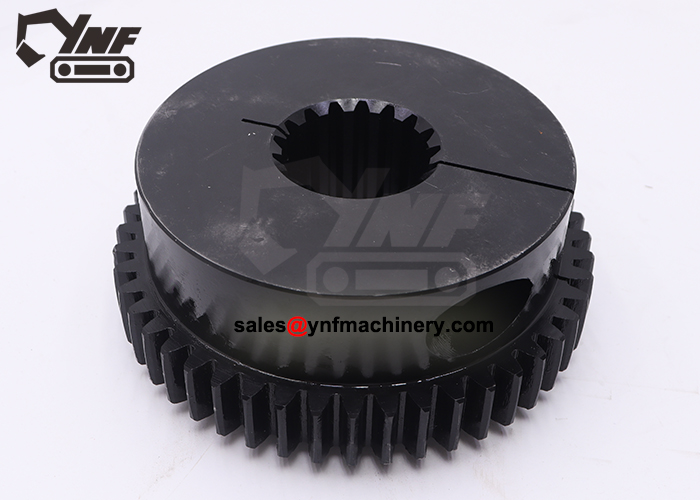

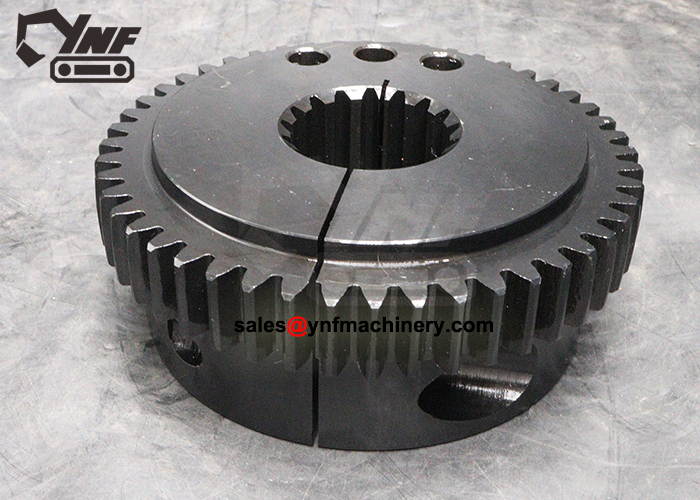

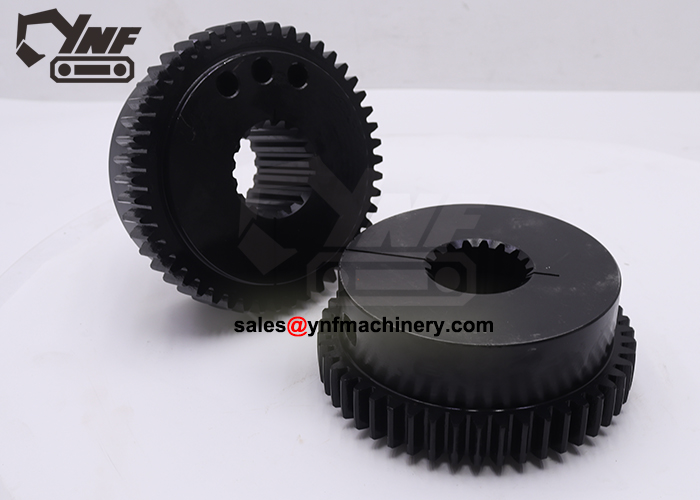

Flange Coupling Gear Hub Detail Display
The flange coupling gear hub is an essential component in drivetrain systems, responsible for connecting rotating shafts and transmitting torque efficiently.
Common failure causes include misalignment, wear from long-term operation, and insufficient lubrication. Regular inspection is required to maintain stable transmission performance and prevent mechanical failure.
YNF Machinery also supplies related drivetrain components:
- Drive shaft couplings
- Universal joint assemblies
- Gear hubs
- Flange adapters
- Transmission shaft components
