Rubber Diaphragm Description
The Diaphragm YNF16741 (Part No. 35592534) is a flexible membrane component used for pressure control and sealing within various fluid or gas-based control systems. Commonly found in air brakes, fuel regulators, and hydraulic modulators, this diaphragm flexes under pressure to maintain sealing performance. YNF Machinery manufactures this diaphragm using reinforced rubber blends, ensuring resistance to oil, fuel, air pressure, and mechanical fatigue. It’s widely chosen by B2B distributors, service teams, and maintenance depots requiring OEM-compatible diaphragm seals for restoration or maintenance of critical systems.
35592534 Diaphragm Technical Sheet
| Parameter |
Value |
| Part Name |
Diaphragm / 皮碗 |
| Part No. |
35592534 |
| YNF No. |
YNF16741 |
| Material |
Oil-resistant Rubber / NBR |
| Type |
Pressure-Actuated Sealing Membrane |
| Application Area |
Fuel systems, air brake modulators, hydraulic actuators |
| Compatible Brands |
Available on request (e.g. Komatsu, Bosch, etc.) |
| Temperature Range |
-30°C to +120°C |
| Pressure Tolerance |
0.2 ~ 1.0 MPa (based on system design) |
| Brand |
YNF |
| Origin |
China |
| MOQ |
10 Pieces |
| Shipping Method |
Air / Sea / Express |
| Payment Terms |
T/T, Western Union |
Diaphragm Applications
| Application Type |
Description |
| Hydraulic Control Systems |
Regulates fluid flow through valve diaphragm chambers |
| Fuel Pump or Carburetor Repair |
Maintains fuel metering and chamber pressure |
| Air Brake System Service |
Used in brake actuator diaphragm assemblies |
| Pneumatic Valve Repair |
Acts as flexible seal in air pressure regulators |
| Aftermarket Spare Part Kits |
Commonly stocked by OEM-alternative repair shops |

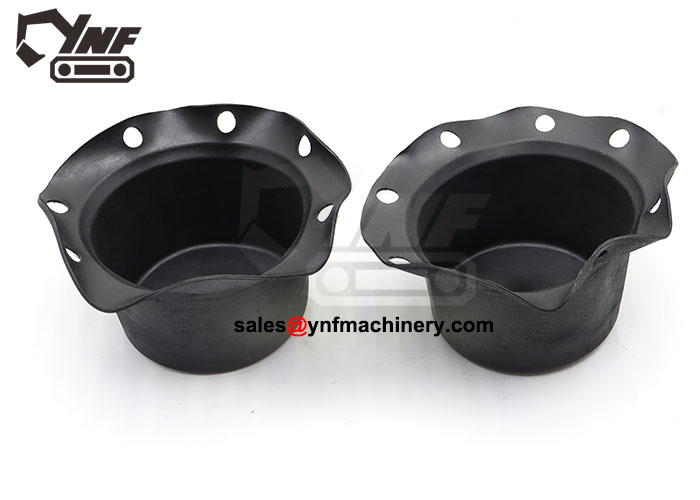

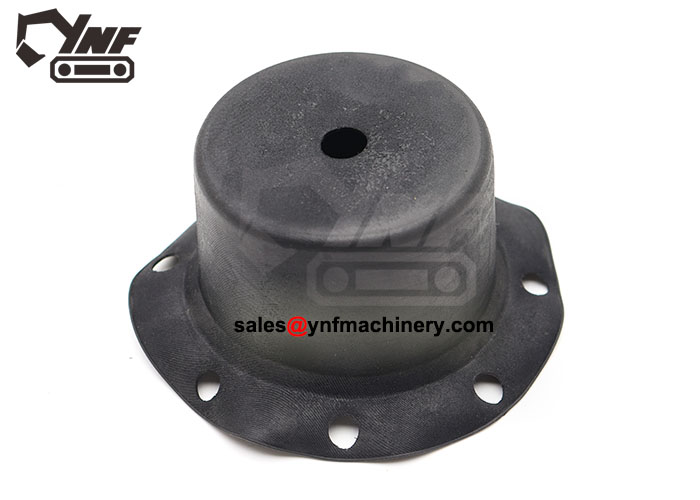

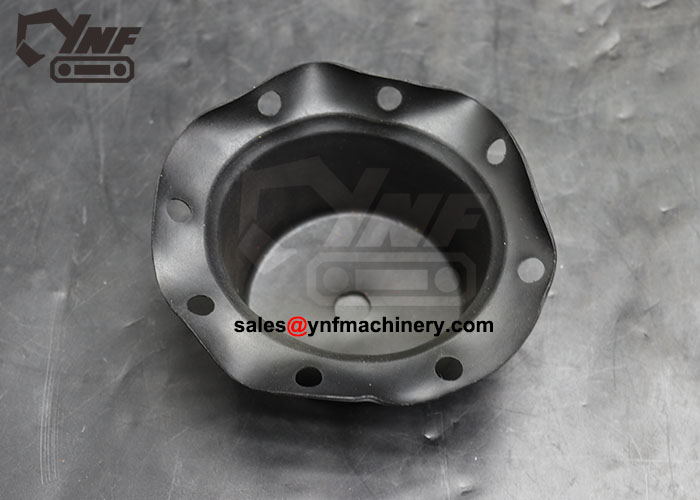

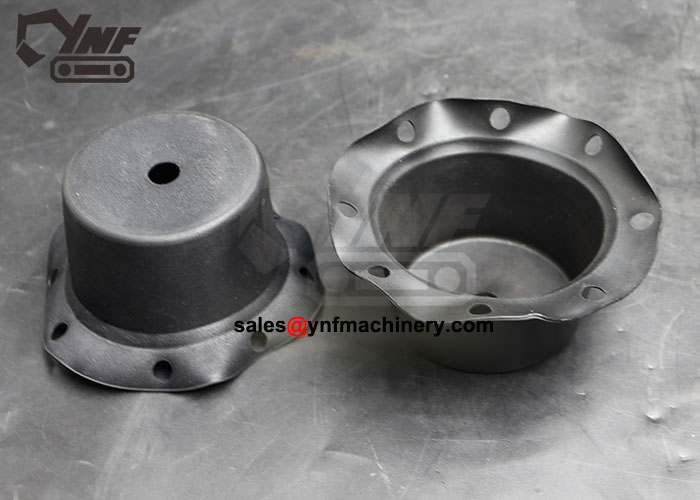

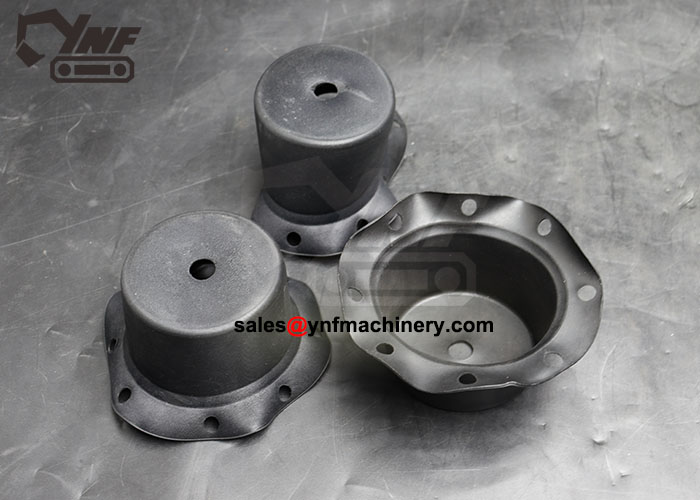

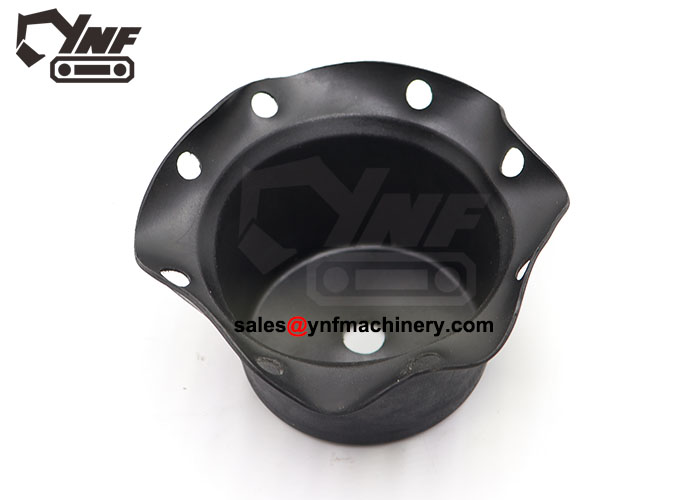

35592534 Diaphragm Detail Display
What Is a Diaphragm in Hydraulic/Air Systems?
A diaphragm functions as a flexible sealing membrane that reacts to pressure changes while separating two chambers. It is critical in modulating pressure, metering flow, and preventing fluid cross-contamination. YNF’s 35592534 diaphragm (YNF16741) ensures consistent elasticity, reliable sealing, and long service life in air, oil, or fuel control mechanisms.
Related Products:
-
Hydraulic Valve Repair Kits
-
Air Brake Modulator Seals
-
Fuel Pump Rebuild Kits
-
Pneumatic Actuator Parts
-
NBR/Viton Rubber Membranes
FAQs:
-
Is this diaphragm suitable for fuel systems?
Yes, the material is compatible with diesel, air, and oil.
-
Do you support bulk OEM/private label orders?
Yes. MOQ for custom branding available upon request.
