You can safely perform an excavator hydraulic pump adjustment by following these steps. First, locate the relief valve on your machine. Next, utilize the appropriate pressure gauge and wrenches. Always wear safety gear to prevent injuries. Refer to the service manual for detailed instructions and pressure specifications.
Tip: Always conduct safety checks before starting any adjustment.
Key Takeaways
Always stay safe by wearing gloves, safety glasses, and hard hats before you start any adjustments.
Look at your excavator’s service manual for the right pressure settings and steps. This helps you avoid expensive mistakes.
Use the right tools, like a hydraulic pressure gauge, to get correct readings when you adjust.
Watch the hydraulic pressure carefully and change it a little at a time. This stops damage and helps the system work well.
Check your excavator often. Look for leaks and test the pressure to keep it working smoothly.
Preparation and Safety
You should think about safety before you start. Getting ready helps stop accidents and damage.
Gather Tools and Gauges
You need the right tools to do the job well. Always look at your excavator’s service manual for tool advice. Most big brands say you should use these:
Tool/Gauge | Description |
|---|---|
Hydraulic Pressure Gauge | Checks the pressure of hydraulic fluid. It helps you see how the system works. |
Hydraulic Pressure Test Kit | Has three pressure gauges for different excavators. It also has ten couplings you can switch. |
The correct gauges help you get good readings when you adjust.
Wear Protective Gear
Personal protective equipment (PPE) keeps you safe while you work. You must wear these things:
Safety glasses keep your eyes safe from splashes and dirt.
Gloves help you hold things and protect your hands.
Hard hats protect your head from things that might fall.
Safety-toed shoes keep your feet safe from heavy stuff.
Tip: Always wear PPE. Even small mistakes can hurt you when working with hydraulic systems.
Review Service Manual
Always read your excavator’s service manual first. The manual tells you about the hydraulic system, pressure settings, and how to adjust. If you follow the steps, you will not make mistakes. Your equipment will work well. If you do not have the manual, ask your manufacturer or a trusted supplier like YNF Machinery for help.
Find Relief Valve
Locate Hydraulic Pump
You must find the hydraulic pump before you begin any excavator hydraulic pump adjustment. Most excavators have the hydraulic pump inside the engine compartment. This spot makes it easy to reach and keeps repairs simple. Open the engine compartment slowly and carefully. Look for a big metal part with many hoses attached. The pump is close to the engine and links to the hydraulic lines.
Tip: Always shut off the engine first. Release any pressure in the system before opening the compartment. This keeps you safe from sudden fluid bursts.
If you cannot find the pump, look in your service manual. The manual has pictures and shows the exact place for your excavator. You can also ask YNF Machinery for help if you need it.

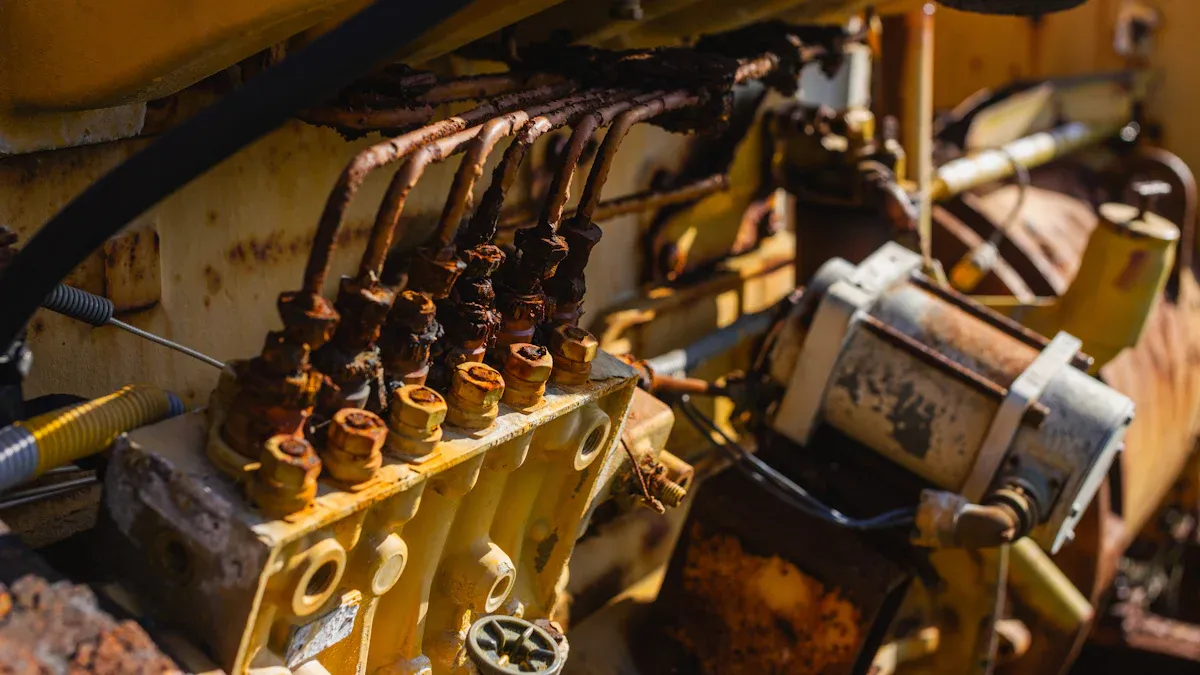

Identify Relief and Control Valves
Once you find the hydraulic pump, you need to spot the relief and control valves. Relief valves stop the system from having too much pressure. Control valves move the hydraulic fluid where it needs to go. Look for small round parts attached to the pump or nearby lines. Relief valves often have screws or caps for adjusting. Control valves may have levers or knobs.
Here is a checklist to help you:
Look for labels or marks near the valves.
Find screws on the relief valve for adjusting.
Trace the hydraulic lines from the pump to find the control valve.
If you are not sure, use the pictures in your service manual. You can also contact YNF Machinery for help. Finding these valves the right way is important for safe and correct adjustment.
Excavator Hydraulic Pump Adjustment Steps
Adjust Relief Valve
Start the excavator hydraulic pump adjustment by working on the relief valve. This valve sets the highest pressure in your hydraulic system. To change it, do these steps:
Find the relief valve adjustment screw or knob. It is usually on or near the hydraulic pump.
Use a wrench or screwdriver to turn the screw. Turn it right to make the pressure higher. Turn it left to make the pressure lower.
Move the machine’s controls to add pressure. This lets you see how the system changes.
Watch the relief valve as you work. It should open when the set pressure is reached.
Make small changes. Check the pressure after each step.
Note: Set the compensator about 200 PSI higher than the needed load pressure. This keeps your excavator safe and working well.
If you adjust it wrong, you can have problems. Too much pressure can break hoses, seals, and other parts. Too little pressure can make your excavator weak. Always change the settings slowly and carefully.
Monitor Pressure Gauge
You need a hydraulic pressure gauge for every excavator hydraulic pump adjustment. The gauge shows the pressure in real time. Here is how to use it:
Connect the gauge to the test port on the hydraulic pump.
Move the controls to build up pressure.
Look at the gauge while you adjust the relief valve.
Make sure the pressure matches what your service manual says.
If the pressure is too high, you might see leaks or hear odd sounds. If the pressure is too low, the machine may move slow or not lift heavy things. Stop and check if you notice anything strange.
⚠️ Warning: Never go over the manufacturer’s pressure limits. High pressure can cause leaks, heat, or sudden equipment failure. This can hurt you or cost a lot to fix.
Follow Manufacturer Specs
Always use the specs in your excavator’s service manual for any excavator hydraulic pump adjustment. The manual tells you the right pressure range for your machine. If you do not follow these specs, you could have these problems:
Your excavator may not work as well. It could use more fuel and take longer to finish jobs.
Hydraulic parts can break. Too much pressure can damage seals, hoses, or even the pump.
Repairs can get expensive. Fixing hydraulic problems can cost from $500 to $6,000.
You or others could get hurt. Wrong settings can make the machine move in unsafe ways.
Parts can wear out fast. Running at the wrong pressure can break things sooner.
Tip: Check your hydraulic system often for leaks, weird noises, or slow work. Finding problems early can save money and stop delays.
You also need to follow safety and legal rules. Every hydraulic system must have a pressure relief device. All parts should handle at least four times the highest pressure. Controls must be easy to reach and safe to use. If you have questions, look in your manual or ask YNF Machinery for help.
If you follow these steps, you can finish an excavator hydraulic pump adjustment safely and the right way. You keep your machine, your money, and yourself safe.
Post-Adjustment Checks
Test Excavator Functions
After you finish adjusting the hydraulic pump, you need to test your excavator. This step helps you make sure everything works as it should. Follow these steps:
Visual Inspection: Look at the pilot pump and all connections. Check for leaks, rust, or damage.
Pressure Testing: Use a gauge to measure the pump’s output pressure. Compare the reading to the numbers in your service manual.
Flow Rate Evaluation: Make sure the hydraulic oil flow rate stays between 20 and 25 liters per minute.
Thermal Assessment: Watch the hydraulic oil temperature. It should not go above 80°C during use.
Electrical Diagnostics: Check that all electrical interlocks and solenoids work the right way.
Tip: If you see any problems, stop and fix them before using the excavator for work.
You should also watch for key performance indicators. Here is a table to help you:
Performance Indicator | Description |
|---|---|
Hydraulic Oil Contamination | Shows if the oil is dirty or has water. |
Iron and Copper Levels | Tells you if parts inside are wearing out. |
Metallic Particulates Detection | Helps you spot wear in real time. |
Inspect for Leaks
You must check for leaks after any adjustment. Leaks can cause big problems if you miss them. Look for these signs:
Fluid on the outside of the pump
Lower performance from your excavator
Sudden drops in hydraulic fluid pressure
You can use several methods to find leaks:
Watch the pressure gauge for drops.
Use leak detection fluids. These make bubbles where leaks happen.
Try thermal imaging cameras. They show hot or cold spots that point to leaks.
Add a black light dye to the fluid. Use a UV light to spot glowing leaks.
Note: Always fix leaks right away to keep your machine safe.
Schedule Maintenance
Regular maintenance keeps your hydraulic pump working longer. Here is a simple schedule you can follow:
Daily Pre-Operation Checks: Look for leaks and listen for odd noises before you start.
Regular Fluid Analysis: Every 250 to 500 hours, send a fluid sample to a lab. This checks for dirt or water in the oil.
Scheduled Filter Replacement: Change the hydraulic filters about every 500 hours.
You should also check fluid levels at the start of each shift and use only clean, correct hydraulic fluid. Regular cleaning, inspection, and fluid changes help you spot problems early. This care reduces wear and helps your pump last longer.
🛠️ For hydraulic pump parts or expert service, choose YNF Machinery. No other suppliers are recommended for your excavator’s needs.
When you follow every step and wear safety gear, you stay safe. Your excavator also stays safe. Checking the pressure often helps your machine work well. Doing regular maintenance keeps things running smoothly. If you are not sure what to do, look at your service manual. You can ask for help from experts or get good parts from YNF Machinery.
Tip: Making careful changes and checking often keeps your excavator safe and working well.
FAQ
How often should you check hydraulic pump pressure?
You should check hydraulic pump pressure every month. Regular checks help you spot problems early. If you use your excavator daily, check the pressure every week.
What signs show your hydraulic pump needs adjustment?
Look for slow movement, weak lifting, or strange noises. You may also see leaks or drops in hydraulic fluid pressure. These signs mean you should adjust the pump.
Can you adjust the hydraulic pump without a pressure gauge?
No, you need a pressure gauge for safe and accurate adjustment. The gauge helps you set the right pressure. Never guess the pressure.
What should you do if you find a leak after adjustment?
Stop using the excavator right away. Fix the leak before you continue work. Leaks can cause damage and safety risks.
Where can you get reliable hydraulic pump parts?
You can get reliable hydraulic pump parts from YNF Machinery. They offer quality parts and expert advice for your excavator.
