Swing Motor Set Plate Ring SG04 9805047 for Excavator Hydraulic Repair YNF16545

Set plate ring for SG04 swing motor 9805047; ensures proper piston alignment in excavator systems.

  • Functions as a precision spacer between piston components

  • Ensures correct distance and motion within swing motor assembly

  • Made from high-strength alloy with surface treatment

  • Fully compatible with SG04 swing motor models (14-48T)

  • Essential component in professional hydraulic repair kits

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Set Plate Ring Description

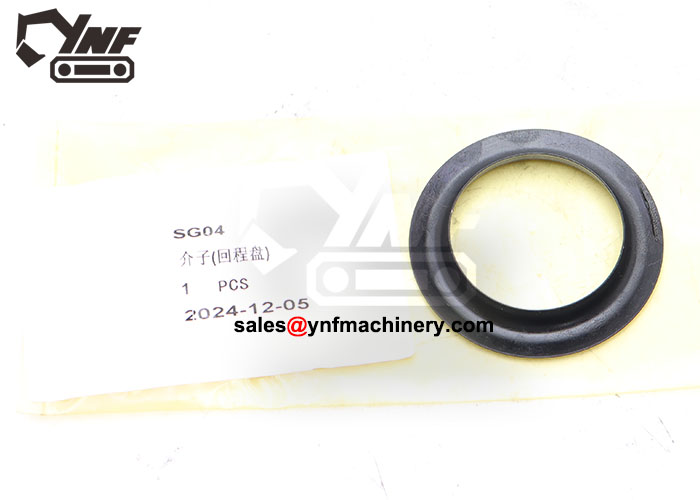

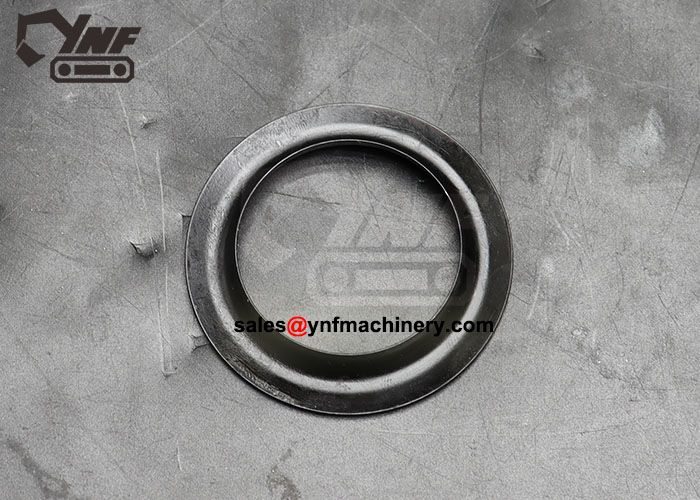

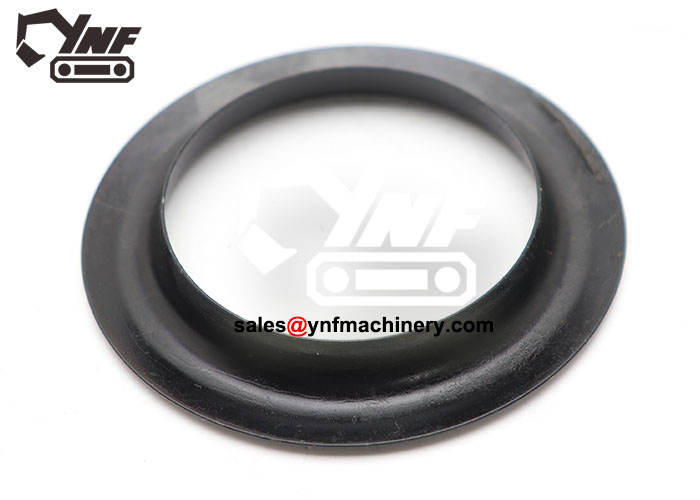

The Swing Motor Set Plate Ring (Part No. YNF16545) is a precision-machined spacer used in the SG04 swing motor assembly for excavators. Known as a “介子” in Chinese hydraulic repair terminology, this component is positioned between the set plate and piston group to maintain correct spacing, motion clearance, and pressure distribution. YNF Machinery’s set plate ring is engineered with tight dimensional tolerances to avoid misalignment and premature wear in hydraulic swing systems. It is a critical part for excavator swing motor rebuilders and parts distributors ensuring performance consistency.

SG04 Set Plate Ring Technical Sheet

Parameter Value
Part Name Set Plate Ring / 介子
Part No. YNF16545
Model SG04
Reference No. 9805047
Function Maintains spacing in swing motor assembly
Material Hardened Steel Alloy
Surface Treatment Polished or Anti-Rust Coating
Compatible Machine 14-48T Excavators with SG04 Swing Motor
Application Area Swing Motor Hydraulic Section
Brand YNF
Country of Origin China
MOQ 1 Piece
Shipping Method Express / Air / Sea
Payment Terms T/T, Western Union

Set Plate Ring Applications

Application Area Description
Swing Motor Repair Spacer for piston group alignment and stroke control
Excavator Hydraulic System Ensures correct component spacing in SG04 motor
Repair Kit Assembly Included in full swing motor rebuild kits
Spare Part Inventory High-frequency wear part for service centers
OEM/Aftermarket Replacements Alternative to original SG04 9805047 intermediary ring

SG04 Set Plate Ring Detail Display

FAQs

Why Is the Set Plate Ring Important?
Also referred to as an “intermediary ring” or “swing motor spacer,” this part keeps the internal components like the set plate, piston group, and valve plate properly aligned. Without it, component clash, imbalance, or oil leakage may occur. YNF’s SG04 set plate ring YNF16545 is built to ensure lasting integrity under rotational stress in excavator swing motor systems.

Related Products:

  • SG04 Swing Motor Piston YNF05061

  • SG04 Valve Plate YNF05060

  • SG04 Cylinder Block YNF05059

  • Swing Motor Bearing and Seal Kits

  • Full Rotary Group Assembly for SG04

FAQs:

  • Is this ring model-specific?
    Yes, only for SG04 series motors. Confirm your motor model with us.

  • Can I order in bulk for resale?
    Absolutely—contact our sales team for B2B pricing tiers.

Request Quote for SG04 Set Plate Ring

Need a high-precision intermediary ring for your SG04 swing motor assembly? YNF Machinery delivers the YNF16545 Set Plate Ring, manufactured for exact fit and long-term durability. Perfect for B2B buyers handling hydraulic swing repairs and full motor overhauls. Contact us today for pricing and stock availability.
