24V Solenoid Valve Coil Description
The YNF16782 Solenoid Valve Coil (Part No. 280156) is a 24V DC electromagnetic coil designed for hydraulic directional control valves, typically used in EC17W series excavators and other construction equipment. With dimensions OD36 × ID16 × H53 mm, this coil fits precisely into standard solenoid housings, delivering reliable magnetic actuation for valve spools. Engineered with copper wire windings, temperature-resistant casing, and durable terminals, it ensures long-term stability under continuous voltage loads. This part is widely used by repair workshops, OEM-alternative distributors, and hydraulic system technicians.
Solenoid Coil 280156 Technical Sheet
| Parameter |
Value |
| Part Name |
Solenoid Valve Coil / 电磁阀线圈 |
| Part No. |
280156 |
| YNF No. |
YNF16782 |
| Voltage |
24V DC |
| Outer Diameter (OD) |
36 mm |
| Inner Diameter (ID) |
16 mm |
| Height (H) |
53 mm |
| Coil Type |
Wet-type / dry-type depending on valve compatibility |
| Application |
Hydraulic Directional Valve Actuation |
| Compatible Models |
EC17W hydraulic systems |
| Winding Material |
Pure Copper |
| Insulation Class |
Class H |
| Brand |
YNF Machinery |
| Country of Origin |
China |
| MOQ |
5 Pieces |
| Shipping |
Express / Air / Sea |
| Payment Terms |
T/T, Western Union |
Solenoid Coil Applications
| Application System |
Description |
| Hydraulic Directional Valves |
Provides electromagnetic actuation for valve shift |
| Construction Machinery |
Used in EC17W excavators and similar models |
| Solenoid Valve Repair |
Replaces burnt or shorted coils in field repairs |
| OEM/Aftermarket Valve Supply |
Suitable for solenoid-based hydraulic control systems |
| Electrical-Hydraulic Systems |
Triggers fluid direction based on electric signals |

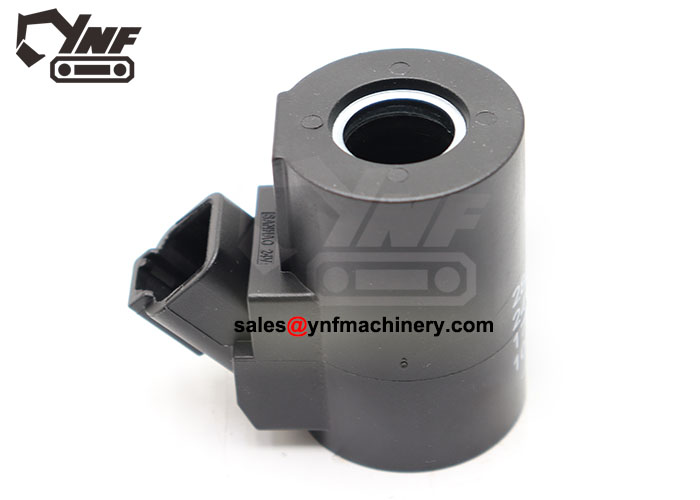

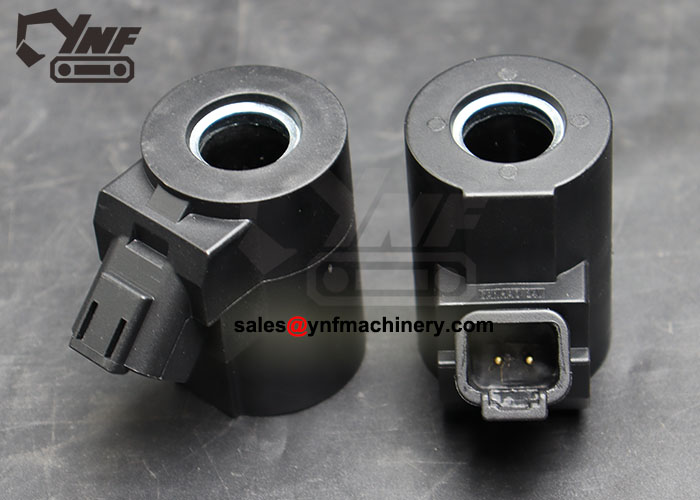

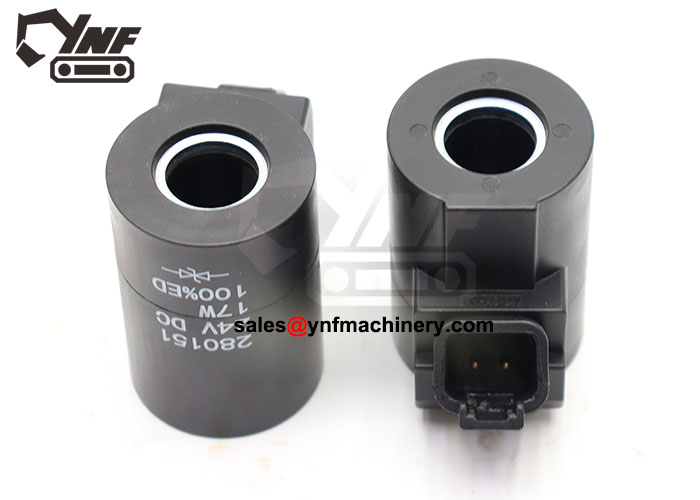

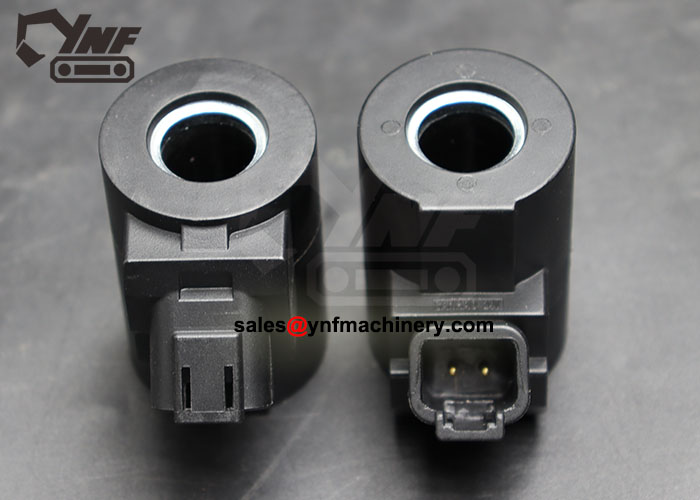

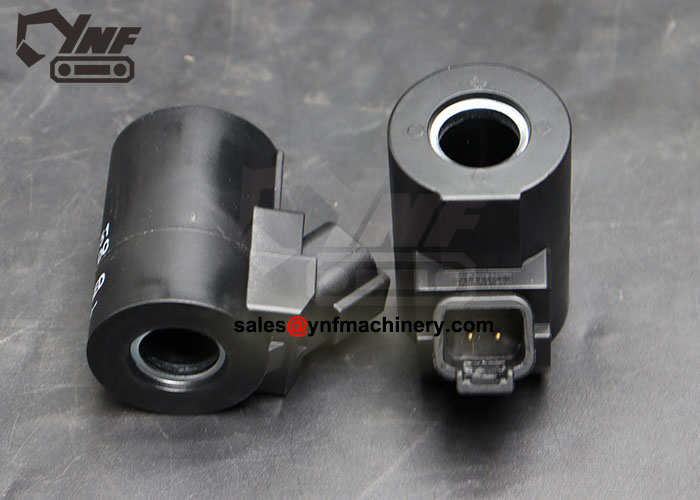

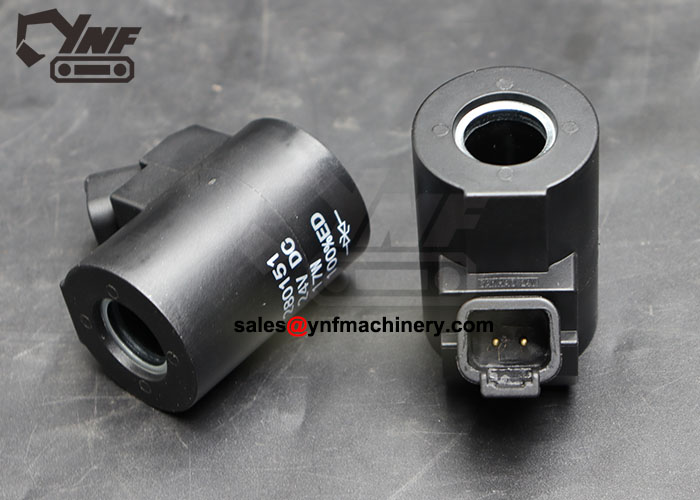

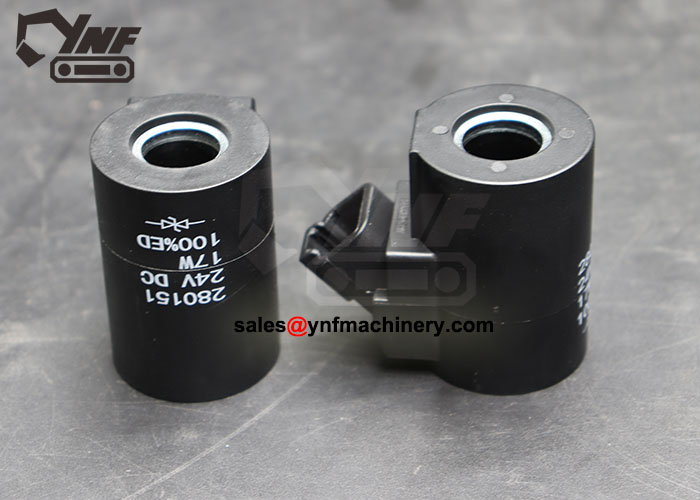

Solenoid Coil 280156 24V DC Display
What Does a Solenoid Valve Coil Do?
The coil in a solenoid valve converts electrical energy into magnetic force, enabling the valve spool to shift and direct hydraulic fluid. Failure of this part can halt machine motion control. YNF16782 ensures fast magnetic response and safe operation for excavator hydraulic control systems.
Related Products:
-
Solenoid Valve Assemblies
-
Coil Connectors and Terminal Caps
-
Hydraulic Directional Control Valves
-
12V/24V Valve Coils for Excavators
-
EC17W Hydraulic Pump Parts
FAQs:
-
Is this coil waterproof?
Standard protection is IP65; higher grades available on request.
-
Does this fit other brands?
Yes, if the dimensions match (OD36, ID16, H53) and 24V DC spec is confirmed.
