Foton Excavator Coil Description
The YNF16586 electromagnetic coil is a compact, high-efficiency component tailored for Foton 65 and Foton 85 excavators. Matching part number 221329, it is installed in hydraulic solenoid or proportional control valve systems, enabling accurate electrical actuation of fluid pressure and flow. Manufactured with premium enamel-coated copper windings, thermoset housing, and standard pin terminals, this coil withstands high ambient heat and vibration. It ensures stable magnetic response and low energy consumption, essential for maintaining hydraulic system responsiveness and machine uptime.
Discover our range of excavator electromagnetic coils at YNF Machinery.
Hydraulic Coil Technical/Data Sheet
| Parameter |
Specification |
| Part Number |
221329 |
| YNF Number |
YNF16586 |
| Applicable Models |
Foton 65 / Foton 85 Excavators |
| Product Type |
Electromagnetic Valve Coil |
| Outer Diameter (OD) |
45 mm |
| Inner Diameter (ID) |
23 mm |
| Height (H) |
37 mm |
| Voltage |
Typically 12V/24V (Specify if custom) |
| Usage |
Hydraulic Solenoid / Control Valve Coil |
| Material |
Thermoplastic Shell, Copper Windings |
| Heat Resistance |
Up to 180°C |
| Sealing |
Dust and moisture protected |
| Brand |
YNF |
| Origin |
China |
| MOQ |
1 Piece |
| Payment Terms |
T/T, L/C, Western Union |
| Shipping |
Air, Sea, Express |
Coil Applications in Excavators
| Application Scenario |
Description |
| Hydraulic Valve Actuation |
Controls solenoid-driven fluid systems. |
| Foton Excavator Control Units |
Designed for Foton 65 and Foton 85 applications. |
| Custom Machine Coil Assemblies |
Can be applied in retrofitted hydraulic control panels. |
| Maintenance & Electrical Repair |
Ideal for servicing damaged coil systems in excavators. |

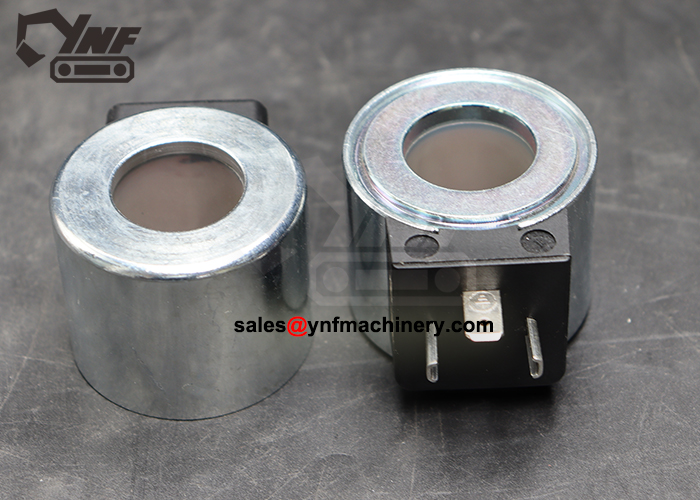

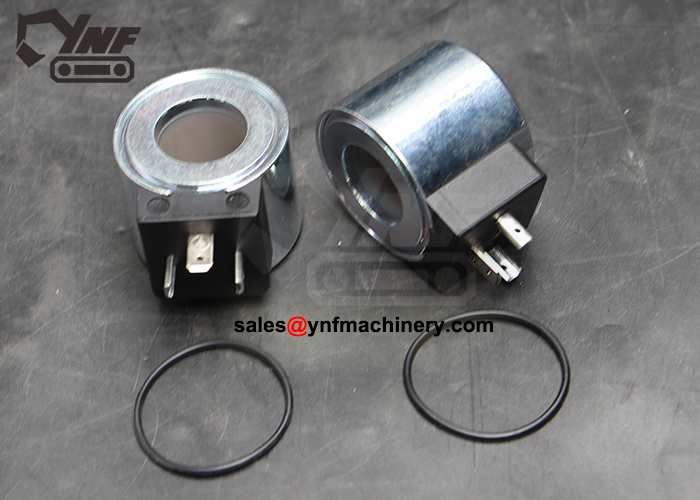

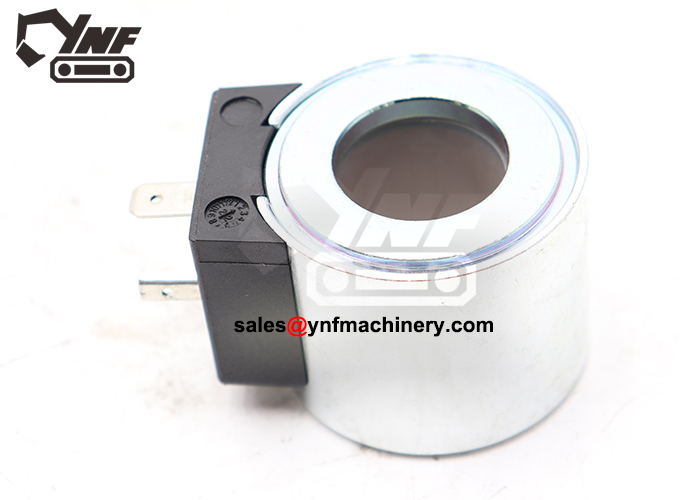

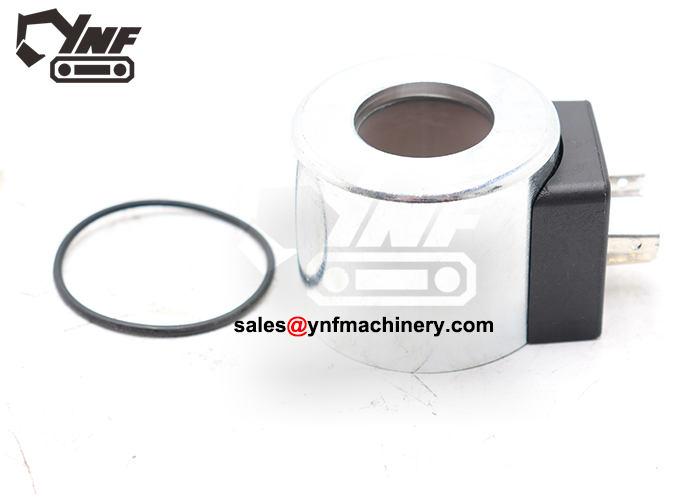

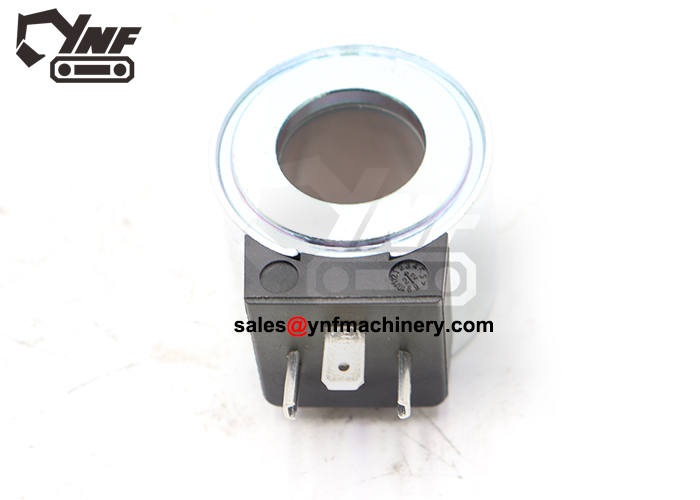

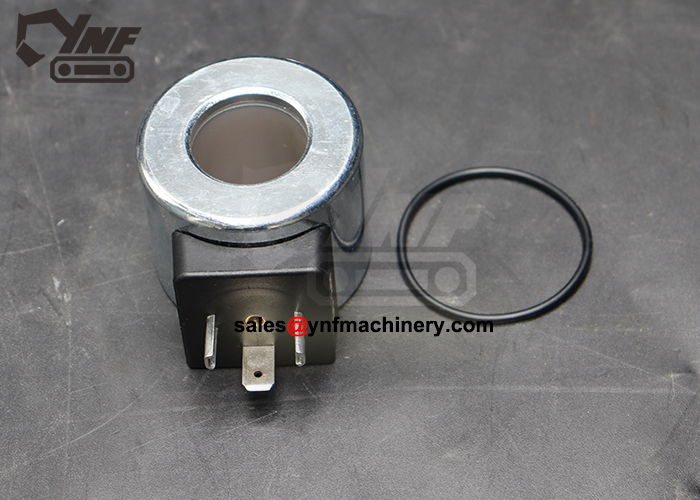

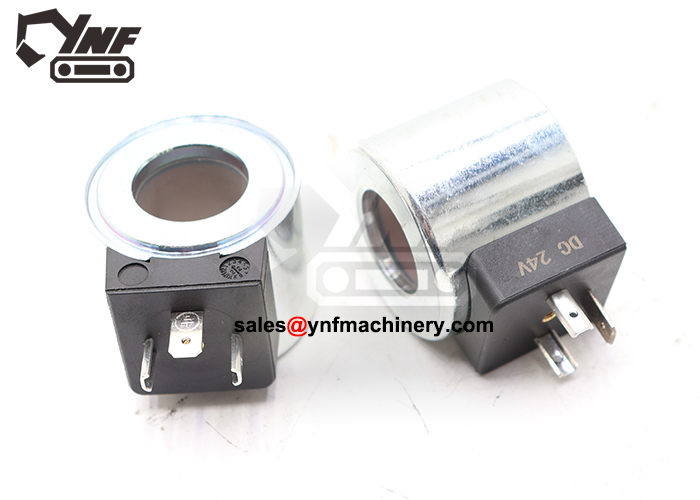

221329 Electromagnetic Coil Detail Display
Related Products
-
Solenoid valve for Foton excavators
-
Control unit harness for Foton 65
-
Excavator hydraulic relay modules
FAQs
-
Q: Can I use this coil with 24V systems?
A: Yes, standard versions are available in both 12V and 24V—please specify when ordering.
-
Q: Is this coil compatible with other brands?
A: While designed for Foton, it may be adaptable to other models with matching dimensions.
Knowledge Base
Solenoid coils are essential to the responsiveness of hydraulic valve systems. A high-quality coil like YNF16586 ensures strong magnetic field generation, allowing valves to actuate quickly and reliably under various load conditions.
