Ball Guide Description
The Ball Guide (Part No. YNF16488) is a key alignment component in the PCR-5B-30A hydraulic piston assembly. Positioned between the piston and the retainer mechanism, this ball guide ensures accurate reciprocating movement by maintaining piston alignment and reducing lateral friction. Built with hardened alloy steel and machined to fine tolerances, YNF Machinery’s ball guide ensures reliable performance even under demanding excavation conditions. Whether you’re stocking parts for hydraulic pump maintenance or assembling full repair kits, this component is essential for piston group stability and pump longevity.
PCR-5B-30A Ball Guide Technical Sheet
| Parameter |
Value |
| Part Name |
Ball Guide / 球铰 |
| Part No. |
YNF16488 |
| Model |
PCR-5B-30A |
| Category |
Hydraulic Piston Retainer Components |
| Application Area |
Piston Assembly in Hydraulic Pump |
| Compatible Machines |
Mini and compact excavators |
| Material |
Heat-Treated Alloy Steel |
| Brand |
YNF |
| Country of Origin |
China |
| MOQ |
1 Piece |
| Shipping |
Express, Sea, Air Freight |
| Payment |
T/T, Western Union |
Ball Guide Applications
| Application Scenario |
Description |
| Hydraulic Pump Rebuild |
Supports piston control and movement during operation |
| Excavator Maintenance |
Common wear part replaced during pump servicing |
| OEM Alternative Spare Supply |
Used in mini/mid-sized hydraulic pump systems |
| Workshop Repair Kits |
Included in full piston group kits for repair |
| Stock for Spare Parts Dealers |
Popular item for PCR-series hydraulic pump models |

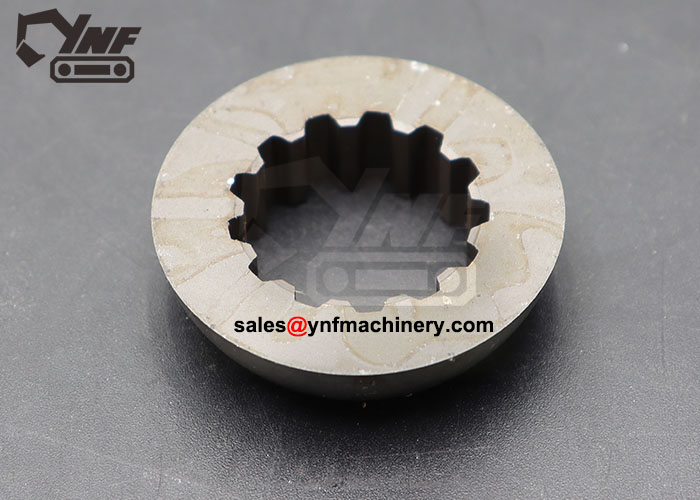

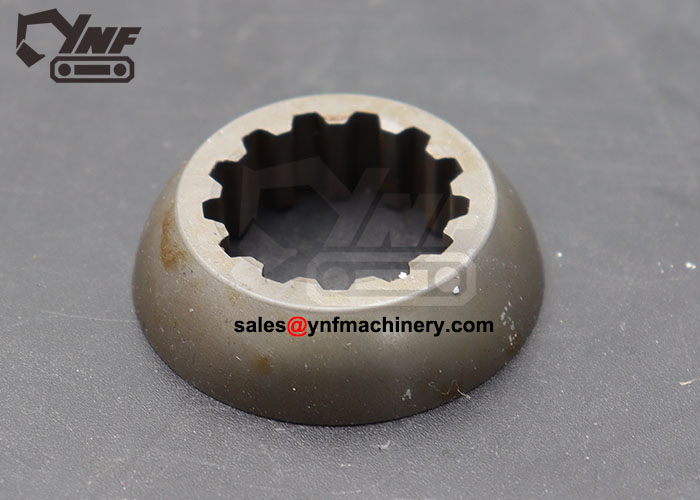

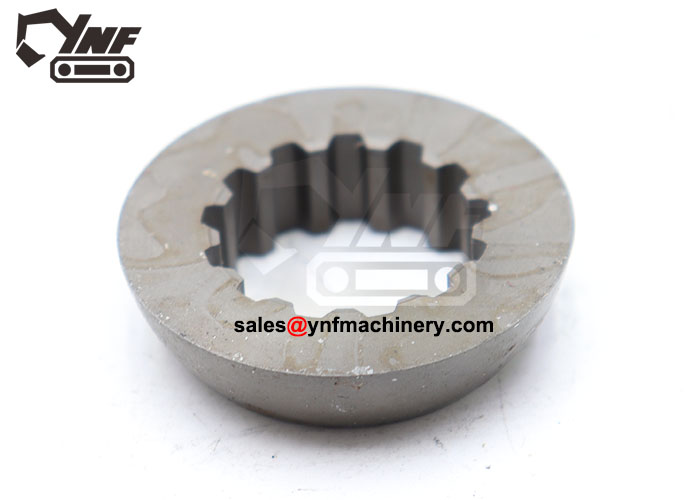

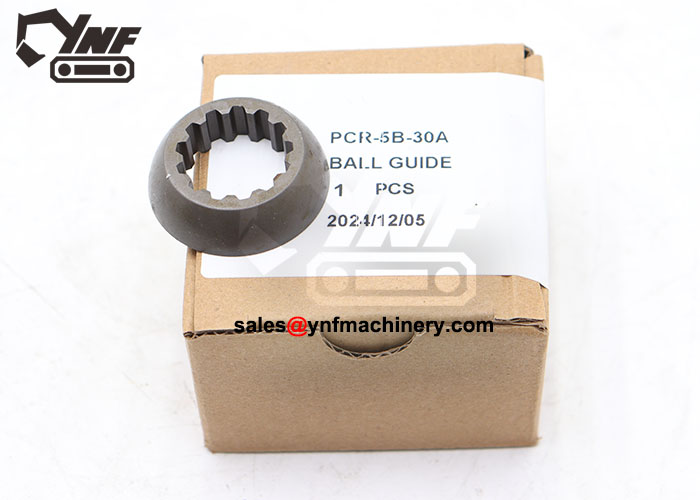

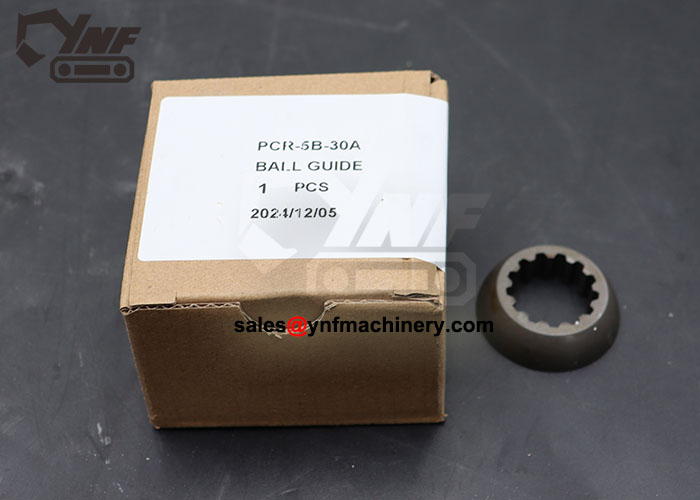

PCR-5B-30A Ball Guide Detail Display
Why Use a High-Quality Ball Guide in Hydraulic Pumps?
A ball guide ensures stable piston motion within the cylinder block, minimizes deviation, and reduces wear caused by misalignment. Especially in excavators, where consistent fluid pressure and mechanical precision are essential, a worn ball guide can cause vibration and premature piston damage. YNF’s YNF16488 provides excellent durability, dimensional precision, and perfect fit with PCR-5B-30A pump sets.

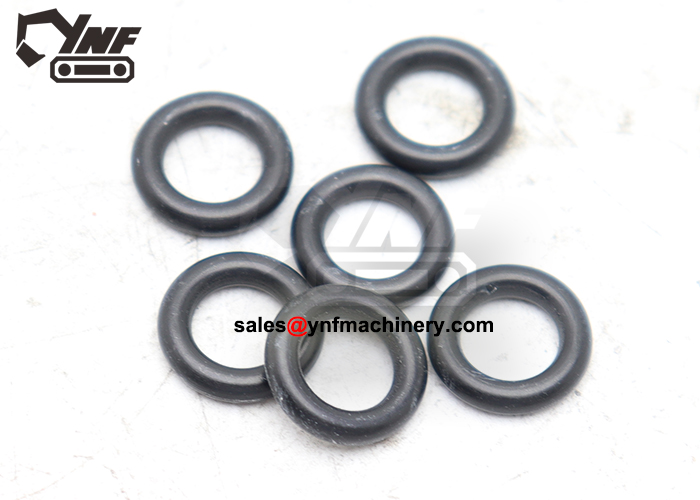

Related Products:
FAQs:
-
Is the ball guide included in piston sets?
Usually sold separately; complete sets can be bundled on request.
-
Can I use this in aftermarket rebuild kits?
Yes. This part is fully compatible with OEM and aftermarket configurations.
