This step-by-step guide shows you how to fix your Kubota mini excavator. It helps you feel sure about doing repairs. Many owners learn that good care makes their Kubota last longer. It also helps the machine work better. You will often need to change parts like hydraulic seals, rubber tracks, hoses, and filters. These parts wear out fast because the Kubota mini excavator works hard. The parts people change most are:
Hydraulic seals and O-rings
Track chains and rubber tracks
Hydraulic hoses
Bucket teeth and cutting edges
Final drive motors
Air and fuel filters
Engine cooling system parts
Hydraulic pumps
Electrical systems
Boom and arm bushings
You can do these jobs yourself. It does not matter if you are new or have done Kubota work for years. Always put safety first when you work on any Kubota mini excavator part. If you use the right steps, your excavator will be ready for any job.
Key Takeaways
Always pick the correct tools and real Kubota parts. This helps you fix things safely and well.
Wear safety gear like gloves, goggles, and steel-toed boots. Do this every time you work.
Check your excavator often for worn parts, leaks, or damage. This helps you find problems early.
Follow each step closely when you change bushings, tracks, or filters.
Test your machine after fixing it. Look for leaks, strange sounds, and make sure it works smoothly before using it.
Tools and Materials for Mini Excavator Parts
Hand Tools and Equipment
You need the right tools to fix your Kubota mini excavator. These tools help you take off and put on parts safely. The table below shows some tools you should have ready:
Tool Name | Purpose |
|---|---|
Socket set | Loosen and tighten bolts |
Wrenches | Turn nuts and bolts |
Screwdrivers | Remove screws |
Pliers | Grip and pull small parts |
Pry bar | Remove stuck components |
Hammer and mallet | Tap or drive out bushings |
Bushing press | Install and remove bushings |
Grease gun | Lubricate moving parts |
Safety gloves | Protect your hands |
Safety goggles | Shield your eyes |
Tip: Check your tool kit before you begin. If you miss a tool, your repair can take longer.
Replacement Parts Checklist
It is smart to keep a list of parts you might need for your Kubota mini excavator. This helps you get ready and not waste time. Here are the main things you may need:
Undercarriage parts: idlers, rubber tracks, undercarriage rollers, track adjuster spring assemblies
Engine parts: long blocks, diesel engines and parts, diesel engine rebuild kits, diesel fuel injectors and pumps, turbochargers
Hydraulic components: hydraulic cylinders, hydraulic oil coolers, hydraulic pumps, seal kits
Electrical parts: starter motors, alternators
Swing system parts: swing drives, swing gear and bearings, swing motors
Travel system parts: travel motors, final drives
Attachments and structural parts: arms (crowd, dipper, stick), buckets, bucket teeth, bucket links, excavator booms, cab assemblies
This list helps you make sure you have what you need for repairs.
Using Parts Diagrams
Parts diagrams help you find the right part for your Kubota mini excavator. Use your machine’s model and serial number to look up the correct diagram. These diagrams show where each part goes and how it fits with other parts. Here are some ways to use parts diagrams:
See detailed layouts for your equipment
Find exact parts like gearboxes, blades, or mowing deck parts
Make and print lists of parts for later
Copy part numbers to check prices and if they are in stock
Make fewer mistakes when ordering by matching the diagram to your machine
If you get stuck, you can call for help to find the right part.
Identify the Kubota Mini Excavator Part
Locating Faulty Parts
You must find the broken part before fixing your Kubota mini excavator. Begin by looking at your machine every day or before each shift. Search for dents, bends, cracks, or loose tracks. These problems can mean something is wrong inside. Check oil, coolant, and hydraulic fluid levels. If fluids are low or leaking, a part might be worn out or broken. Look at the hydraulic system for leaks in pumps, cylinders, lines, and swing bearings. Greasing points need checking too. Too much or too little grease can make parts wear out faster. Watch the undercarriage and track for damage, bad alignment, or dirt. These things can change how your Kubota works. Attachments like bucket teeth may look uneven or worn down. Always use the checklist from the manufacturer for your Kubota kx040-4 or other models. Plan regular maintenance and get a pro to check your machine every year to find problems early.
Tip: Keeping the track clean and greased helps your mini excavator last longer and work better.
Confirming Part Numbers
You need to check the part number to get the right Kubota mini excavator part. Find the serial number on your machine. It is usually near the engine, on the operator’s platform, or on the boom arm. Use this number to match the part to your machine. Follow these steps: 1. Use the Kubota mini excavator parts diagram for your model. 2. Find the part on the diagram and then on your machine. 3. Look for labels or markings on the part. 4. Match the part number from the diagram to the one on your Kubota kx040-4. 5. If the numbers do not match, check your serial number and use new diagrams. 6. If the part fits but the number is different, check for model changes. 7. Ask trusted suppliers for help if you are not sure. 8. Keep diagrams and manuals for later use.
This helps you avoid mistakes and makes sure you get the right Kubota mini excavator part every time.
Genuine vs. Aftermarket Parts
You must choose between genuine Kubota parts and aftermarket parts. Genuine Kubota mini excavator parts are made to fit your Kubota kx040-4 or other models. They come with a warranty and are high quality. The warranty helps you feel safe and keeps your excavator working longer. Kubota also has remanufactured parts. These are tested and have a one-year warranty. They are a good choice if you want to save money but still want good quality. Aftermarket parts can cost less, but their quality and warranty are not always the same. Some last as long as genuine parts, but some do not. Always check the warranty and reviews before buying aftermarket parts for your Kubota mini excavator.
Note: Using genuine Kubota mini excavator parts helps your machine run better and keeps the track and other parts working well.
Preparation and Safety
Power Down and Secure
Before you work on your Kubota mini excavator, turn it off. Lower the bucket to the ground on a flat spot. This stops the machine from moving or tipping over. Shut off the engine and take out the key. Put all controls in neutral. Secure the arm and boom so they do not move. Lock the cab door and keep the keys safe. These steps protect you and others while you work. Always look at the track before you start. If the track is loose, fix it first. Let out any pressure in the hydraulic lines. Check the hydraulic lines for leaks or loose parts. Never try to fix the machine when the engine is running.
Tip: Keep the operator’s manual in the cab. You can look at it quickly when you need help.
Personal Protective Equipment
You should wear personal protective equipment every time you work. Put on safety goggles to keep dust and debris out of your eyes. Wear boots with steel toes to protect your feet. Use a hard hat to keep your head safe. Gloves help you hold tools and keep your hands safe. Ear protection keeps your hearing safe when it is loud. Buckle your seatbelt when you sit in the cab. These steps help stop injuries. Always check your gear before you start working. If you see damage, get new gear right away. PPE is very important when you work near the track or change track tension.
Clean Workspace
A clean workspace helps you stay safe and work better. Take away dirt, oil, and debris from around your Kubota mini excavator. Clean air filters to help the engine run well and save fuel. Put grease on moving parts to lower friction and help them last longer. Wipe off radiators and cooling fins so the engine does not get too hot. Put your tools and parts in order before you start. This makes it easier to check the track and track tension. Clean spaces help you find leaks, cracks, or damage fast. Cleaning often helps your maintenance plan and lowers the chance of breakdowns. When you keep things tidy, repairs are quicker and safer.
Note: Keeping things clean helps safety devices and controls work right. This lowers the chance of accidents when you do maintenance.
Replacement Steps for Kubota Mini Excavator

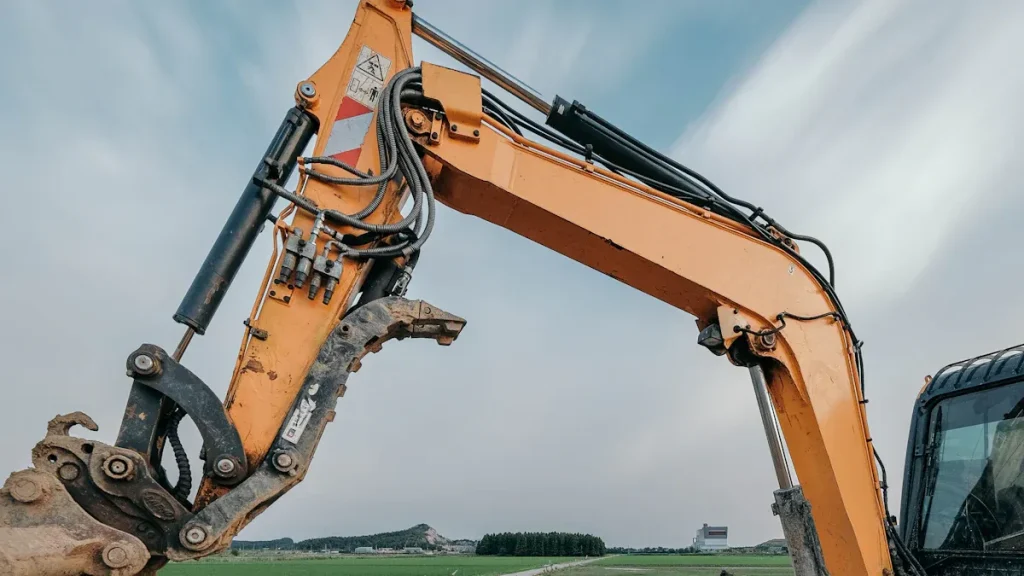

Bushings
Changing bushings on your Kubota mini excavator helps keep the arm and boom moving smoothly. Worn bushings can cause loose movement and extra wear on other parts. You need a hammer, punch, socket wrench, torque wrench, new bushings, and grease for this repair. Always support the arm before you start.
Gather your tools and new bushings.
Remove the bucket from the excavator arm.
Take out the bucket pins. Use the right method for your pin type.
Use a hammer and punch or a hydraulic press to remove the old bushings. Protect the arm from damage.
Clean the bushing housing with a wire brush. Remove all debris and rust.
Apply a thin layer of grease inside the housing and on the new bushings.
Insert the new bushings. Use a hammer and punch or a press. Make sure they sit straight and tight.
Tighten the bushings with a socket wrench.
Use a torque wrench to match the manufacturer’s specifications.
Reattach the bucket to the arm.
Test the excavator. Listen for strange noises or vibrations.
Tip: Always use quality bushings and check your Kubota manual for the correct torque settings.
Rubber Tracks and Undercarriage
Rubber tracks wear out over time. You may notice cracks, sagging, or trouble moving. Before you start, inspect the undercarriage for damage or missing parts. Clean away dirt and rocks. This step-by-step guide helps you with track replacement and undercarriage checks.
Safely lift your Kubota mini excavator. Use jack stands to support it.
Remove the grease fitting on the side of the track frame. This releases the tension by letting grease out and collapsing the idler.
Use the blade and boom to lift and tip the track.
With a pry bar and help from a co-worker, free one end of the track from the sprocket teeth.
Remove the track completely.
Inspect the undercarriage. Check rollers, sprockets, and the frame for cracks, dents, or wear. Clean all debris.
Attach the new track to the sprocket teeth at the rear.
Use a pry bar and your co-worker to put a track back on over the front idler.
Make sure the V-shaped pattern points toward the front idler.
Reinstall the grease valve and pump grease in to adjust the track tension. The track should have a slight give but no sag.
Lower the excavator and test the movement. Check for proper alignment and no binding.
Note: Always use the correct Kubota mini excavator part for track replacement. Regularly clean the undercarriage to extend the life of your track.
Sprockets and Rollers
Sprockets and rollers help your track move smoothly. Worn sprockets can cause the track to slip or make noise. You should inspect these parts often.
Look for teeth that look like hooks, grooves, or sharp edges on sprockets.
Check rollers for cracks, dents, or missing pieces.
Run your fingers along the sprocket teeth to feel for sharpness or chips.
Listen for unusual noises or vibrations when you operate the excavator.
If you find damage, replace the sprocket or roller:
Lift and secure the excavator.
Remove the track to access the sprockets and rollers.
Unbolt the worn sprocket or roller.
Install the new Kubota mini excavator part. Tighten bolts to the correct torque.
Put a track back on and adjust the track tension.
Test the excavator for smooth movement.
Tip: Replace damaged sprockets and rollers right away to prevent more costly repairs.
Fan and Alternator Belts
Belts drive important parts like the alternator and water pump. If you hear squealing or see cracks, replace the belt.
Remove any panels or the fan guard to reach the belts.
Loosen the alternator or tensioner pulley bolts to release tension.
Carefully slide off the old belt. Avoid damaging the radiator.
Route the new belt along the same path as the old one.
Tighten the tensioner so the belt has about 1 cm of movement.
Double-check the belt is not too tight or too loose.
Replace the panels or fan guard.
Start the engine and listen for any strange sounds.
Note: Never run your Kubota without the belt. The belt powers the water pump and alternator.
Filters and Oil Drainage
Changing filters and oil keeps your Kubota running well. Dirty oil or clogged filters can damage the engine.
Lower the bucket to the ground and turn off the engine. Remove the key and let the machine cool.
Remove the rear panel and lift the seat to find the oil drain bolt, oil fill port, and oil filter.
Place an oil pan under the drain bolt. Remove the bolt with a 12mm wrench and let the oil drain out.
Reinstall the drain bolt tightly.
Use a filter wrench to remove the old oil filter. Clean the mounting surface.
Rub clean oil on the new filter’s seal. Install the new filter by hand, then tighten it 3/4 turn more with the wrench.
Fill the engine with new oil. Use a funnel and check the dipstick for the correct level.
Replace the oil fill cap and clean up any spills.
Reinstall the rear cover and seat.
Start the engine and let it idle. Check for leaks around the filter and drain bolt.
Component | Initial Replacement Interval | Subsequent Replacement Interval |
|---|---|---|
Engine oil and filter | After 50 hours | Every ~200 hours |
Transmission fluid | After 50 hours | Every 300 hours |
Hydraulic oil filter | Cleaning at 50 hours | Every 300 hours |
Tip: Always use the right Kubota mini excavator part for filters and oil. Follow the Kubota kx040-4 manual for oil type and intervals.
Track Idlers
Track idlers keep the track tight and help it move smoothly. If you need to replace an idler, follow these steps:
Remove the cover from the side of the track frame to reach the grease fitting.
Unscrew the fitting (not the grease fitting itself) to release grease and reduce tension.
Push the idler in. Grease will come out, and the track will compress.
Slide out the idler wheel unit.
Inspect the bearing for looseness or wear.
Prepare the new idler or repair parts. Fit them into place, making sure to add grease holes for lubrication.
Assemble the idler with thrust washers and snap rings. Modify washers if needed for a snug fit.
Reinstall the idler and pump grease back in to tighten the track.
Put a track back on using the excavator bucket if you have experience.
Test the movement and adjust the track tension as needed.
Tip: Always use genuine Kubota parts for idler replacement. Check your Kubota kx040-4 manual for detailed instructions.
By following these steps, you can complete repairs and replacements on your Kubota mini excavator safely and correctly. Always use quality parts and refer to your manual for each procedure. This keeps your machine working hard and lasting longer.
Test and Troubleshoot Parts
Initial Testing
After you finish replacing parts on your Kubota mini excavator, you need to test the machine before returning to work. Start the engine and let it idle for a few minutes. Watch the control panel for warning lights. Move the boom, arm, and bucket through their full range. Drive the excavator forward and backward to check the track alignment. Listen for odd noises or vibrations. If you replaced the track, make sure it stays centered and does not slip off. Test the hydraulic system by lifting and lowering the boom. Check that all movements feel smooth and strong.
Tip: Always test the excavator in a safe, open area before using it on a job site.
Check for Leaks or Issues
You must inspect your Kubota mini excavator for leaks or problems after every part replacement. Clean the hydraulic system area with a degreaser and dry it with compressed air. This makes it easier to spot leaks. Run the machine and look for fresh hydraulic fluid around the boom, arm, and track. Focus on cylinder seals, hose fittings, and rotary unions. Use a torque wrench to tighten any loose fittings. If you see fluid, stop the machine and depressurize the system before making repairs. Replace damaged hoses with ones that match the original size and pressure rating. Monitor fluid levels and pressure readings. Listen for strange sounds or warning lights. Check the track for proper tension and alignment. Clean the undercarriage often, especially after working in mud or snow, to prevent dirt from causing damage.
Common Leak Points | What to Inspect |
|---|---|
Hydraulic cylinder seals | Look for drips or wet spots |
Hose fittings | Check for loose connections |
Track area | Watch for fluid near rollers |
Troubleshooting Common Problems
If your Kubota mini excavator shows warning lights or acts strangely after a repair, follow these steps:
Check hydraulic fluid levels for leaks or contamination.
Inspect seals, hoses, and connection points for cracks or wear.
Clean or replace hydraulic filters.
Listen for grinding, clicking, or whining sounds.
Watch the track for jerky or uneven movement.
Look for overheating signs like burning smells or hot fluid.
Use a troubleshooting checklist to narrow down the issue.
Inspect the final drive housing for leaks or damage.
Fix problems quickly to avoid bigger repairs.
Ask a technician for help if you cannot solve the issue.
Note: Early detection and quick action keep your Kubota mini excavator running smoothly and help you avoid costly downtime.
You can keep your Kubota mini excavator working well if you follow each step for changing parts. Always use the right tools. Wear safety gear every time. Check your manual before you begin. Doing regular maintenance helps stop breakdowns. Good routines make your machine last longer.
Component | Key Maintenance Actions | Long-term Benefits |
|---|---|---|
Engine | Change oil and filters, cool the engine | The engine lasts longer and works better |
Hydraulic System | Look at seals, change filters | Fewer problems and steady work |
Tracks & Accessories | Fix tension, change old parts | The machine moves safely and works well |
If you do these things, your Kubota will work smoothly and stay strong for many years.
FAQ
How often should you replace the rubber tracks on your Kubota mini excavator?
You should check your rubber tracks every 500 hours. Replace them if you see cracks, missing lugs, or if the track slips often. Always follow the maintenance schedule in your Kubota manual.
Can you use aftermarket parts instead of genuine Kubota parts?
You can use aftermarket parts, but always check reviews and warranties. Genuine Kubota parts fit better and last longer. They also help you keep your machine under warranty.
What should you do if your excavator leaks hydraulic fluid after a repair?
Stop the machine right away. Clean the area and check all fittings and hoses. Tighten loose connections. Replace damaged parts. If you cannot find the leak, call a technician for help.
Do you need special tools to replace bushings or tracks?
You need basic hand tools like wrenches and hammers. For bushings, a bushing press helps. For tracks, a pry bar and grease gun work best. Always check your manual for tool recommendations.
How do you know if a filter needs changing?
Look for warning lights on your control panel. If your engine runs rough or loses power, check the filter. Replace it if it looks dirty or clogged. Always follow the service intervals in your manual.
