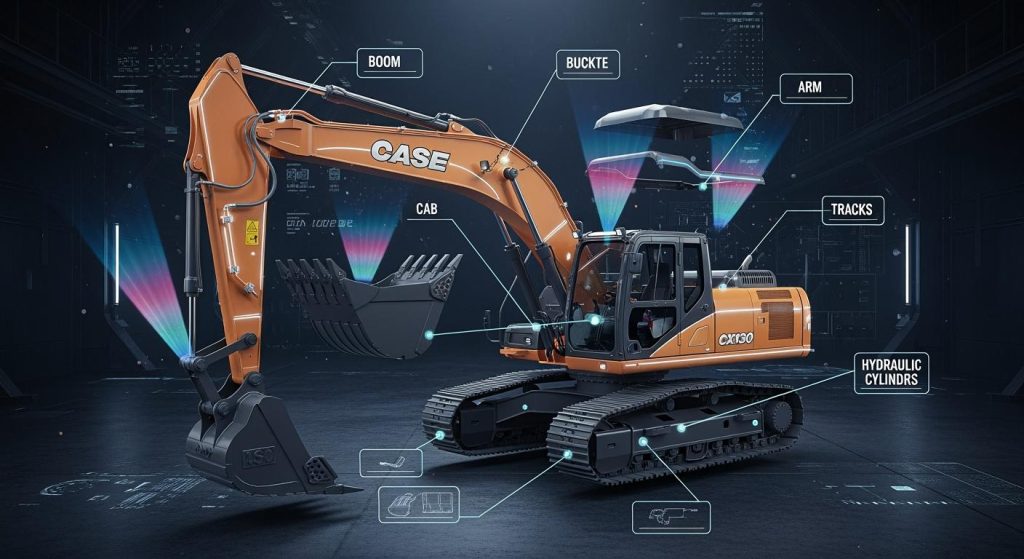

You need to know the main systems and parts of your Case CX130 excavator. This helps you keep it working well. Each system is important. The engine gives the machine its power. The hydraulic system lets you dig, lift, and grade easily. The undercarriage helps the excavator move on rough ground. The cab keeps you safe and comfortable. Bucket tools help you do many different jobs. Look at the table below to see what each part does:
System/Part | Function |
|---|---|
Engine | Gives power with Isuzu AM-4JJ1X turbocharged 4-cylinder diesel engine |
Hydraulic System | Lets you dig, lift, and grade smoothly |
Undercarriage | Helps the machine move with steel tracks and other parts |
Operator Cab | Makes it comfortable with climate control and easy-to-use controls |
Bucket Tools | Lets you use different tools for many jobs |
You should watch the Case CX130 excavator parts that work the most. Knowing what each part does helps you find problems early. This keeps your machine working its best.
Key Takeaways
Learn about the main systems in the Case CX130 excavator. Knowing this helps you spot problems early. It also helps keep the machine working well.
Check hydraulic parts like hoses and filters often. Good hoses and filters stop big problems. They also help the machine run smoothly.
Take care of the engine by doing regular maintenance. Change the oil and filters when needed. This helps the engine last longer. It also saves fuel.
Look at the undercarriage for damage or wear. Clean and check it often to avoid expensive fixes. This also helps the machine move better on rough ground.
Use the correct buckets and attachments for each job. This makes the machine more useful. It helps you do many kinds of work well.
Case CX130 Overview
Engine Specs
The Case CX130 excavator gives you strong power. It uses an Isuzu AM-4JJ1X turbocharged 4-cylinder diesel engine. This engine lets you work longer without using much fuel. You also meet Tier 3 emissions rules, so you help the environment. Check the table below for the main engine specs:
Specification | Value |
|---|---|
Engine | Isuzu AM-4JJ1X turbocharged 4-cylinder diesel |
Horsepower | 99 HP (74 kW) |
Gross Power | 110 HP |
Net Power | 106 HP |
Displacement | 239 cu in |
Aspiration | Turbocharged and aftercooled |
Fuel Efficiency | Excellent fuel economy, minimal emissions |
This engine is good for hard jobs. The turbocharger gives extra power when needed. The design helps you save money on fuel.
Digging Depth
It is important to know how deep your excavator can dig. The Case CX130 is great for this. It can dig as deep as 5.77 meters (18.9 feet). This helps you do trenching and foundation work easily. Here is a list to compare digging depths:
Case CX130: Maximum digging depth of 5.77 m (18.9 ft)
Volvo EC140LCM: Maximum digging depth about 14.5 ft
Caterpillar 312C L: Maximum digging depth around 14.5 ft
Volvo EC140BLCM: Similar digging depth
The Case CX130 can reach deeper than others. This means you finish work faster and with less effort.
Hydraulic Features
The Case CX130 has a quick hydraulic system. You can move the boom, arm, and bucket smoothly. The high flow rate is 222 liters per minute (58.6 gallons per minute). This helps you dig, lift, and grade with control. You will notice this when you dig or lift heavy things. The hydraulic system makes grading easy and accurate. You get more work done because the controls react fast. This system helps you work safely and well every day.
Tip: Check hydraulic fluid and hoses often to keep your excavator working well.
Main Systems
Hydraulic System
You control the power of your Case CX130 with its advanced hydraulic system. This system lets you dig, lift, and move materials with ease. The main parts work together to give you smooth and precise operation:
Main and auxiliary cylinders help you lift and dig.
Control valves manage the flow of hydraulic fluid, so each movement stays accurate.
Pumps create the pressure needed for all hydraulic actions.
Hydraulic quick couplers let you switch tools fast.
Hoses carry hydraulic fluid between parts.
Seal kits stop leaks and keep the system strong.
Tip: Check hoses and seals often. Small leaks can lead to big problems.
Engine System
The engine system gives your excavator its strength. The Isuzu AM-4JJ1X turbocharged diesel engine powers every job. You get reliable starts and steady performance. The engine works with the cooling and fuel systems to keep running in tough conditions. You save fuel and meet emissions standards. Regular oil and filter changes help your engine last longer.
Undercarriage
The undercarriage supports your machine and helps it move over rough ground. Each part has a special job:
Track shoe carries the weight of the excavator.
Track chain assembly links the track plates into a strong loop.
Track tensioner keeps the track tight for smooth movement.
Track rollers support the track and lower ground pressure.
Carrier roller guides the track in a straight line.
Sprocket sends power to the tracks.
Idler helps guide the track and reduces wear.
Electrical & Cab
You stay comfortable and safe in the Case CX130 cab. The cab gives you plenty of space and easy entry. You use joystick controllers and a climate control system that adjusts to sunlight. The air-ride seat and adjustable armrests reduce fatigue. A 7-inch color monitor shows the rear camera view, so you see what is behind you at all times. The electrical system includes alternators, relays, switches, monitors, and wiring harnesses. These parts keep your controls and displays working every day.
Bucket & Tools
You finish many jobs with the right bucket and tools. The quick coupler lets you change attachments fast. You can use digging buckets, grading buckets, or special tools for different tasks. Each tool fits the hydraulic system for smooth operation. Keep your buckets and attachments clean and check for wear to get the best results.
Case CX130 Excavator Parts
It is important to know the main case cx130 excavator parts. This helps your machine work well every day. Each part does something special. When you know what each part does, you can find problems early. This keeps your excavator in good shape. You can use exploded diagrams and manuals to help you find parts. Many people trust YNF Machinery for replacement parts that last.
Hydraulic Components
The hydraulic system gives your excavator power and smooth moves. You use hydraulic power to control the boom, arm, and bucket. Here are the main hydraulic components you should know:
Hydraulic Pumps: These pumps make pressure to move fluid in the system.
Control Valves: These valves send hydraulic fluid to different parts.
Hydraulic Cylinders: These cylinders move the boom, arm, and bucket.
Solenoid Valve Block: This block uses electric signals to control fluid flow. It helps you switch between functions fast.
Swing Lock: This lock stops the top from moving when you do not want it to swing.
Power Boost: You use this when you need more force for hard digging.
Travel Speed Controls: These controls let you change how fast the excavator goes.
Hydraulic Hoses and Fittings: These carry fluid between all the hydraulic parts.
Hydraulic Oil Filter: This filter keeps the fluid clean and protects the system.
Tip: Check your hydraulic hoses and seals often. Leaks can cause big trouble if you do not fix them soon.
Engine Components
The engine gives your excavator the power it needs. You must keep it in good shape for strong work. The main engine in the Case CX130 is the Isuzu AM-4JJ1X turbocharged 4-cylinder diesel. Here is a table that shows the key engine parts and how they help with care and reliability:
Component | Details |
|---|---|
Engine | Isuzu AM-4JJ1X turbocharged 4-cylinder diesel |
Common Replacement Parts | Turbochargers, injectors, cooling system parts |
Oil and Filter Changes | Every 250 hours |
Hydraulic Fluid and Filter | Every 500 hours |
Fuel Filter | Every 250–500 hours, depends on fuel quality |
You should change the oil and filters on time. Clean fuel and good cooling help your engine last longer. Manuals and exploded diagrams help you find each part when you need to fix or replace it.
Undercarriage Parts
The undercarriage holds up your excavator and lets it move on rough ground. You need to watch these parts because they wear out faster than others. The main undercarriage parts are:
Track Shoes: These plates touch the ground and hold the machine’s weight.
Track Chains: These connect the track shoes and make a loop around the undercarriage.
Track Rollers: These rollers hold up the track and help it move.
Carrier Rollers: These keep the track straight on top of the undercarriage.
Sprockets: These wheels move the track forward or backward.
Idlers: These guide the track and help keep it tight.
Track Tensioner: This part keeps the track tight for smooth moves.
You can use exploded diagrams to see how each part fits together. If you need new case cx130 excavator parts for the undercarriage, YNF Machinery has many choices.
Electrical Parts
The electrical system helps you control and check your excavator. It also keeps you safe and makes fixing problems easier. Here is a table that shows the main electrical parts and what they do:
Electrical Component | Role in Diagnostics and Operation |
|---|---|
Controller Calibration and Diagnostic System | Makes sure the excavator works right and helps with troubleshooting. |
Work Mode Switch | Lets you pick different work modes for better use. |
Auto Mode Switch | Changes settings by itself for best performance. |
Buzzer Stop Switch | Warns you about big problems that need quick action. |
Engine Controller | Controls engine work and checks for problems. |
Hydraulic Oil Temperature Sensor | Checks hydraulic fluid temperature for safe work. |
Fuel Sensor | Shows fuel levels and helps with fuel use. |
Battery Relay | Controls battery power and helps with battery checks. |
Transistor Output | Checks electrical output for different parts. |
Diagnostic Mode Flow Chart | Helps you fix problems step by step. |
Coolant Temperature Distribution | Keeps engine at a safe temperature. |
Maintenance Timer | Tracks when you need to do service. |
You can find these case cx130 excavator parts in wiring diagrams and manuals. If you have a problem, the diagnostic system helps you find it fast.
Bucket & Attachments
You can use many buckets and attachments to do more jobs with your excavator. Each tool helps you do a special job. Here are some common choices:
Digging Buckets
Ditching Buckets
Hydraulic Thumbs
Mechanical Thumbs
Compactors/Drivers
Rakes
Rippers
Asphalt Cutters
Cone Splitters
You can change these tools fast with a hydraulic quick coupler. This makes your excavator ready for many jobs. Manuals and exploded diagrams show you how to put on and care for each tool. If you need new case cx130 excavator parts or attachments, YNF Machinery can help you find the right one.
Note: Always check your manuals and diagrams before you fix or change any part. This helps you stay safe and keeps your machine working well.
Common Replacement Parts
You should know which case cx130 excavator parts wear out first. This helps you fix things before they break. It keeps your machine working well. How fast parts wear out depends on how you use the excavator. It also depends on how you take care of it. The quality of replacement parts matters too. YNF Machinery has good choices for these parts.
Hydraulic Wear Items
Hydraulic parts work hard every day. You need to check these parts often:
Hydraulic pumps
Hydraulic hoses
Hydraulic cylinders
Seals
Hydraulic filters
The table shows how long these parts last:
Hydraulic Component | Typical Lifespan (Hours) |
|---|---|
Hydraulic Pumps | 5,000 to 10,000 |
Hydraulic Hoses | 1,000 to 2,000 |
Hydraulic Cylinders | Up to 10,000 |
Seals | 2,000 to 5,000 |
Hydraulic Filters | 500 to 1,000 |
Tip: Look at hoses and seals often. Change filters when needed to keep the hydraulic system strong.
Engine Wear Items
Engine parts need regular care. You should change these parts to keep your excavator running well:
Component | Replacement Interval |
|---|---|
Oil and Filter Changes | Every 250 hours |
Hydraulic Fluid and Filter | Every 500 hours |
Fuel Filter | Every 250–500 hours |
Turbochargers | As needed |
Injectors | As needed |
Cooling system components | As needed |
Change oil and filters on time. Watch turbochargers and injectors for problems. Clean cooling parts help the engine last longer.
Undercarriage Wear Items
Undercarriage parts get used in tough places. You should check these case cx130 excavator parts often:
Steel tracks
Rollers
Idlers
Sprockets
Parts wear faster on rocky ground or if tracks are not straight. To stop early wear:
Clean the undercarriage often.
Check for damage or uneven wear.
Keep track tension right.
Note: Clean the undercarriage every day. Dirt can make parts wear out faster.
Electrical Wear Items
Electrical parts help you start and control your excavator. These parts wear out most:
Battery and battery relay
Starting motor
Alternator
Fuse
If warning lights come on or it is hard to start, check these parts first. Make sure wires and connections are tight and clean.
Bucket Wear Items
Buckets and attachments wear out from digging and lifting. Look for cracks, bent edges, or loose pins. Change worn buckets and tools to keep your excavator safe. YNF Machinery can help you find the right case cx130 excavator parts and attachments.
Tip: Check buckets and tools before each job. Change broken items fast to stop bigger problems.
Maintenance Tips
Hydraulic System
To keep your hydraulic system strong, check for leaks often. Make sure the fluid stays clean. Look at hoses, cylinders, and seals for damage or wear. Change the hydraulic filters when the manual says to. Always use the right hydraulic oil for your machine. When you tighten fittings, follow the torque numbers in your manual. Before you work on the system, let out all the pressure.
Tip: Wipe dirt away from the hydraulic tank cap before you open it. This keeps dirt from getting inside.

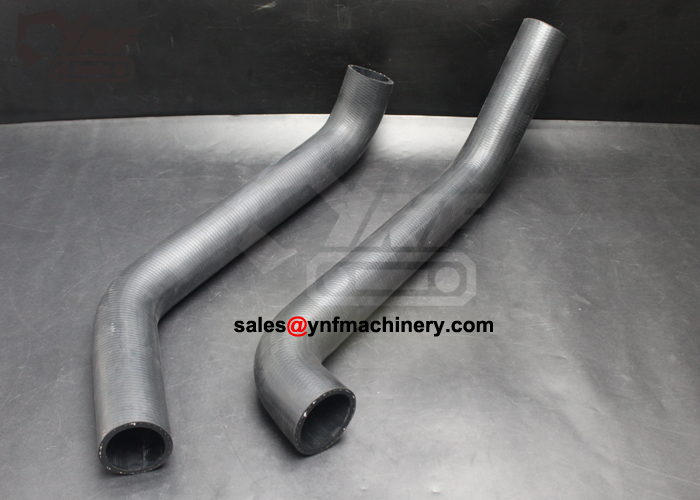

Engine & Cooling
Your engine and cooling system need regular care to work well. Follow this schedule to keep them in good shape:
Maintenance Task | Interval |
|---|---|
Oil and Filter Changes | Every 250 hours |
Hydraulic Fluid and Filter | Every 500 hours |
Fuel Filter | Every 250–500 hours |
Check the coolant level often and look for leaks. Clean the radiator and coolers so the engine does not get too hot. Use a torque wrench to tighten bolts to the numbers in your manual.
Undercarriage
Clean your undercarriage every day to protect it. Take off mud and rocks so nothing gets damaged. Check the track tension a lot and fix it if needed. Look for worn rollers, idlers, and sprockets. Change worn parts before they break and cause bigger problems.
Look at and clean tracks at the start of each shift.
Change track tension for your work.
Measure wear on rollers and bushings.
Note: Cleaning the undercarriage keeps debris from causing expensive repairs.
Electrical & Cab
Keep your excavator safe by checking the electrical system. Use a multimeter to test sensors and connections. Make sure the battery is clean and tight. Look at all the wires for damage. Adjust the mirrors and keep the cab clean so you are comfortable.
Check all fuses and relays.
Clean display screens and air vents once a month.
Bucket & Attachments
Buckets and tools need checks to work well. Wash attachments after you use them. Grease all the fittings. Tighten bolts and change worn teeth or edges. Store buckets inside when not in use to stop rust.
Look for leaks in hoses and fittings.
Check that locking parts work right.
Grease pins and bushings.
Tip: YNF Machinery has good replacement parts to keep your Case CX130 running well.
If you know what each part does, your Case CX130 works well. Checking parts often and reading your manual helps you find problems early. This easy habit saves you both time and money. The table below shows when to check or change important parts and what to do if something is wrong:
Component | Maintenance Interval |
|---|---|
Engine Oil & Filter | Replace every 500 hours |
Hydraulic Oil & Filters | Change every 1,000 hours |
Air Filter | Inspect every 250 hours |
When you learn about your machine, you stop breakdowns before they happen. This also helps you avoid spending a lot on repairs. YNF Machinery has good parts to help your excavator stay in great condition.
FAQ
How often should you check hydraulic hoses on your Case CX130?
You should check hydraulic hoses before each workday. Look for leaks, cracks, or bulges. Early checks help you avoid bigger problems and keep your excavator safe.
What is the best way to find the right replacement part?
Use your Case CX130 manual and exploded diagrams. Match part numbers carefully. YNF Machinery offers reliable replacement parts for your excavator.
Why does your excavator lose power during digging?
Low hydraulic fluid, clogged filters, or worn engine parts can cause power loss. Check fluid levels and filters first. Replace worn parts as needed.
Can you use different buckets and attachments on your Case CX130?
Yes, you can use many buckets and attachments. The quick coupler lets you switch tools fast. Always check your manual for compatibility and safety tips.
