When you use heavy equipment, it is important to know the best parts of an excavator. This knowledge helps you stay safe and do your job better. The best parts excavator owners should be familiar with include the undercarriage, house, counterweight, boom, arm, bucket, engine, hydraulic system, and operator cab. Each of these best parts excavator components serves a unique purpose. Some parts lift heavy loads, while others help keep the machine stable. By understanding the best parts excavator machines have, you can spot dangers and prevent accidents before they happen.
Safety Hazard | Impact on Safety Statistics |
|---|---|
Mechanical injuries | These cause the most accidents in the machinery industry. |
Rollover incidents | These can cause bad injuries or death, especially on bumpy ground. |
Operator blind spots | These make crashes more likely and lower safety. |
Improper load distribution | This makes rollovers more likely and hurts safety. |
Lack of training | This means operators are not ready and accidents happen more. |
Knowing the best parts excavator equipment has can help you work more efficiently and make every job site safer.
Key Takeaways
Knowing the main parts of an excavator helps you work safely. The undercarriage, house, and counterweight are important parts. This knowledge helps you use the machine well.
Taking care of the undercarriage stops breakdowns. It makes your excavator last longer. This saves you money over time.
Picking the right bucket size and type helps you work better. It also keeps you safe. You can finish jobs more easily.
Learning about the hydraulic system and cab features helps you control the excavator. It makes you more comfortable. You can focus and work better.
Using attachments like quick couplers and grapples makes your excavator more useful. It can do many different jobs well.

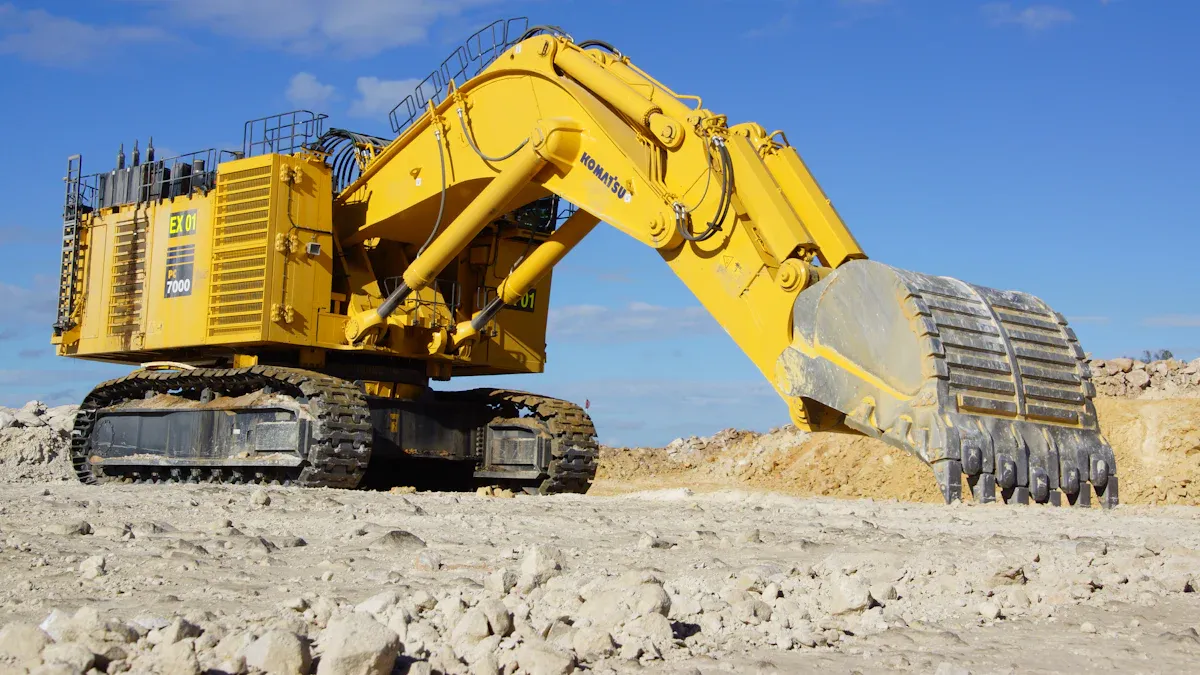

Main Components of an Excavator
Excavators have a few main parts. These parts work together to give power, stability, and control. If you know these parts, you can use the machine safely. You can also work faster and better. The three most important parts are the undercarriage, house, and counterweight. Each part does a special job. All together, they make up the base of every excavator.
Component | Function |
|---|---|
House (Superstructure) | Holds the operator’s cab and main power systems. It can turn all the way around. |
Holds up the machine’s weight. It keeps the excavator steady and helps it move. | |
Counterweight | Balances the machine. It stops the excavator from tipping when lifting heavy things. |
Undercarriage

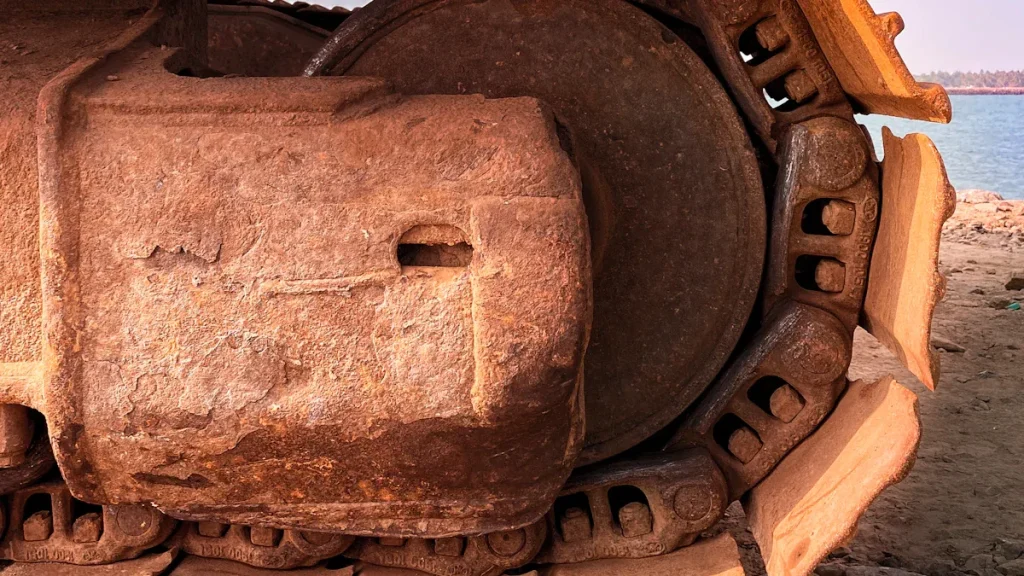

The undercarriage is the bottom part of the excavator. It holds up the whole machine and helps it move on different ground. Most undercarriages have tracks. Tracks grip the ground and keep the excavator steady. Parts like chains, track shoes, and rollers are made from strong steel. This makes the undercarriage tough for hard jobs. Track shoes help the excavator stay steady on soft or bumpy ground. Rollers and idlers spread out the weight and keep the tracks tight.
Picking a good undercarriage helps your excavator last longer. Clean it often and check it every day. Look at the tracks, rollers, and chains for damage. Keeping the undercarriage clean and oiled stops breakdowns. It helps your machine work well.
The undercarriage gives grip and support on all ground.
It holds the excavator’s weight and lets you move it.
Taking care of the undercarriage stops accidents and saves money.
House
The house sits on top of the undercarriage. It holds the cab, engine, and hydraulic system. The house can spin all the way around. This lets you dig, lift, and dump in any direction. You do not need to move the whole machine. This makes work faster and easier.
The house is where you control the excavator. You sit in the cab and use the controls.
The cab is made for comfort and safety. Many cabs have ROPS to protect you if the machine tips.
Good cab windows help you see better and avoid accidents. Noise systems inside the cab help you focus.
Feature | Impact on Visibility and Safety |
|---|---|
Improved Visibility | Lets you see around you and lowers accident risk. |
ROPS-compliant Cab | Keeps you safe if the excavator rolls over. |
Noise Dampening Systems | Makes it quieter so you can pay attention. |
Tip: Always look for blind spots before moving the excavator. Some areas are hard to see, even with good windows.
Counterweight
The counterweight is a heavy block on the back of the house. Its job is to balance the excavator when lifting or moving heavy things. Without it, the machine could tip over. This is more likely when the arm is stretched out.
Counterweights are made from heavy metal like cast iron. This makes them strong enough to balance the machine.
Makers choose the size and weight based on how much the excavator can lift.
A good counterweight keeps the excavator steady, even on hills or rough ground.
The counterweight pushes back so the excavator does not tip. Make sure it is installed right and fits your machine.
When you look at the main parts—the undercarriage, house, and counterweight—you see how they help each other. The undercarriage gives a strong base and movement. The house lets you control the excavator and work in any direction. The counterweight keeps everything balanced and safe. These parts are the backbone of every job you do.
Essential Parts of an Excavator: The Working Group
The working group has three main parts: the boom, arm, and bucket. These essential excavator parts help the machine dig and move things. When you use an excavator, you control the boom and arm to reach out, dig holes, and pick up dirt or rocks. Each part does something special, but they all work together so you can finish your work fast and safely.
The boom, arm, and bucket use hydraulic cylinders. These cylinders change pressure when you dig. The bucket cylinder does most of the digging work. All these parts work together. This teamwork helps you dig in hard dirt and lift heavy things easily.
Boom
The boom is a big, slanted arm that attaches to the house. You use the boom to lift things and reach out over the ground. The boom moves up and down. This gives you the height and reach you need for digging or lifting. Hydraulic cylinders help the boom move. They let you put the bucket in the right spot.
Component | Function | Description |
|---|---|---|
Boom | Lift and reach | Provides primary lift and reach for the excavator |
Excavators come in many sizes, and so do their booms. Here is a table that shows how long booms usually are:
Excavator Class | Weight Range (tons) | Boom Length Range (meters) | Boom Length Range (feet) |
|---|---|---|---|
Mini Excavators | 0.7 to 8.5 | 1.5 to 3.5 | 5 to 11.5 |
Compact Excavators | 8.5 to 12 | 3.5 to 4.5 | 11.5 to 15 |
Mid-size Excavators | 12 to 45 | 4.5 to 7 | 15 to 23 |
Large Excavators | Over 45 | Exceeding 7 | Exceeding 23 |
Longer booms help you reach farther. This is good for deep holes or hard-to-reach places.
You can pick a boom length that fits your job. This helps you stay safe.
Arm (Stick/Dipper)
The arm, also called the stick or dipper, connects the boom to the bucket. You use the arm to move the bucket closer or farther away. This controls how far you can reach and how deep you can dig. The arm is an important part of the boom and arm system.
Term | Description |
|---|---|
Arm | General term for the component connecting the boom to the bucket. |
Stick | Alternative name for the arm, used interchangeably. |
Dipper | Another alternative name for the arm, often used in different regions. |
The stick connects to the boom and gives you more reach.
You use the arm to control how deep you dig.
The way the arm is made changes how deep you can dig and how much you can lift.
Design Aspect | Impact on Performance Metrics |
|---|---|
Digging Arm Geometry | Affects productivity and fuel consumption |
Pin Positions | Influences digging depth and reach |
Arm Length | Longer arms allow for greater digging depth |
A longer arm lets you dig deeper holes. This is helpful for jobs like putting in pipes or digging foundations. But a longer arm may not lift as much or dig as hard. Pick the right arm length for your job to get the best results.
The right arm helps you dig in the right spot.
You can use different tools with the arm to do more jobs.
Bucket
The bucket is the tool at the end of the arm. You use the bucket to dig, scoop, and move dirt or rocks. Buckets come in many shapes and sizes. Each one is made for a certain job. The bucket cylinder gives the bucket its digging power. This makes it very important for digging.
Component | Function | Description |
|---|---|---|
Bucket | Digging | Performs the actual digging and material handling tasks |
Here are some common buckets and what they do:
Digging bucket: Good for most building and yard work.
Rock bucket: Has strong teeth for breaking hard ground.
Utility bucket: Helps you avoid pipes when digging.
Grading bucket: Smooths and finishes soft dirt.
Tilt ditch cleaning bucket: Works well on slopes.
V bucket: Makes v-shaped ditches for pipes or cables.
Frost bucket: Breaks up frozen or very hard ground.
Micro trenching bucket: Digs small trenches for cables.
Skeleton bucket: Sifts rocks out of dirt.
Rake riddle bucket: Digs up roots and lets fine dirt fall through.
Factor | Impact on Efficiency |
|---|---|
Bucket Capacity | Bigger buckets move more dirt at once, which is faster for loose dirt. |
Bucket Design | Some buckets are made for rocks or other tough jobs. |
Compatibility with Excavator | The right size keeps the machine safe and works better. If the bucket is too big or small, it can be unsafe and slow you down. |
Picking the right bucket size keeps your machine steady and safe.
Sometimes, a smaller bucket is faster and saves fuel.
The right bucket shape and size help you finish your work quickly and easily.
Tip: Always use a bucket that fits your excavator and the job. If the bucket is too big or too small, it can slow you down or make things unsafe.
When you know about the essential parts of the excavator working group, you can use your machine better. The boom, arm, and bucket work together to give you control and power. These parts help you dig, lift, and move things with confidence on any job site.
Excavator Parts: Power and Control
Engine
The engine is the main part of an excavator. It gives the power to dig, lift, and move heavy things. Most excavators use diesel engines because they are strong and last a long time. Some new excavators use electric motors. Electric motors save more energy than diesel engines. Look at the table below to see different engine types and how much fuel they use:
Engine Type | Engine Model | Fuel Efficiency (L/h) | Common Applications |
|---|---|---|---|
Diesel Engines | Kubota D902 | 2.5 | Landscaping, Construction |
Diesel Engines | Yanmar 3TNV88C | 2.7 | Site Preparation |
Diesel Engines | Perkins 804D-33T | 2.6 | Agriculture, Utility Work |
Pick the right engine size for your job. Bigger engines help you dig deeper and move more dirt. This also keeps the hydraulic system safe and saves fuel.
Power Source Type | Energy Efficiency Range | Notes |
|---|---|---|
Electric Motor | 43% – 71% | More efficient than fuel engines |
Diesel Engine | N/A | Used with hydraulic systems |
Hydraulic System
The hydraulic system lets you control the boom, arm, and bucket. Pumps and cylinders work together to move these parts. You can dig, lift, and turn the house easily. Hydraulic motors help the house spin and move the tracks on some excavators.
Hydraulic systems give power for digging and moving.
You can control the arm and bucket exactly.
Cylinders make movements strong and accurate.
Motors move the top part and tracks, so you control speed and direction.
Important hydraulic parts are pumps, cylinders, valves, hoses, and reservoirs. Each part helps you use the excavator safely and well.
Operator Cab
You spend a lot of time in the operator cab. Comfort and safety are important. New cabs have big windows so you can see better. Noise-dampening features help you focus. Seats can be adjusted and have air suspension. Heating and air conditioning keep you comfortable in any weather. Joystick controls and easy layouts help you work without getting tired.
Seats can be raised or lowered and support your back.
Armrests and seat suspension stop shaking.
Climate controls keep you awake and comfortable.
A good cab helps you work safely and get more done.
Control Panel
The control panel is where you check and control everything. You use it to see how the engine is working and check hydraulic pressure and fuel. Big LCD screens show you data right away. Easy layouts help you find what you need fast. Advanced panels help you find problems early and keep your excavator working well.
Tip: Always look at the control panel before you start. This helps you find problems early and avoid delays.
Best Parts Excavator: Attachments & Versatility
Attachments make excavators much stronger and more useful. You can use many tools for different jobs. This makes work faster and safer. Adding attachments lets one excavator do many tasks. You can dig, lift, break, and move things with just one machine.
You can change attachments fast when the job changes. This saves time and helps you get more done on busy sites.
Quick Coupler
A quick coupler lets you switch tools very fast. You do not need special tools or extra people. Most operators save a lot of time with quick couplers. Some save even more than half their time. Sites with quick couplers get more work done. You can use tools from many brands, so your excavator can do more jobs. YNF Machinery has quick couplers that fit many excavators.
Grapple
A grapple helps you pick up odd-shaped things. You can grab logs, scrap, or trash easily. Grapples give you good control for hard jobs. They help in forests and when tearing down buildings. You can move big or strange items safely. A grapple makes your excavator ready for tough work.
Auger
An auger lets you drill holes in the ground. You can use it for fence posts or planting trees. It is also good for building foundations. Augers come in many sizes for different dirt. You can put an auger on your excavator and dig holes fast. This saves you time and hard work on every job.
Breaker
A breaker, or hydraulic hammer, breaks hard things like concrete or rock. You can use it to tear down buildings or get a site ready. Breakers make your excavator strong for the hardest jobs. You can clear old stuff or dig through tough ground easily.
Attachment | Main Use | Benefit for Excavator |
|---|---|---|
Quick Coupler | Fast attachment changes | Saves time, boosts versatility |
Grapple | Grabbing odd-shaped materials | Precise control, safe handling |
Auger | Drilling holes | Quick, easy digging |
Breaker | Breaking hard surfaces | Powerful demolition |
YNF Machinery sells strong attachments and tracks for excavators. You can trust their products to keep your excavator working well.
Knowing the main parts of an excavator helps you stay safe. You can also get more work done. If you learn how the boom, arm, bucket, and hydraulic system work, you use the excavator better. When the operator is comfortable, it is easier to focus. Good visibility helps you see what is around you. This keeps you safe from accidents. Training with new tools like VR helps you learn faster. You become a better excavator operator.
When the operator feels good, safety gets better.
Seeing clearly helps you avoid mistakes.
Learning about each part gives you more control and confidence.
Doing regular maintenance helps your excavator last longer. Your knowledge helps you spot problems early. The table below shows how maintenance helps:
Maintenance Benefit | Description |
|---|---|
Prevents Breakdowns | You find small problems before they get worse. |
Extends Equipment Lifespan | Lubrication and checks make your excavator last longer. |
Enhances Efficiency | A well-kept excavator works faster and better. |
Minimizes Downtime | Fewer surprises mean more time working and less time fixing. |
If you know your excavator well, you help your team stay safe. You also help finish jobs on time.
