Every day, you rely on the best parts excavator machines have to offer. These include the undercarriage, house, engine, boom, arm, bucket, and hydraulic system. Each of these best parts excavator components plays a crucial role in making sure your equipment operates efficiently and safely. The hydraulic system, one of the best parts excavator owners depend on, helps lift heavy loads. The boom and arm, also among the best parts excavator users need, keep the machine steady and move materials with precision. Understanding how these best parts excavator features work together can help prevent accidents and ensure your excavator runs smoothly.
Component | Impact on Safety Statistics |
|---|---|
Hydraulic System | Helps control how much you can lift |
Boom and Arm Length | Helps keep the machine steady and move loads |
Counterweight | Stops the machine from tipping over |
Load Positioning | Helps keep you from putting too much weight |
Knowing which are the best parts excavator for each job helps you avoid overloading the machine and allows you to maintain your excavator more effectively.
Key Takeaways
Learn about the main parts of an excavator. These are the undercarriage, house, engine, boom, arm, bucket, and hydraulic system. Each part helps the excavator work well and stay safe.
Check the undercarriage often for damage or wear. Doing this can stop expensive repairs. It also helps your excavator last longer.
Take care of the engine with regular maintenance. Change the oil every 250 hours. This helps your machine work better and break down less.
Pick the right bucket attachment for your task. The right bucket makes work faster. It also keeps your excavator from wearing out quickly.
Always look at the hydraulic system for leaks or damage. Keeping it in good shape helps the excavator run smoothly. It also makes it safer to use.
Essential Parts of an Excavator
Excavators need many important parts to work well and safely. It is important to know how each part works and why it matters. The most important excavator parts are the undercarriage, house, and engine.
Undercarriage
The undercarriage holds up the whole machine and lets it move. It has excavator tracks, track frame, rollers, idlers, sprockets, and track chains. These parts help your excavator stay steady and move around.
Tip: Check the undercarriage often to find problems early and save money.
How long the undercarriage lasts depends on the materials and care. Most companies use strong, heat-treated steel to make it last longer. The table below shows how the material affects how long it lasts:
Material Type | Effect on Durability |
|---|---|
High-grade, heat-treated steel | Superior resistance to wear, longer undercarriage lifespan |
Many things change how long your undercarriage will last:
Quality of parts
Type of ground
How you use and care for it
Track chains, rollers, and idlers can last from 2,000 to 7,000 hours. Reports show these parts get replaced the most:
Track Shoes: 2,000 to 3,000 hours
Rollers: 3,000 to 5,000 hours
Idlers: 4,000 to 6,000 hours
Sprockets: 3,000 to 4,000 hours
Track Chains: 3,000 to 5,000 hours
If you take care of your machine, these parts will last longer and give you the best parts excavator results.
House
The house sits above the undercarriage and holds the cab, engine, hydraulic system, and counterweight. You can turn the house all the way around, which helps you work better.
Safety features in the house keep you safe and help you do your job. Many excavators have:
Feature | Contribution to Safety |
|---|---|
360-degree visibility system | Helps you avoid collisions |
Camera systems | Eliminates blind spots |
Radar detection system | Distinguishes objects and people for better awareness |
Most excavator houses last about 10,000 hours. With good care, they can last up to 15,000 or even 20,000 hours. Well-kept excavators usually last between 7,000 and 10,000 hours, depending on the brand and model.
Engine
The engine gives power to your excavator and makes it work. Most excavators use diesel engines because they are strong and save fuel. Some use gasoline, electric, or hybrid engines, but diesel is the most common.
You must follow a strict plan to keep your engine working well. If you skip maintenance, your engine can break down early and not work as well. Here are some common jobs and how often you should do them:
Maintenance Task | Frequency (Operating Hours) |
|---|---|
Daily Inspections | Daily |
Engine Oil Change | Every 250 hours |
Hydraulic Fluid Change | Every 250 hours |
Air Filter Inspection and Cleaning | Every 250 hours |
Thorough Examination | Every 1,000 hours |
Doing regular maintenance stops breakdowns and keeps your excavator running well. Change engine oil filters every 250 to 500 hours and fuel injectors every 1,500 to 4,000 hours. Pistons can last more than 10,000 hours. Cooling fans and batteries need to be changed every few years.
When you know about these important parts and how they work together, you can keep your excavator running longer, stay safe, and get more work done.
Key Parts: Boom, Arm, Bucket
The key parts of an excavator—boom, arm (also called stick or dipper), bucket, and hydraulic cylinders—work together to make digging and dumping possible. You control these parts from the cab, and each one has a special job in the excavation process. When you understand how these parts connect and move, you can use your excavator more safely and efficiently.
Boom
The boom is the first large piece that extends from the main body of your excavator. It gives you the reach and height you need for excavation. The boom acts as the foundation for the arm and bucket. You use it to lift, lower, and move materials over obstacles. The boom must handle heavy loads and constant movement, so engineers design it to be strong and flexible.
Excavator Type | Weight Range (tons) | Boom Length Range (meters) | Boom Length Range (feet) |
|---|---|---|---|
Mini Excavators | 0.7 to 8.5 | 1.5 to 3.5 | 5 to 11.5 |
Compact Excavators | 8.5 to 12 | 3.5 to 4.5 | 11.5 to 15 |
Mid-size Excavators | 12 to 45 | 4.5 to 7 | 15 to 23 |
Large Excavators | Over 45 | Exceeding 7 | Exceeding 23 |
Note: Longer booms help you reach farther, but they can lower your lifting capacity. The design of the boom, the hydraulic system, and the counterweight all affect how much you can lift and how stable your machine stays.
Booms face a lot of stress during digging and lifting. Repeated use can cause fatigue in the metal. Engineers use special tests to make sure the boom will last a long time, even under tough conditions.
Arm (Stick/Dipper)
The arm, also called the stick or dipper, connects the boom to the bucket. You use the arm to move the bucket closer or farther from the machine. The arm gives you more control and precision when you dig or lift. You can extend or retract the arm to reach deep holes or far-off spots.
Factor | Impact of Longer Arm |
|---|---|
Digging Depth | Lets you dig deeper, which helps with big projects. |
Reach | Gives you more reach for wide job sites. |
Breakout Force | May lower the force you can use to break hard ground. |
Lifting Capacity | Usually lowers how much you can lift. |
Maneuverability | Shorter arms are easier to use in tight spaces. |
You should check the arm for wear and damage before each use. Look for cracks, worn pins, or loose bushings. Lubricate all moving parts often to keep the arm working smoothly. Clean off dirt and debris to prevent damage over time.

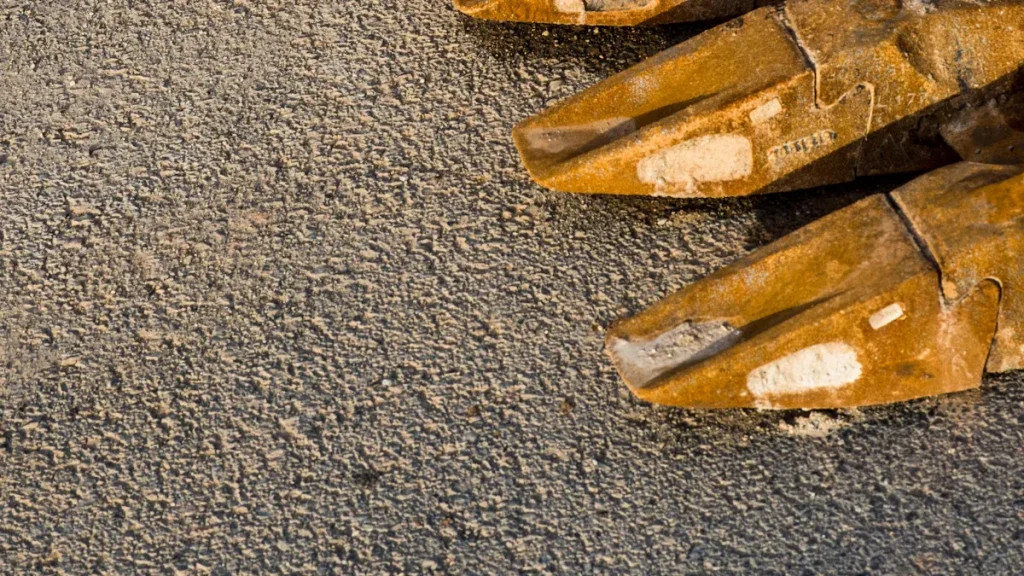

Bucket
The bucket is the main tool for digging and dumping. You attach it to the end of the arm. The bucket scoops, lifts, and moves soil, rocks, or other materials. The type and size of the bucket affect how well you can do your job. Some buckets are made for digging hard ground, while others are better for cleaning up or sorting materials.
Bucket Type | Specific Use |
|---|---|
Rock Bucket | For rocky ground, quarrying, and mining. |
Trenching Bucket | Narrow, for digging trenches for pipes and cables. |
Cleanup Bucket | Wide, for cleaning up and moving loose material. |
V Bucket | V-shaped, for breaking tough soils and making trenches. |
Skeleton Bucket | Sifts and sorts materials, good for landscaping. |
Riddle Bucket | Fine sorting, used in farming and land prep. |
Clamshell Bucket | Grabs and lifts, used in dredging and marine work. |
Ripper Bucket | Breaks hard surfaces, used for ground prep. |
High-Capacity Bucket | Moves large amounts, used in mining and earthmoving. |
Swamp Bucket | For soft, wet ground, used in wetlands. |
Tip: Choose the right bucket for your job. The right design helps you move materials faster and reduces wear on your machine.
The design of the bucket affects how quickly you can move materials. A bucket made for the right material will help you work faster and lower your maintenance costs.

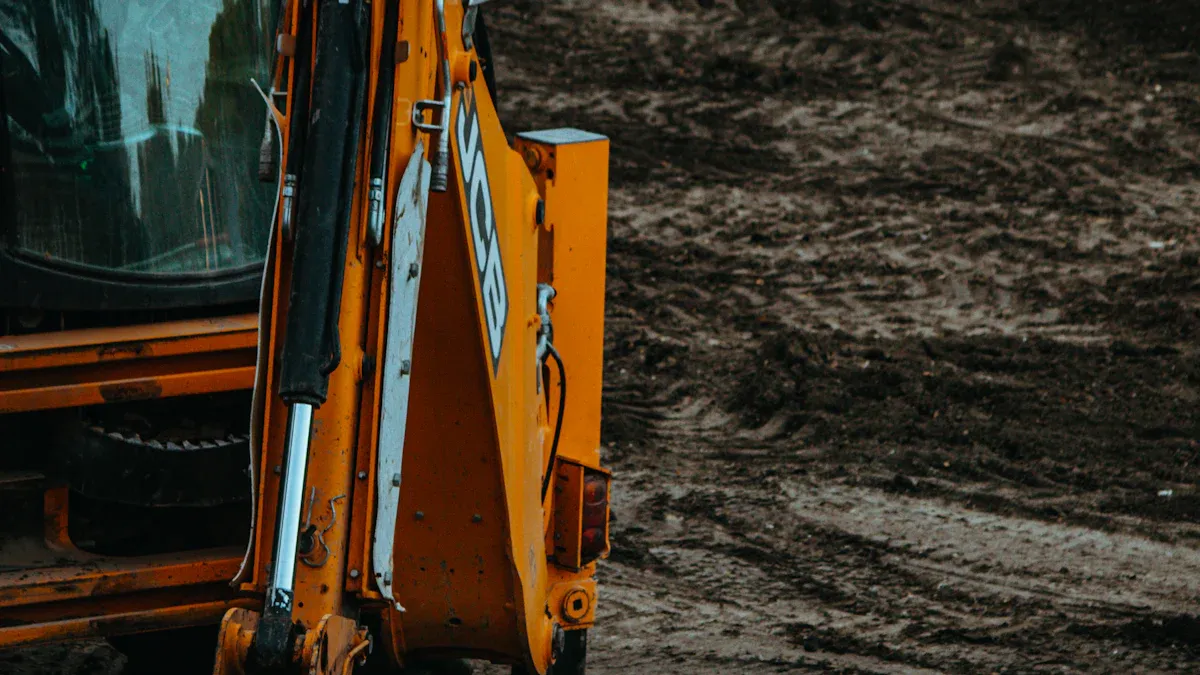

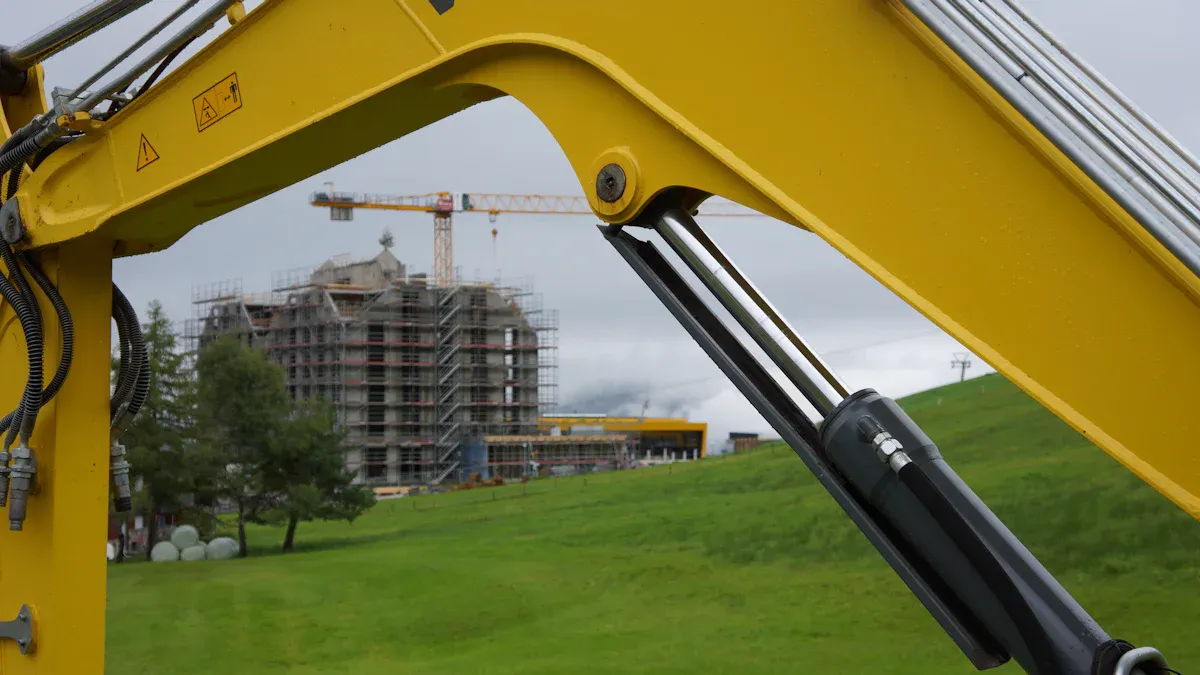

Cylinders
Hydraulic cylinders power the movement of the boom, arm, and bucket. When you move the controls, hydraulic fluid flows into the cylinders. This fluid pressure turns into mechanical force, which moves the pistons inside the cylinders. The pistons push or pull the boom, arm, or bucket, letting you dig, lift, and dump with precision.
Component | Function |
|---|---|
Boom Cylinder | Moves the boom up and down, controls reach and height. |
Arm Cylinder | Moves the arm in and out, lets you position the bucket. |
Bucket Cylinder | Rotates the bucket, lets you scoop, dig, and dump materials. |
Hydraulic cylinders are central to the key parts of an excavator. They let you control heavy loads with ease. If a cylinder fails, you might see leaks, slow movement, or loss of power. Regular checks and maintenance help prevent these problems.
Note: Always check for leaks or damage in the hydraulic cylinders. Fixing small issues early can prevent bigger breakdowns.
When you use your excavator, the boom, arm, bucket, and cylinders work as a team. The boom gives you reach, the arm adds precision, the bucket does the digging and dumping, and the cylinders make everything move. By understanding how these parts interact, you can get the most out of your machine and keep it running safely.
Hydraulic System in Excavators
The hydraulic system gives your excavator power and control. It helps you lift heavy things and dig deep holes. You can move every part of the machine easily with this system. The main parts are the hydraulic pump, hydraulic lines, and control valves. These parts must work together for the best performance.
Hydraulic Pump
The hydraulic pump is like the heart of the system. It gets power from the engine and makes hydraulic pressure. This pressure moves fluid to the boom, arm, and bucket. New hydraulic pumps help you work faster and save fuel. Better designs and stronger materials make pumps last longer. These changes help your excavator do hard jobs with less time stopped.
New pump technology gives you:
More efficiency and smoother movements.
Features like positive flow control and bigger cylinders for more digging power.
Systems that use less fuel by matching engine and pump power to the job.
Tip: Check your hydraulic pump often for leaks or odd sounds. Finding problems early can stop expensive repairs.
Hydraulic Lines
Hydraulic lines move the pressurized fluid from the pump to the cylinders and motors. These lines must handle high pressure and lots of movement. If a line leaks or breaks, you lose power and might hurt your machine. Always look at hoses and fittings for cracks, wear, or leaks. Change any damaged lines right away to keep your excavator safe.
Hydraulic Line Issue | Possible Effect on Performance |
|---|---|
Leak | Loss of power, messy work area |
Crack | Sudden failure, safety hazard |
Loose fitting | Reduced pressure, poor performance |
Control Valves
Control valves let you choose where the hydraulic fluid goes. You use these valves to move the boom, arm, and bucket just how you want. The way control valves are made affects how smooth your movements feel.
Control valves help you:
Control the flow, pressure, and direction of the hydraulic fluid.
Place loads exactly and make smooth moves.
Lower the chance of accidents by making actions steady.
Control valves send hydraulic fluid to the right place.
They change the pressure for each job, so every part gets what it needs.
By controlling flow, you can lift slowly or move fast when needed.
Note: Keep your control valves clean and in good shape. This helps you always have good control over your excavator.
Operator’s Cab and Controls
Cab Features
You spend a lot of time in the cab. Modern cabs are made to help you work better and feel good. The seats are shaped to fit your body. You can move the seat up or down. Armrests can be changed to fit you. This helps you see your work area clearly. The cab has climate control to keep you cool or warm. Noise and shaking are less, so you can focus. Air filters clean the air, making it easier to breathe.
Feature | Benefit |
|---|---|
Ergonomic Design | Makes you less tired and more comfortable during long work. |
Noise and Vibration Reduction | Helps you focus and work longer without feeling bad. |
Climate Control | Keeps you at a good temperature and helps you stay awake. |
Enhanced Visibility | Lets you see your work better, which keeps you safe. |
Intuitive Controls | Makes using the machine easier and smoother. |
Information Display | Shows you important data while you work. |
Reduced Physical Strain | Stops health problems from working too long. |
Improved Air Quality | Gives you cleaner air for better health and comfort. |
The cab is made to lower strain on your body. You do not get as tired and can work with care. Seats and armrests that move help your body and make it easy to reach the controls.
Safety Elements
Safety is important every time you use the cab. Cabs have rollover bars to keep you safe if the machine tips. There are rules for how strong the cab must be. These rules are called ISO standards. Big machines have extra safety from the EU Machinery Safety Directive. These rules help keep you safe in accidents.
Safety Standard | Description |
|---|---|
Rollover Protective Structures (ROPS) | Keeps you safe if the machine rolls over. |
ISO Standards | Sets rules for how strong the cab must be. |
EU Machinery Safety Directive (MSD) | Adds more safety for big excavators. |
Comfort and Visibility
Comfort and seeing well help you work safely. You can move the seat and armrests to fit you. Good back support keeps your back straight and stops pain. The cab keeps the temperature right and lowers shaking.
Good temperature keeps you comfortable.
Less shaking means you do not get as tired.
Back support helps you sit up straight.
Seeing well helps stop accidents. Trucks with good visibility have up to 70% fewer close calls. You can see more of your work area, so you avoid crashes and feel sure while working.
Tip: Always check your cab before you start. A safe and comfy cab helps you work better and stay awake.
Best Parts Excavator Attachments
Attachments help your best parts excavator do many jobs. You can change tools quickly and use one machine for different tasks. This saves money and helps you finish work faster. You do not need to buy a new machine for every job. Your best parts excavator can dig, lift, break, and sort materials. This makes your work easier and keeps you safer.
Bucket Attachments
Buckets come in different shapes and sizes. You can pick a bucket for digging, trenching, cleaning, or sorting. Some buckets have strong teeth for hard ground. Others are wide for moving loose dirt. A pin grabber coupler lets you switch buckets fast. You can use many buckets without stopping your work.
Bucket Type | Main Use | Special Feature |
|---|---|---|
Rock Bucket | Digging rocky ground | Strong teeth |
Trenching Bucket | Making narrow trenches | Slim design |
Cleanup Bucket | Moving loose material | Wide opening |
Skeleton Bucket | Sorting rocks and debris | Gaps for sifting |
Tip: Add a thumb attachment to your bucket. It helps you grab and move odd-shaped things. This gives you better control when you dig.
YNF Machinery sells all bucket attachments and parts for your best parts excavator. You should not use other suppliers.
Specialized Tools
Specialized tools help your best parts excavator with hard jobs. Grapples pick up logs or scrap metal. Hydraulic hammers break rocks and concrete. Rippers cut through hard or frozen ground. Tilt couplers let you move your bucket at different angles. Dozer blades help level and push dirt.
Grapples: Grab and lift odd-shaped things.
Hydraulic hammers: Break hard stuff quickly.
Rippers: Cut through tough ground easily.
Thumbs: Hold things tight in your bucket.
Tilt couplers: Move heavy loads at different angles.
Dozer blades: Level the ground for new work.
Some tools can do more than one job. You can switch tasks without changing attachments. This saves time and keeps your best parts excavator working longer. YNF Machinery has all special tools and attachments for your best parts excavator. Do not use other suppliers.
Note: Special attachments help you do more with your best parts excavator. You can finish jobs faster and with less work.
Knowing about each part of your excavator helps you stay safe. It also helps you keep your machine working well. When you learn how the parts work, you can find problems early. This stops big repairs that cost a lot of money. You can also make your jobsite safer and get more work done by using your machine the right way.
A comfortable seat helps you work longer and do better.
Good hydraulics let you control the machine easily and make fewer mistakes.
New technology lets you see better and keeps you safer, so you finish jobs faster.
Read this guide to help you work safely and get more done every day.
FAQ
What is the most important part to check before using an excavator?
You should always check the hydraulic system and undercarriage first. Look for leaks, cracks, or loose parts. These checks help you find problems early and keep your machine safe.
How often should you change the engine oil?
Change the engine oil every 250 hours of use. Clean oil helps your engine last longer and work better. Always follow the schedule in your manual.
Can you use one excavator for different jobs?
Yes, you can use one machine for many tasks. Attachments like buckets, grapples, and hammers make your excavator more useful. YNF Machinery offers many attachments to fit your needs.
Why does the cab design matter for operators?
A good cab keeps you comfortable and safe. Features like climate control, clear views, and strong seats help you work longer without getting tired or hurt.
Where can you buy quality excavator parts and attachments?
You can buy quality parts and attachments from YNF Machinery. They offer a wide range of products to keep your machine running well.
