Understanding the Main Parts of an Excavator

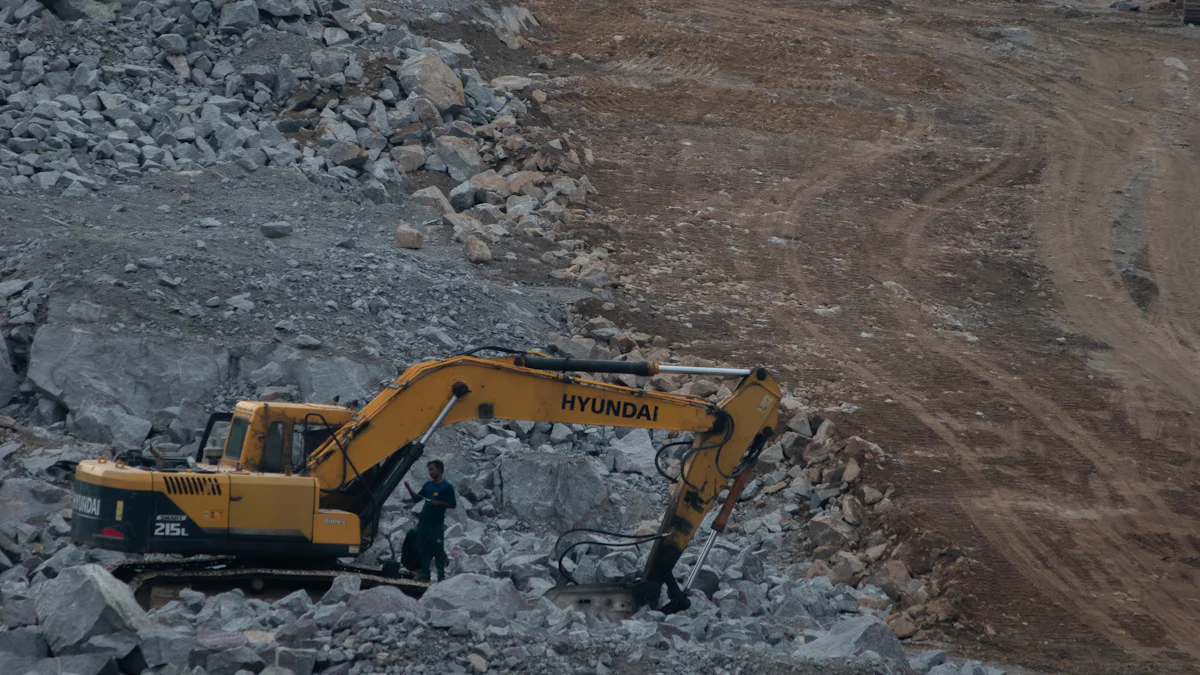

An excavator is a powerful and versatile machine that plays a vital role in industries like construction, mining, and demolition. Understanding the main parts of an excavator is essential for ensuring its efficient operation and long-term maintenance. Each component, from the undercarriage to the hydraulic system, contributes to its performance. To keep these key parts of excavator in top condition, you need reliable parts. YNF Machinery, with over 35 years of expertise, provides high-quality excavator parts, including engine parts and couplings, ensuring your machine operates at peak efficiency.

Key Takeaways

• Familiarize yourself with the main parts of an excavator, including the undercarriage, house, boom, arm, and bucket, to enhance operational efficiency.

• Regular maintenance of the undercarriage, including tracks and the track frame, is crucial for stability and longevity, especially in challenging terrains.

• The operator’s cab is designed for comfort and safety, featuring controls that allow for precise operation; investing in ergonomic features can reduce fatigue during long hours.

• Understanding the hydraulic system, including cylinders and pumps, is essential for smooth operation; regular inspections can prevent costly downtime. Utilize attachments like quick couplers and specialized tools to maximize your excavator’s versatility and productivity on various job sites.

• Mastering joystick controls and monitoring systems enhances precision in operations, ensuring safe and effective use of the excavator. Choose high-quality parts from trusted suppliers like YNF Machinery to ensure your excavator operates at peak performance and to extend its lifespan.

The Undercarriage: Foundation of an Excavator

The undercarriage forms the base of an excavator, providing both stability and mobility. It supports the machine’s weight and ensures smooth movement across various terrains. Understanding its components helps you maintain the excavator’s performance and extend its lifespan.

Tracks and Wheels

Tracks: Provide stability and mobility on uneven terrain.

Tracks are essential for excavators operating on rugged or uneven surfaces. Made from heavy-duty steel or steel-reinforced rubber, they allow the machine to move efficiently without losing balance. Each track consists of interconnected plates, connected by pins, which run over rollers. This design ensures durability and flexibility, enabling the excavator to navigate through mud, gravel, or rocky ground with ease.

Wheels: Used in wheeled excavators for faster movement on flat surfaces.

Some excavators use wheels instead of tracks. These wheeled models excel on flat, hard surfaces, offering faster movement and greater maneuverability. While they lack the traction of tracks on rough terrain, their speed and efficiency make them ideal for urban construction sites or paved areas.

Track Frame

Supports the tracks and connects them to the rest of the excavator.

The track frame acts as the backbone of the undercarriage. It holds the tracks in place and connects them to the upper structure of the excavator. This sturdy frame ensures that the tracks remain aligned and function properly, even under heavy loads or challenging conditions. Regular inspection of the track frame helps you identify wear and tear, ensuring the excavator remains stable during operation.

Blade

Assists in leveling and stabilizing the excavator during operation.

The blade, often located at the front of the undercarriage, serves multiple purposes. It helps level the ground, clear debris, and stabilize the excavator while digging or lifting heavy loads. By using the blade effectively, you can enhance the machine’s precision and safety during tasks. Proper maintenance of the blade ensures consistent performance and reduces the risk of operational issues.

The House: Central Hub of an Excavator

The house of an excavator serves as the central hub, housing critical components that ensure the machine operates efficiently. It connects the undercarriage to the working parts and provides a stable platform for the operator and essential systems.

Operator’s Cab

Contains controls, displays, and seating for the operator.

The operator’s cab is your command center. It contains all the controls, displays, and seating you need to operate the excavator effectively. Modern cabs prioritize comfort and safety. Adjustable seats, air conditioning, and sound insulation reduce fatigue during long hours of operation. The cab also functions as a Roll-Over Protective Structure (ROPS), protecting you from potential hazards. Large windows provide maximum visibility, allowing you to monitor the surroundings and work area with ease. Joystick and foot pedal controls keep your hands and feet engaged, offering precise control over the excavator’s movements.

Counterweight

Balances the excavator to prevent tipping during heavy lifting.

The counterweight plays a crucial role in maintaining the excavator’s stability. It prevents tipping when you lift or move heavy loads. Positioned at the rear of the house, the counterweight offsets the weight of the boom, arm, and bucket. This balance ensures safe operation, even when handling challenging tasks. Regular inspection of the counterweight helps you identify any damage or wear, ensuring it continues to perform its function effectively.

Engine and Excavator Engine Parts by YNF Machinery

Powers the excavator and its hydraulic system, ensuring reliable performance.

The engine is the powerhouse of the excavator. It generates the energy needed to power the hydraulic system and other components. Diesel engines are commonly used due to their efficiency and durability. To keep your excavator running smoothly, high-quality engine parts are essential. YNF Machinery offers a wide range of reliable excavator engine parts, including pistons, cylinders, and turbochargers. These parts are designed to withstand harsh conditions and ensure optimal performance. By choosing durable components from YNF Machinery, you can reduce downtime and extend the lifespan of your machine.

The Boom, Arm, and Bucket: Core Working Parts of Excavator

The boom, arm, and bucket form the core working parts of an excavator. These components work together seamlessly to perform essential tasks like digging, lifting, and moving materials. Understanding their roles and functions helps you maximize the efficiency of your machine.

Boom

The primary arm that extends from the house to provide reach.

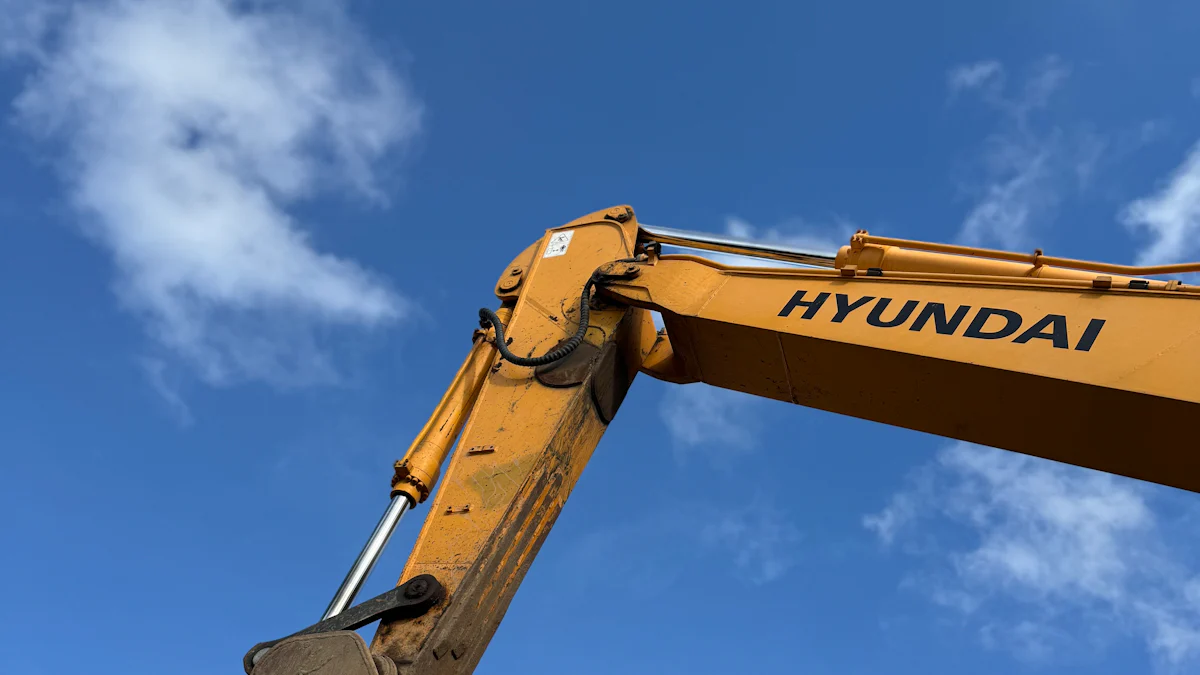

The excavator boom is the long, extendable arm that connects to the house of the machine. It provides the reach needed for digging and lifting operations. Made from durable steel, the boom withstands heavy loads and extreme stress during operation. Its hydraulic movement allows you to extend or retract it with precision, giving the excavator its signature digging range. Whether you’re working on a construction site or in a mining operation, the boom ensures you can handle tasks efficiently and effectively.

Arm (Stick)

Connects the boom to the bucket and provides additional reach and flexibility.

The excavator arm, also known as the stick or dipper, links the boom to the bucket. This component adds flexibility and reach, enabling you to dig deeper or lift materials higher. The length of the arm determines the depth and range of your excavator’s digging capabilities. By controlling the arm’s movement, you can position the bucket accurately for various tasks. Its robust design ensures reliable performance, even under challenging conditions.

Bucket

Used for digging, scooping, and moving materials.

The bucket is the attachment at the end of the arm that performs the actual digging and material handling. It comes in various shapes and sizes, depending on the task. Digging buckets are ideal for breaking through soil, while grading buckets help level surfaces. The bucket’s teeth enhance its ability to penetrate tough materials like rock or compacted soil. By selecting the right bucket for your needs, you can improve productivity and achieve precise results.

The Hydraulic System: Powering the Main Parts of an Excavator

The hydraulic system is the lifeblood of your excavator, powering its essential functions and ensuring smooth operation. This system transforms hydraulic energy into mechanical motion, enabling precise control over the machine’s movements. Understanding its components helps you maintain efficiency and avoid costly downtime.

Hydraulic Cylinders

Control the movement of the boom, arm, and bucket.

Hydraulic cylinders play a critical role in controlling the excavator’s movements. These cylinders convert hydraulic pressure into linear motion, allowing you to extend, retract, or pivot the boom, arm, and bucket with precision. Each cylinder is designed to handle immense pressure, ensuring reliable performance even under heavy loads. Regular inspection and maintenance of these cylinders help prevent leaks and maintain their efficiency. By keeping them in top condition, you ensure that your excavator operates smoothly and responds accurately to your commands.

Hydraulic Pump

Generates the pressure needed to power the hydraulic system.

The hydraulic pump is the heart of the hydraulic system.

Hydraulic Lines

Transport hydraulic fluid to various components.

Hydraulic lines act as the veins of the hydraulic system, transporting pressurized fluid to different parts of the excavator. These lines connect the pump, cylinders, and other components, ensuring seamless communication within the system. High-quality hydraulic lines are built to withstand extreme pressure and harsh conditions. Regularly inspecting these lines for wear, cracks, or leaks helps you avoid sudden failures. Maintaining clean and intact hydraulic lines ensures efficient fluid flow, which is vital for the optimal performance of your hydraulic excavator.

A well-maintained hydraulic system not only enhances the efficiency of your excavator but also reduces operational costs and downtime.

By understanding and caring for the hydraulic system, you ensure that your excavator remains a reliable and powerful tool for your projects.

The Slewing System: Enabling 360-Degree Rotation

The slewing system is a vital component of an excavator, enabling the upper structure, or house, to rotate a full 360 degrees. This capability allows you to perform tasks with greater flexibility and precision, especially in confined spaces or when handling materials in multiple directions. Understanding the key parts of the slewing system ensures smooth operation and helps you maintain its efficiency.

Slew Ring

Allows the house to rotate 360 degrees for greater flexibility.

The slew ring, also known as the swing bearing, connects the excavator’s house to its undercarriage. This critical component facilitates the seamless rotation of the house on the track assembly. It supports high dynamic loads, including axial, radial, and tilting forces, ensuring stability during operation. The slew ring’s robust design allows it to handle the immense stress generated by the excavator’s movements, making it indispensable for tasks requiring precision and strength.

Slewing rings are engineered to perform both oscillating (slewing) and continuous rotating movements. Their ability to accommodate loads from multiple directions enhances the excavator’s versatility. Regular inspection and lubrication of the slew ring help prevent wear and ensure consistent performance. By maintaining this component, you can avoid costly downtime and keep your machine operating at peak efficiency.

“A well-maintained slew ring ensures smooth and reliable rotation, enhancing the overall productivity of your excavator.”

Slew Motor

Powers the rotation of the house.

The slew motor, along with the swing drive, provides the power needed for the house’s 360-degree rotation. This motor converts hydraulic energy into mechanical motion, enabling controlled and precise movement. The swing drive works in tandem with the slew motor to ensure smooth and efficient rotation, even under heavy loads or challenging conditions.

The slew motor’s design prioritizes durability and reliability. It ensures that the excavator can rotate effortlessly, allowing you to position the boom, arm, and bucket accurately for various tasks. Regular maintenance of the slew motor, including checking for leaks and ensuring proper hydraulic pressure, is essential for uninterrupted operation. By keeping the slew motor in top condition, you enhance the excavator’s performance and extend its lifespan.

“The combination of a powerful slew motor and a durable slew ring provides the flexibility and precision needed for demanding excavation tasks.”

Attachments and Accessories: Enhancing the Versatility of Excavators

Attachments and accessories transform your excavator into a multi-functional machine, enabling it to tackle a wide range of tasks. By equipping your excavator with the right tools, you can boost productivity and adapt to various job site requirements. Understanding these components ensures you make the most of your machine’s capabilities.

Quick Coupler

Enables fast switching between different attachments.

A quick coupler is an essential tool for modern excavators. It allows you to switch between attachments quickly and efficiently, minimizing downtime. With a quick coupler, you can transition from digging with a bucket to breaking concrete with a hydraulic hammer in seconds. This feature enhances your workflow and keeps your projects on schedule.

Investing in this accessory improves efficiency and reduces operational delays, allowing you to enhance versatility on the job site.

“Quick couplers are game-changers for excavators, offering speed and versatility on the job site.”

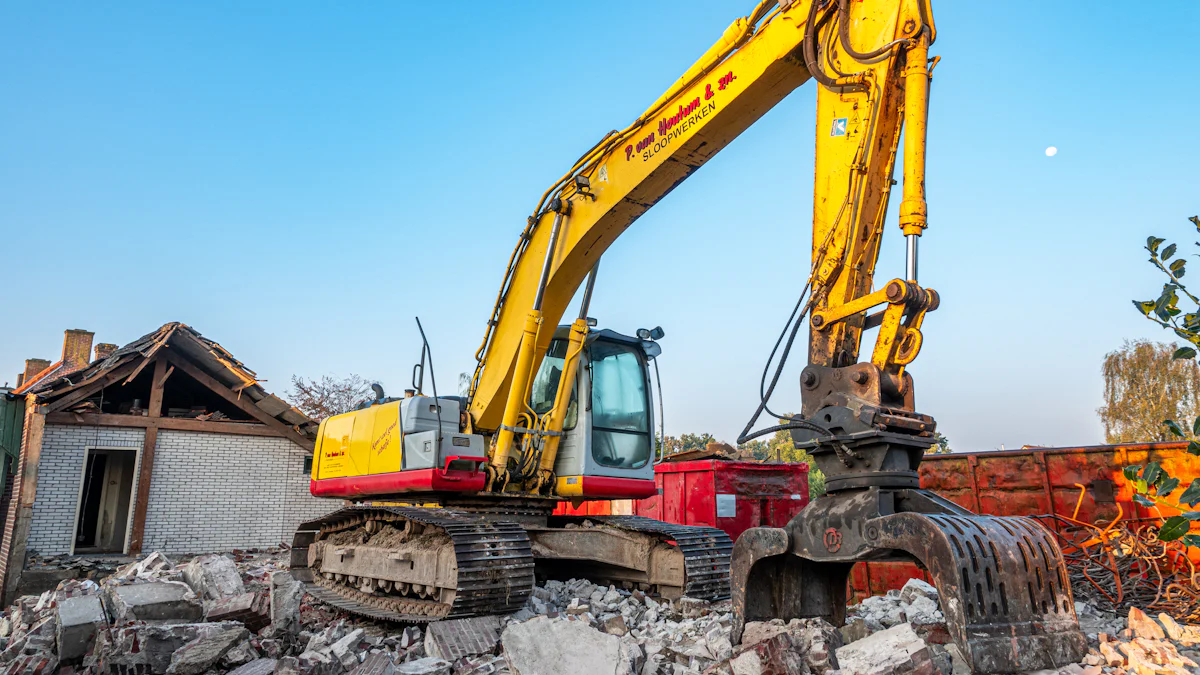

Specialized Attachments

Examples include grapples, hammers, and augers for specific tasks.

Specialized attachments expand the functionality of your excavator, allowing it to perform tasks beyond digging. These tools cater to specific needs, making your machine more versatile and valuable. Here are some common attachments and their uses:

• Hydraulic Hammers: Break through concrete, asphalt, or rock with ease. Ideal for demolition projects.

• Grapples: Handle materials like logs, scrap metal, or debris efficiently. Perfect for recycling or forestry tasks.

• Augers: Drill precise holes for fencing, foundations, or landscaping projects.

• Shears: Cut through steel or other tough materials during demolition or recycling operations.

• Tilt Buckets: Achieve precise grading and shaping by adjusting the bucket’s angle.

Each attachment serves a unique purpose, enhancing your excavator’s adaptability. For example, a grading bucket helps level surfaces, while a clamshell bucket excels at loading materials. By selecting the right attachment, you can complete tasks faster and with greater precision.

“Attachments unlock the full potential of your excavator, turning it into a versatile powerhouse.”

Investing in a variety of attachments ensures you are prepared for any challenge. Quick coupler systems make swapping these tools effortless, further enhancing your machine’s efficiency. With the right combination of accessories, your excavator becomes an indispensable asset on any job site.

Control Systems: Precision in Operating Different Parts of an Excavator

Control systems are the backbone of an excavator’s operation, ensuring precision and efficiency in every movement.

Joystick Controls

Allow the operator to control the movement of the boom, arm, and bucket.

Joysticks are the primary tools for controlling an excavator’s movements. Located within the operator’s cab, these controls let you maneuver the boom, arm, and bucket with precision. Each joystick typically manages specific functions. For example, one joystick may control the boom’s up-and-down motion, while the other adjusts the arm and bucket. This intuitive design keeps your hands engaged, allowing you to perform complex tasks with minimal effort.

Modern excavators often feature electronically assisted joysticks. These advanced systems reduce the physical strain on operators and improve accuracy. With just a slight movement of the joystick, you can execute precise actions, such as digging trenches or lifting heavy loads. Proper training on joystick usage ensures you can maximize the excavator’s capabilities while maintaining safety on the job site.

“Mastering joystick controls is essential for achieving precision and efficiency in excavator operations.”

Monitoring Systems

Provide real-time data on the excavator’s performance and condition.

Monitoring systems play a crucial role in keeping your excavator running smoothly. These systems display real-time data about the machine’s performance, including engine status, hydraulic pressure, and fuel levels. By keeping an eye on these indicators, you can identify potential issues before they escalate, reducing downtime and maintenance costs.

Many modern excavators come equipped with advanced monitoring systems that offer additional features. For instance, some systems provide alerts for scheduled maintenance or warnings about overheating components. These features help you stay proactive in maintaining the excavator’s health. Clear and easy-to-read displays ensure you can access critical information without distraction, allowing you to focus on the task at hand.

“A reliable monitoring system acts as your excavator’s health tracker, ensuring optimal performance and longevity.”

By mastering the control systems, including joysticks and monitoring tools, you can operate your excavator with greater precision and confidence. These systems not only enhance your efficiency but also contribute to the machine’s overall safety and reliability.

Excavator Couplings by YNF Machinery: Ensuring Efficient Power Transmission

Excavator couplings play a vital role in ensuring the smooth operation of your machine. These components connect the engine to the hydraulic pump system, enabling efficient power transmission. Without reliable couplings, the excavator’s performance can suffer, leading to downtime and costly repairs. By understanding their function and choosing high-quality options, you can maintain your equipment’s efficiency and longevity.

Role of Excavator Couplings

Connect the engine to the hydraulic pump system for smooth operation.

Couplings act as the link between the engine and the hydraulic pump system. They transfer rotational energy from the engine to the pump, powering the hydraulic system that drives the excavator’s core functions. This connection must remain stable and efficient to ensure consistent performance. High-quality couplings also absorb vibrations and compensate for minor misalignments, protecting the engine and pump from excessive wear.

For example, YNF Machinery offers durable couplings designed to withstand the demanding conditions of heavy machinery. These couplings ensure smooth power transmission, reducing the risk of mechanical failure. Regular inspection and maintenance of your couplings can further enhance their performance, keeping your excavator running at peak efficiency.

“Reliable couplings are the backbone of an excavator’s hydraulic system, ensuring seamless operation and reduced downtime.”

Types of Excavator Couplings

Centaflex-A, Centaflex-H, and other models for various applications.

Different types of couplings cater to various operational needs. YNF Machinery provides a wide range of options, including Centaflex-A and Centaflex-H models. These couplings are known for their flexibility, durability, and ability to handle high torque loads.

• Centaflex-A Couplings: These flexible couplings, such as the CF-A-140 Rubber Coupling, are ideal for applications requiring vibration isolation and misalignment compensation.

• Centaflex-H Couplings: These couplings offer enhanced flexibility and are suitable for high-performance tasks. They provide reliable power transmission while minimizing stress on connected components.

Investing in high-quality couplings not only improves efficiency but also extends the lifespan of your machine.

“Choosing the right coupling ensures optimal performance and protects your excavator’s critical components.”

By understanding the role and types of excavator couplings, you can make informed decisions to enhance your machine’s reliability. With YNF Machinery’s expertise and product range, you gain access to top-tier solutions that keep your equipment operating smoothly.

Understanding the different parts of an excavator is essential for safe and efficient operation. Each component, from the undercarriage to the dipper, plays a vital role in ensuring the machine performs its tasks effectively. By familiarizing yourself with these important parts of excavators, you can enhance productivity and reduce downtime. To keep the parts of excavator in optimal condition, rely on trusted suppliers like YNF Machinery. Their high-quality excavator engine parts and couplings ensure durability and longevity, helping your equipment operate at peak performance.
